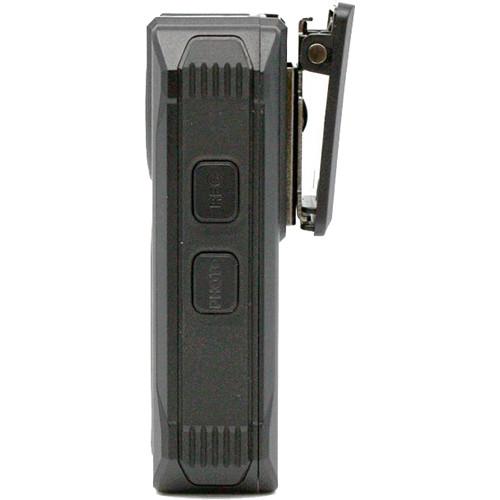

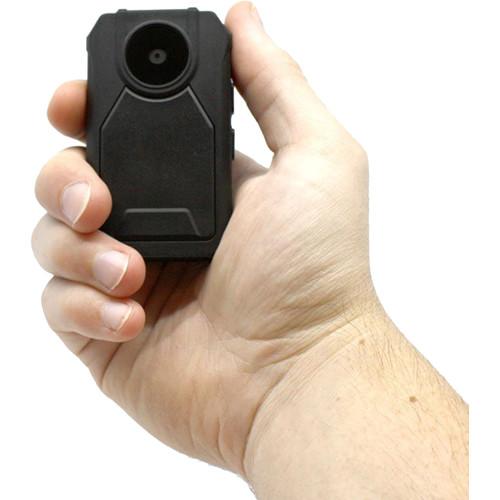

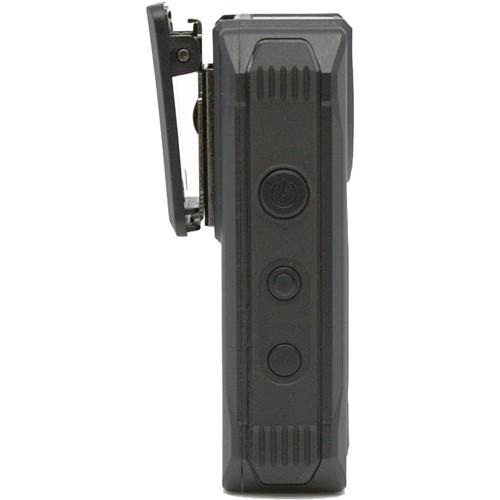

User Manual for LawMate PV-50HD2W 1080p Body-Worn Pinhole Camera with Wi-Fi Click to enlarge the picture
Contents of the user manual for the LawMate PV-50HD2W 1080p Body-Worn Pinhole Camera
- Product category: Body Cameras LawMate
- Brand: LawMate
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for LawMate Body Cameras
 |
User manual for the LawMate PV-50HD2W 1080p Body-Worn Pinhole Camera contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any LawMate product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official LawMate user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a LawMate product will considerably shorten its lifespan!
|
Product description Capture high-quality, 1080p video discreetly and hands-free with the PV-50HD2W 1080p Body-Worn Pinhole Camera from LawMate. This body camera features a 78° field of view and has the ability to take snapshots with the touch of a button for quick image capture. The camera has a built-in battery for up to 200 minutes of use and comes with a 16GB microSD card to store recorded videos and photos. Download the free mobile app for iOS and Android devices to save videos, photos, and audio recordings. - Video control, record, and playback via PV Cam Viewer app
- LED indicators for easy status check

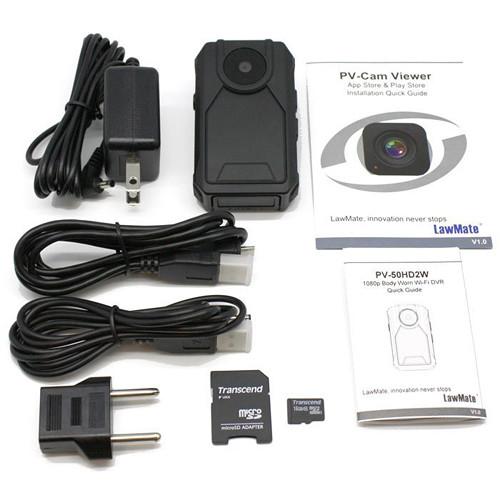

UPC: 703624459284 In the Box LawMate PV-50HD2W 1080p Body-Worn Pinhole Camera with Wi-Fi 16GB microSD Card USB Cable Charger EU Plug Adapter USB Charging Cable Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the LawMate PV-50HD2W 1080p Body-Worn Pinhole Camera with Wi-Fi in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLawMate PV-50HD2W Specs | CMOS Sensor | 1/2.9" progressive scan CMOS sensor | | Sensor Resolution | 2000 x 1121 | | Lens | 4.6mm | | Field of View | 78° | | Minimum Illumination | 0.03 lux at f/2.0 | | Video Resolution | 1080p, 720p, WVGA at 30 fps | | Video Compression | H.264, MOV | | Photo Resolution | 5 MP | | Photo Compression | JPEG | | Audio Input | Built-in microphone | | USB Port | Mini-USB 2.0 | | Time Stamp | YYYY.MM.DD | | Power Consumption | Wi-Fi Off: 260 to 300 mA | | Charging Time | 180 minutes | | Battery Type | 3.7 VDC, 1400 mA | | Battery Life | Up to 200 minutes continuous recording with Wi-Fi on | | Recording Time | Up to 160 minutes at 1080p | | Wi-Fi | Built-in Wi-Fi Module | | Memory Type | 16 GB microSD card included, supports up to 32 GB | | Dimensions | 3.1 x 1.8 x 0.8" (8 x 4.5 x 2 cm) |
