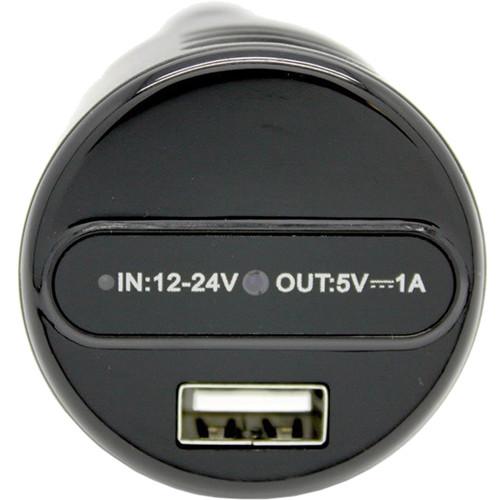

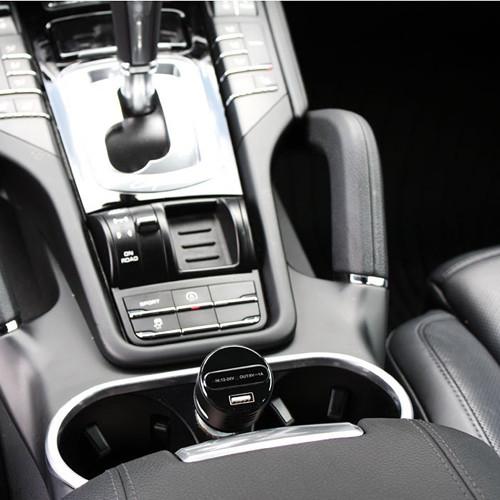

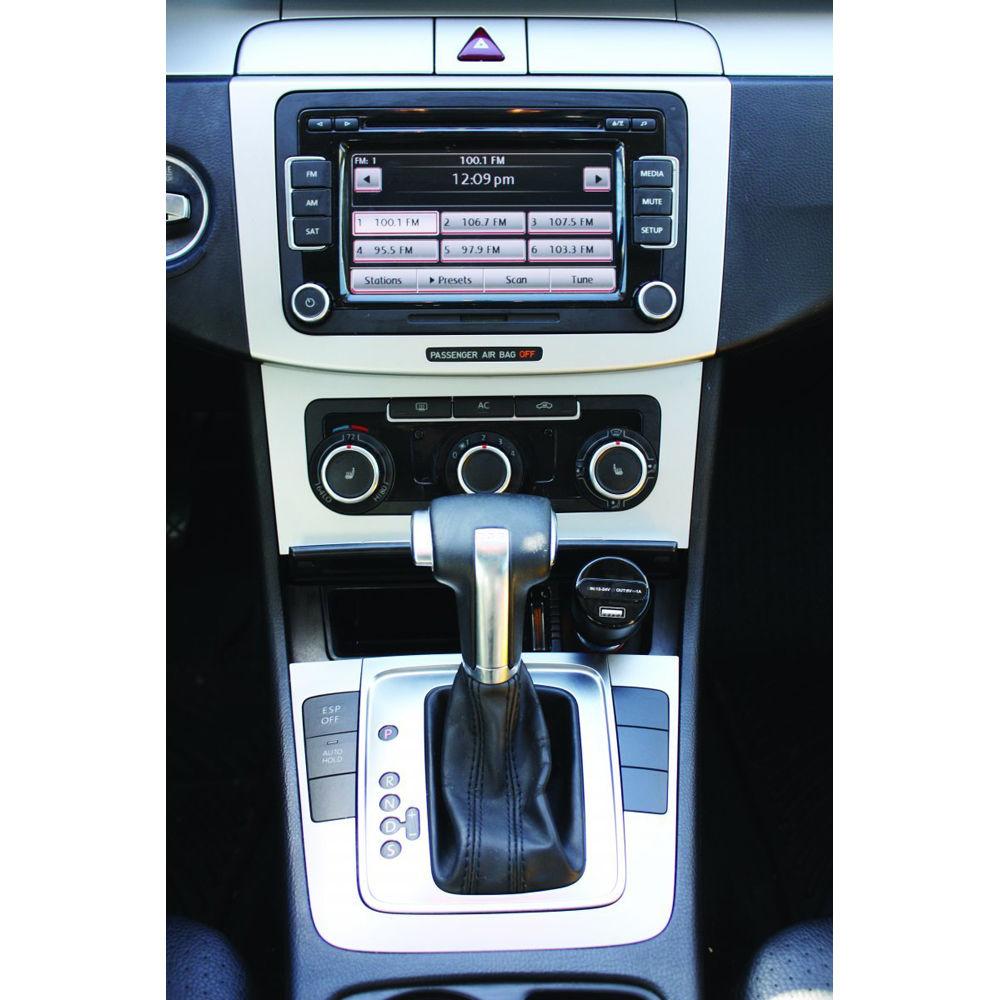

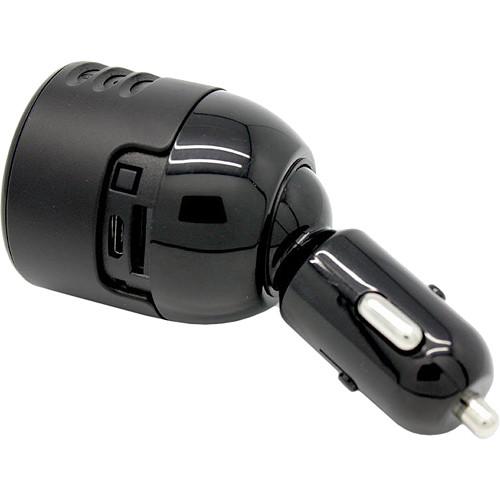

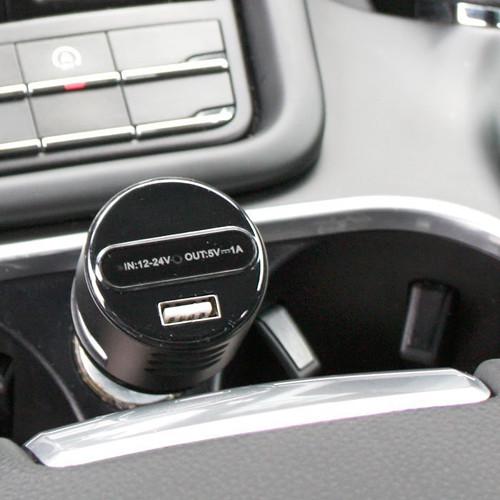

Product description The PV-CG20 Car Charger Adapter with 1080p Covert Camera & DVR from LawMate is a hidden camera and DVR disguised as a car charger. This covert device has a 1/2.9" progressive scan Sony CMOS sensor to capture 1920 x 1080 resolution video at up to 30 fps. IR illumination enables low-light recording in the vehicle's cabin. The 4.6mm lens delivers a 78.2° field of view. H.264 video compression manages file sizes, while maintaining the best video quality possible. The rechargeable lithium-ion polymer battery provides up to 20 minutes of continuous recording when the vehicle isn't supplying power. A built-in card slot supports microSD cards up to 64GB. A 16GB microSD card is included. - Suitable for covert surveillance in vehicles
- Adjustable camera lens that can be rotated, panned, or tilted in the direction you want monitored
- Recording commences when car is started, and recorded footage is automatically saved to microSD card when the car is turned off

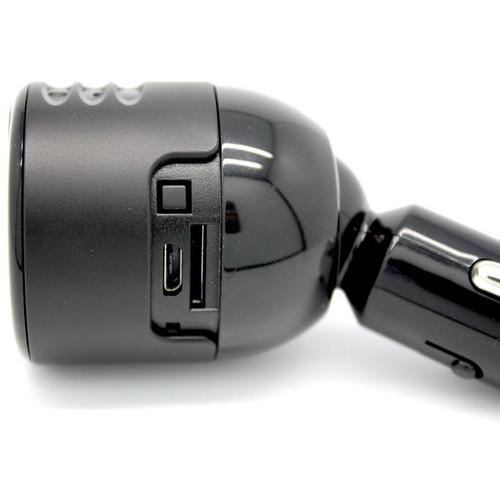

- Choose to hide memory slot and buttons
- Power out ports can simultaneously charge multiple devices

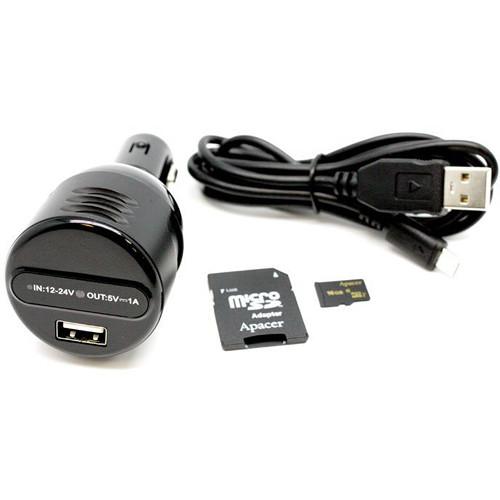

UPC: 703624459727 In the Box LawMate PV-CG20 Car Charger Adapter with 1080p Covert Camera & DVR 16GB microSD Card Mini-USB Cable Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the LawMate PV-CG20 Car Charger Adapter with 1080p Covert Camera & DVR in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLawMate PV-CG20 Specs | Image Sensor | 1/2.9" Sony CMOS | | Scanning System | Progressive | | Resolution | 2000 x 1121 | | Video Recording Resolution | 1920 x 1080 | | Frame Rate | Up to 30 fps | | Lens | 4.6mm fixed | | Aperture | f/2.0 | | Field of View | 78.2° | | IR Illumination | Yes | | Minimum Illumination | 0.1 lux at f/2.0 (50 IRE) | | Recording Mode | Manual | | File Formats | MOV, JPEG | | Video Compression | H.264 | | Date & Time Stamp | Yes | | Interface | Mini-USB 2.0 | | Storage | Supports microSD cards up to 64 GB, 16 GB card included | | Battery Type | Lithium-ion polymer | | Battery Power | 3.7 VDC / 130 mA | | Battery Life | 20 minutes | | Power Input | 12 to 24 VDC | | Power Output | 1.1 A | | Power Consumption | 260 to 300 mA with IR off
330 mA with IR on | | Dimensions | 3.74 x 1.6 x 1.6" / 9.5 x 4 x 4 cm | | Weight | 2 oz / 57 g | | | | Package Weight | 0.49 lb | | Box Dimensions (LxWxH) | 6.0 x 4.95 x 2.55" |
