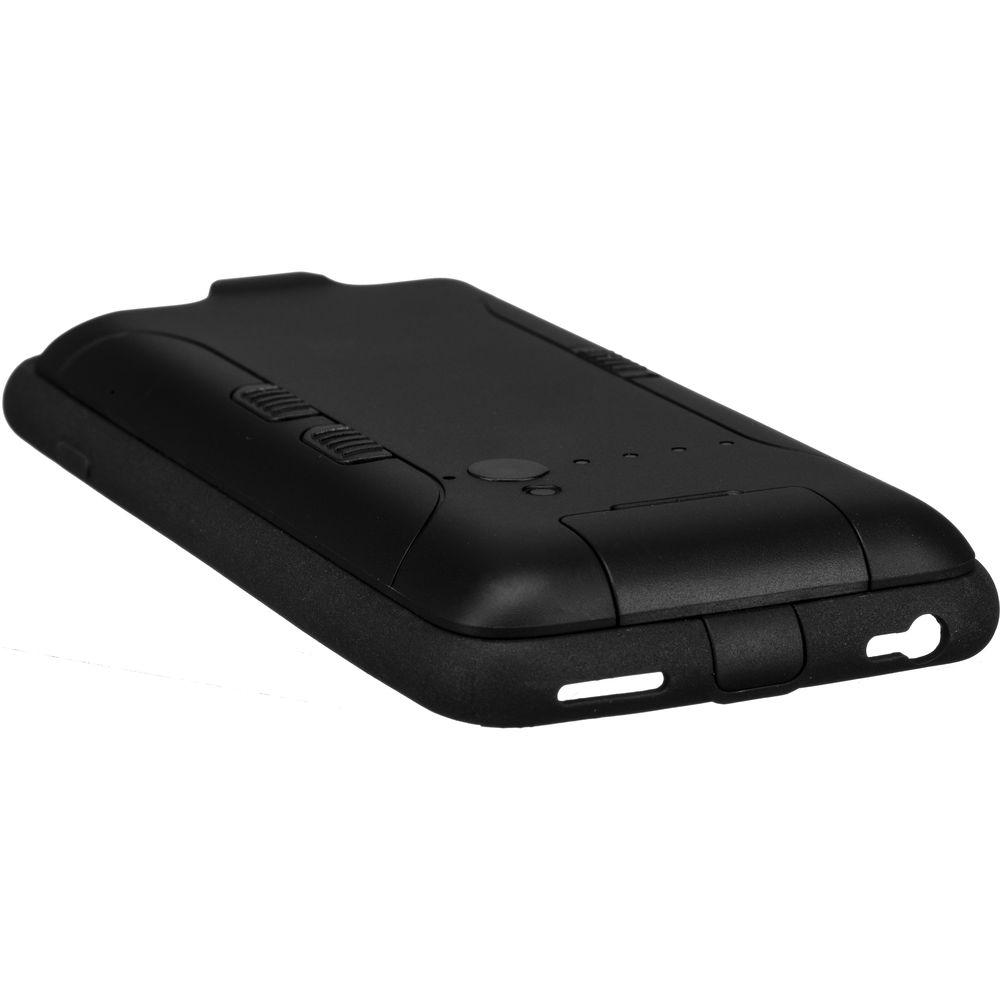

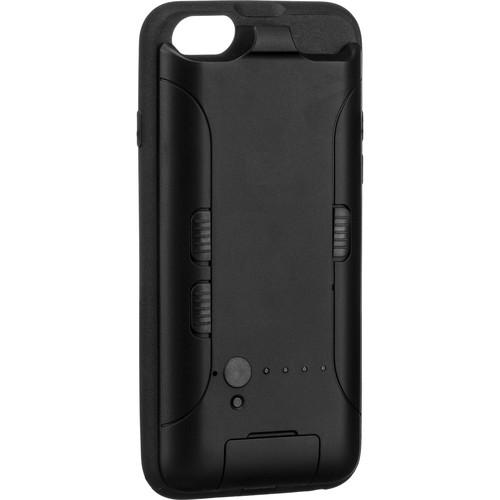

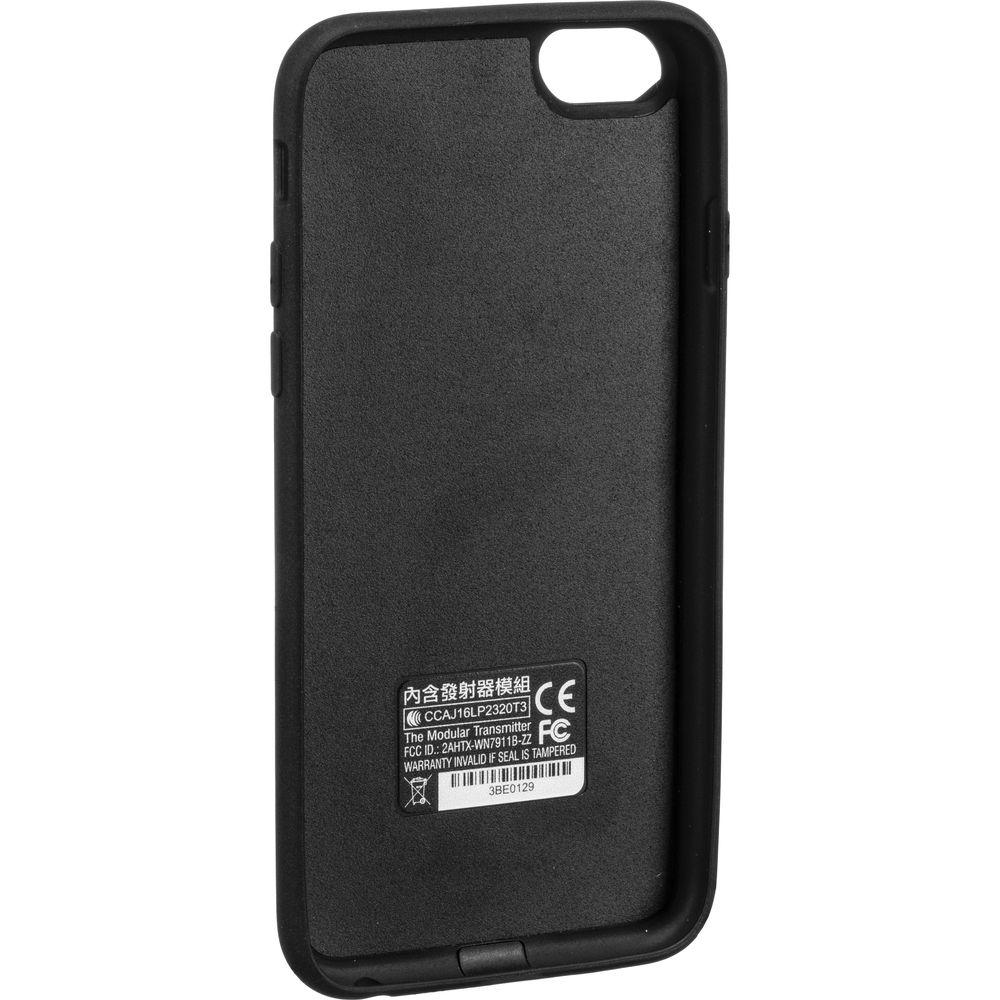

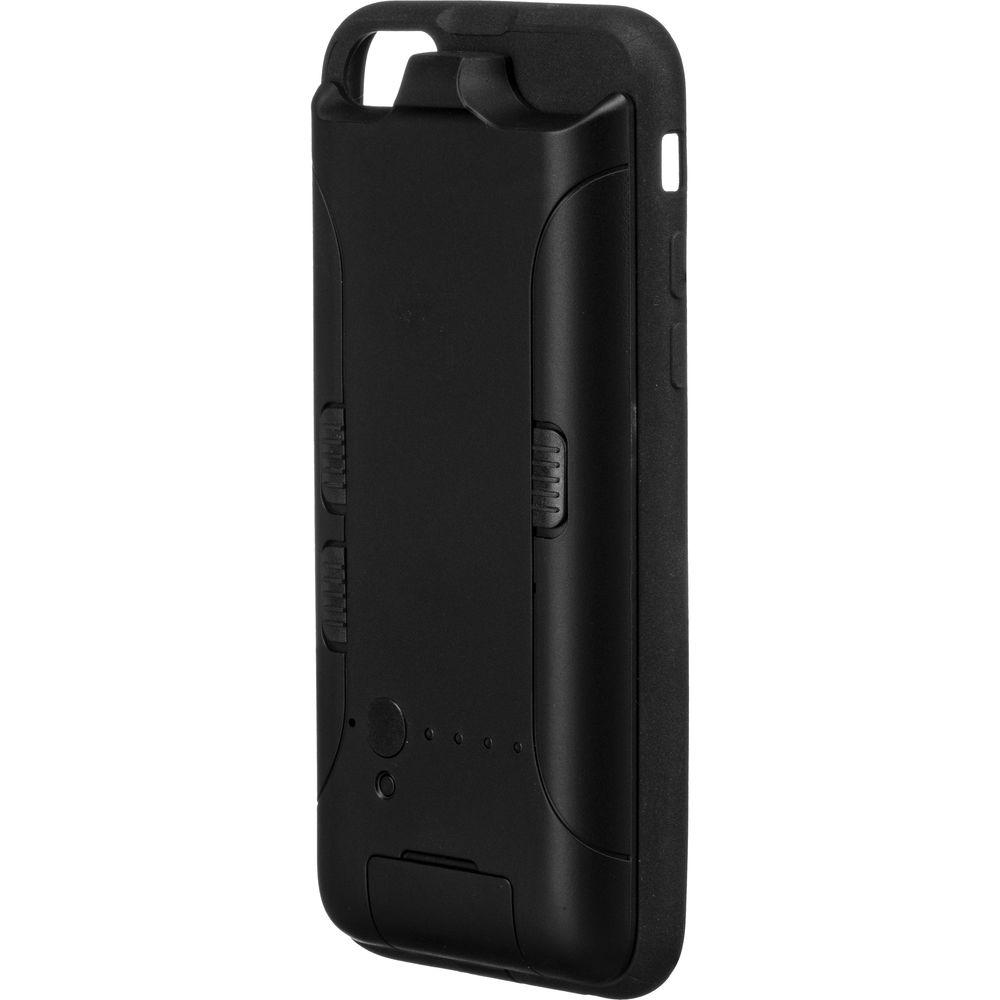

User Manual for LawMate PV-IP7IW iPhone 7 Battery Case with 1080p Wi-Fi Covert Camera & DVR Click to enlarge the picture
Contents of the user manual for the LawMate PV-IP7IW iPhone 7 Battery Case
- Product category: Hidden Cameras LawMate
- Brand: LawMate
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for LawMate Hidden Cameras
 |
User manual for the LawMate PV-IP7IW iPhone 7 Battery Case contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any LawMate product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official LawMate user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a LawMate product will considerably shorten its lifespan!
|
Product description The PV-IP7IW iPhone 7 Battery Case with 1080p Wi-Fi Covert Camera & DVR from LawMate uses a 1/3" progressive scan CMOS sensor to capture up to 1920 x 1080 resolution video at 30 fps. This covert Wi-Fi device can capture still images at 2MP. The 4mm fixed lens delivers a 66° field of view. Recording modes include continuous and motion detection recording. A mobile app for iOS and Android devices enables remote viewing, control, and downloading of captured footage.

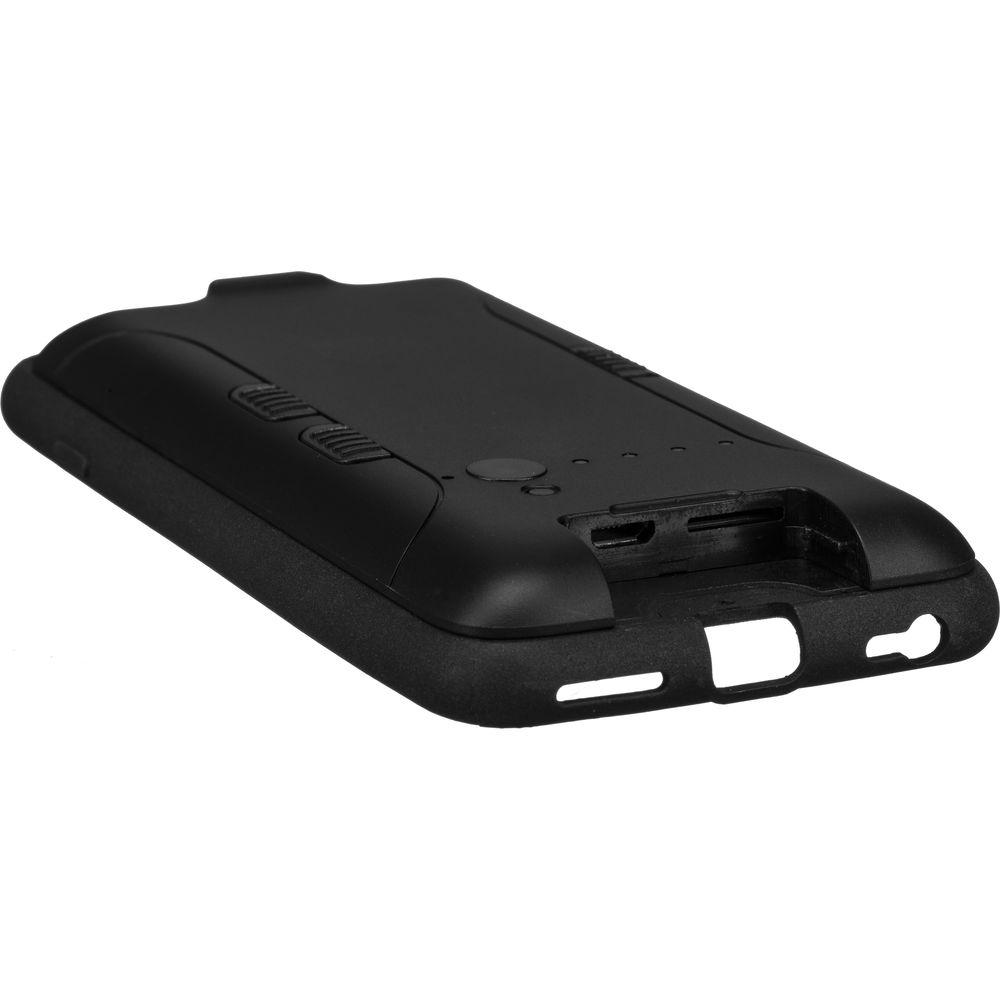

An onboard memory card slot supports microSD cards up to 32GB. A 16GB microSD card is included. Also included is a USB cable. A rechargeable battery enables portable use. - Continuous and motion detection recording modes
- Built-in IEEE 802.11b/g/n Wi-Fi connectivity
- H.264 and JPEG compression
- MOV and JPEG file formats
- Mobile app enables remote viewing and control on your iOS or Android device
- LED indicators can be turned off for covert surveillance
- Battery powered for portable use or AC powered for stationary use
UPC: 703624459628 In the Box LawMate PV-IP7IW iPhone 7 Battery Case with 1080p Wi-Fi Covert Camera & DVR USB Cable 16GB microSD Card Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the LawMate PV-IP7IW iPhone 7 Battery Case with 1080p Wi-Fi Covert Camera & DVR in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLawMate PV-IP7IW Specs | Image Sensor | 1/3" progressive scan CMOS sensor | | Sensor Resolution | 2304 x 1536 | | Sensor Sensitivity | 3.3 lux at f/2.0 | | Focal Length | 4mm | | Aperture | f/3.2 | | Field of View | 66° | | Compression | H.264, JPEG | | File Formats | MOV, JPEG | | Recording Modes | Auto, manual, motion detection | | Recording Resolutions | 1920 x 1080, 1280 x 720, 848 x 480 | | Frame Rate | 30 fps at all resolutions | | Image Resolution | 2 MP / 1920 x 1080 | | Wi-Fi Connectivity | IEEE 802.11b/g/n | | Wi-Fi Protocol | RTSP | | Storage | Supports microSD cards up to 32 GB (16 GB card included) | | Data Interface | Mini-USB 2.0 | | Date/Time Stamp | YYYY/MM/DD, HH:MM:SS | | Snapshot | Recording and playback video | | Power Input | 5 VDC | | Power Consumption | Wi-Fi Off: 450 to 500 mA
Wi-Fi On: 60 mA | | Charging Time | 120 minutes (1100 mA) | | Battery | 3.7 VDC / 1200 mA high polymer battery (XK704041) | | Battery Run Time | 1920 x 1080:
120 minutes with Wi-Fi and LED off
115 minutes with Wi-Fi off and LED on
105 minutes with Wi-Fi on and LED off
100 minutes with Wi-Fi and LED on
1280 x 720:
135 minutes with Wi-Fi and LED off
130 minutes with Wi-Fi off and LED on
120 minutes with Wi-Fi on and LED off
115 minutes with Wi-Fi and LED on
848 x 480:
150 minutes with Wi-Fi and LED off
145 minutes with Wi-Fi off and LED on
135 minutes with Wi-Fi on and LED off
130 minutes with Wi-Fi and LED on | | Recording Time | 300 minutes at 1920 x 1080 resolution on a 16 GB microSD card | | Dimensions | 2.8 x 5.5 x 0.6" / 70 x 140 x 15 mm | | Weight | 2.6 oz / 74 g | | | | Package Weight | 0.75 lb | | Box Dimensions (LxWxH) | 9.6 x 5.3 x 2.7" |
