LawMate PV-PH10 Smartphone Dashboard Mount with

Search your instruction manual in PDF to download

User Manual for LawMate PV-PH10 Smartphone Dashboard Mount with Covert 1080p Camera with Night Vision

Click to enlarge the picture
LawMate PV-PH10 Smartphone Dashboard Mount with Covert 1080p Camera with Night Vision Contents of the user manual for the LawMate PV-PH10 Smartphone Dashboard Mount with
  • Product category: Hidden Cameras LawMate
  • Brand: LawMate
  • Description and content of package
  • Technical information and basic settings
  • Frequently asked questions – FAQ
  • Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
  • Authorized service for LawMate Hidden Cameras

User manual for the LawMate PV-PH10 Smartphone Dashboard Mount with contain basic instructions that need to be followed during installation and operation. Before starting your appliance, the user manual should be read through carefully. Follow all the safety instructions and warnings, and be guided by the given recommendations. User manual is an integral part of any LawMate product, and if it is sold or transferred, they should be handed over jointly with the product. Following the instructions for use is an essential prerequisite for protecting health and property during use, as well as recognition of liability on the part of the manufacturer for possible defects should you make a warranty claim. Download an official LawMate user manual in which you will find instructions on how to install, use, maintain and service your product.

And do not forget – unsuitable use of a LawMate product will considerably shorten its lifespan!



Product description

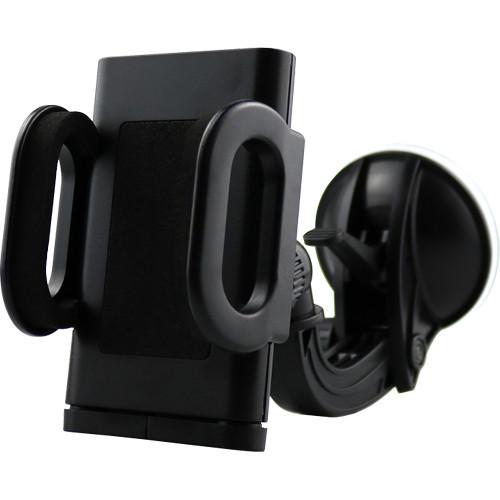

The Smartphone Dashboard Mount with Covert 1080p Camera from LawMate attaches to your vehicle's dashboard using an included suction cup mount and functions as a standard phone holder while offering a concealed surveillance camera. It's designed to capture the interior of the vehicle and is swivel-adjustable 360° to let you aim the camera as best suits your needs.

In your choice of motion-detected or manual recording, this camera records up to 1920 x 1080 resolution video at 30 fps to microSDHC cards up to 32GB (a 16GB card is included). In complete darkness, it switches to night vision and provides you with black-and-white images. It records 1080p video for approximately 160 minutes to a 16GB card. Recordings are stamped with time and date for reference and use as evidence. All phones up to 3.2" wide are supported in the holder, which is adjustable in width.
    Key Features
    • Holds phones up to 3.2" wide
    • Records up to 1080p resolution video at 30 fps manually or upon motion detection
    • LED night vision recording
    • Records to microSD cards up to 32GB (a 16GB card is included)
    • Approximately 160 minutes of record time in 1080p 30 fps to a 16 GB microSD card
    • 360° swivel-adjustable
    • H.264 video compression
    • Common MOV video file format
    • 66° field of view
    • File transfer over an included USB cable
    • USB cable battery charging
UPC: 703624459635 In the Box LawMate PV-PH10 Smartphone Dashboard Mount with Covert 1080p Camera with Night Vision
  • Suction Mount
  • USB Cable
  • 16GB microSD Card
  • 3.7V, 1350mAh High Polymer Battery
  • Limited 1-Year Warranty
  • Spec sheet PDF 340.2kbrffbxrftxwxveysuxtxzdwbwuazrded Table of Contents




    Upload User Manual

    Have you got an user manual for the LawMate PV-PH10 Smartphone Dashboard Mount with Covert 1080p Camera with Night Vision in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:





    OR

    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: PDF)

    0%


    Technical parameters

    LawMate PV-PH10 Specs

    Supported Smartphone Dimensions Up to 3.2" wide (8 cm) in portrait mode
    Sensor 3.5 MP, 1/3" CMOS
    Video Resolution Up to 1920 x 1080 at 30 fps
    Minimum Illumination 3.3 lux at f/2.0
    Focal Length 4mm
    Field of View 66°
    Compression Format H.264
    File Format MOV
    Recording Mode Manual / motion detection
    Storage microSD card slot supports up to 32 GB microSDHC cards (16 GB included)
    Approximate Record Times 160 minutes in 1920 x 1080 at 30 fps to a 16 GB microSD card
    Battery Life Up to 170 minutes (85 minutes in night vision mode) continuous
    Date & Time Stamp YYYY/MM/DD, HH:MM:SS
    Data/Charging Interface Mini-USB 2.0
    Battery 3.7 V, 1350 mAh
    Battery Charging Time 120 minutes (800 mA)
    LED Indicators Solid Red: Recording on
    Blinking Red: Memory card is full
    Solid Blue: Power on
    Solid Green: Device is charging
    Power Consumption 350-380 mA (IR off) / 680-730 mA (IR on)
    Operating Current 330 mA (±20 mA)
    Dimensions 4 x 2.5 x .5" (10 x 6.5 x 1.2 cm)
    Package Weight 1.4 lb
    Box Dimensions (LxWxH) 9.9 x 6.7 x 4.1"
