User Manual for LawMate PV-RC200HDW Key Fob with 1080p Wi-Fi Covert Camera & DVR Click to enlarge the picture
Contents of the user manual for the LawMate PV-RC200HDW Key Fob with 1080p
- Product category: Hidden Cameras LawMate
- Brand: LawMate
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for LawMate Hidden Cameras
 |
User manual for the LawMate PV-RC200HDW Key Fob with 1080p contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any LawMate product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official LawMate user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a LawMate product will considerably shorten its lifespan!
|

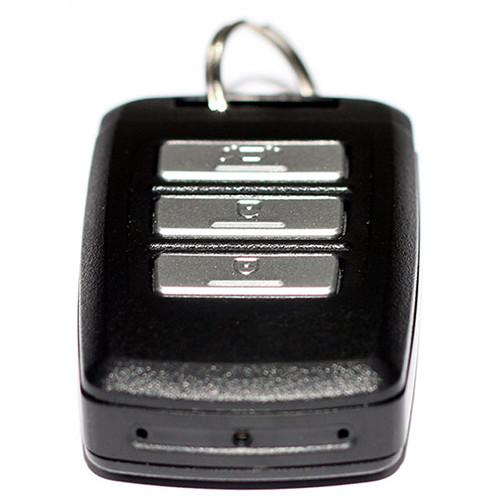

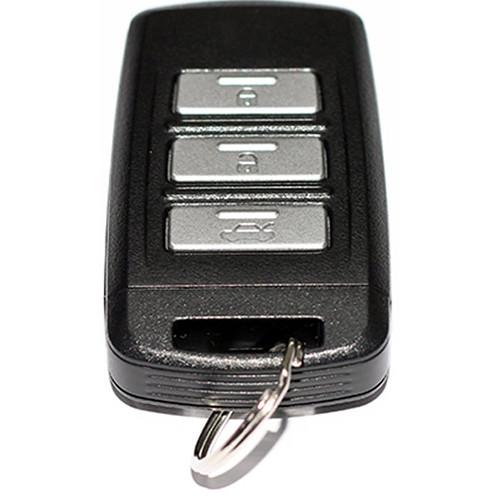

Product description The PV-RC200HDW Key Fob with 1080p Wi-Fi Covert Camera & DVR from LawMate uses a 1/3" progressive scan CMOS sensor to capture video up to 1920 x 1080 resolution at 30 fps. This covert Wi-Fi device can capture still images at 5MP. The 4mm fixed pinhole lens delivers a 66° field of view. A mobile app for iOS and Android devices enables remote viewing, control, and downloading of captured footage.
This covert device is equipped with a built-in rechargeable battery that offers up to 75 minutes of battery life with Wi-Fi turned off and up to 65 minutes with Wi-Fi on. A 16GB microSD card is included for storing captured footage. Also included are a USB cable and a microSD card adapter. - Built-in IEEE 802.11b/g/n Wi-Fi connectivity
- MOV and JPEG file formats
- Mobile app enables remote viewing, control, and downloading of captured footage on your iOS or Android device
- LED indicators for power, recording, charging, and Wi-Fi status
- Vibration alerts for power, recording, low battery, and Wi-Fi
- Automatic off mode prevents battery drain when microSD card is removed

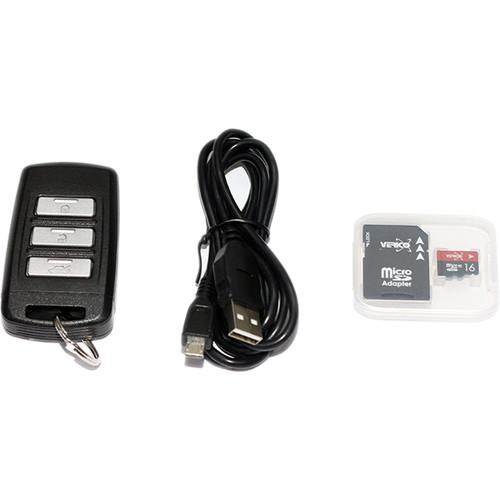

UPC: 703624459437 In the Box LawMate PV-RC200HDW Key Fob with 1080p Wi-Fi Covert Camera & DVR 16GB microSD Card microSD Card Adapter USB Cable Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the LawMate PV-RC200HDW Key Fob with 1080p Wi-Fi Covert Camera & DVR in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLawMate PV-RC200HDW Specs | Image Sensor | 1/3" progressive CMOS sensor | | Field of View | 66° | | Video Resolutions | 1920 x 1080, 1280 x 720, 800 x 480 | | Frame Rate | 30 fps at all resolutions | | Video Compression | H.264 | | Image Resolution | 5 MP / 2592 x 1944 | | Lens | 4mm | | Minimum Illumination | 3.3 lux at f/2.0 | | File Formats | MOV, JPEG | | PC Interface | Mini-USB 2.0 | | Date/Time Stamp | YYYY/MM/DD, HH:MM:SS | | Wi-Fi Connectivity | IEEE 802.11b/g/n | | Buttons & Controls | Vibration switch, reset key | | Alerts | Vibration alerts for on, off, record, low battery, and Wi-Fi on & off | | Mobile App | For iOS and Android devices | | Charging Time | 180 minutes (300 mA) | | Battery Type | 3.7 VDC / 650 mA lithium-ion polymer battery | | Battery Life | Continuous recording for 65 minutes with Wi-Fi on
Continuous recording for 75 minutes with Wi-Fi off | | Recording Time | Approximately 160 minutes at 1920 x 1080 | | Storage | Supports microSD cards up to 16 GB (16 GB card included) | | Dimensions | 2.8 x 1.6 x 0.63" / 71 x 41 x 16 mm | | Weight | 1.6 oz / 46 g | | | | Package Weight | 0.45 lb | | Box Dimensions (LxWxH) | 6.1 x 5.0 x 2.0" |
