User Manual for LawMate PV-RC300MINI Thumb-Sized Covert Camera & DVR Click to enlarge the picture
Contents of the user manual for the LawMate PV-RC300MINI Thumb-Sized Covert Camera &
- Product category: Hidden Cameras LawMate
- Brand: LawMate
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for LawMate Hidden Cameras
 |
User manual for the LawMate PV-RC300MINI Thumb-Sized Covert Camera & contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any LawMate product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official LawMate user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a LawMate product will considerably shorten its lifespan!
|

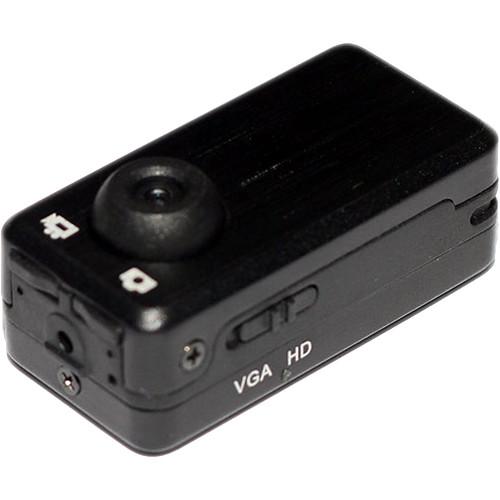

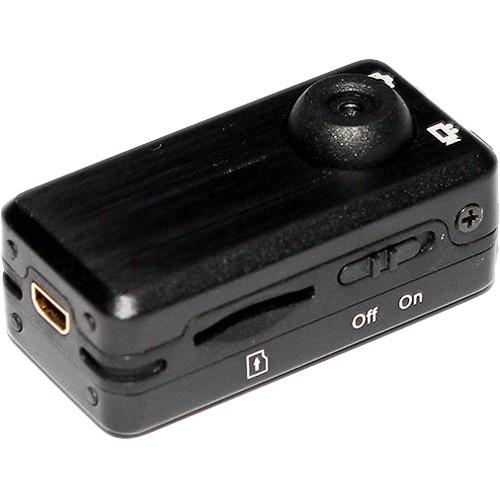

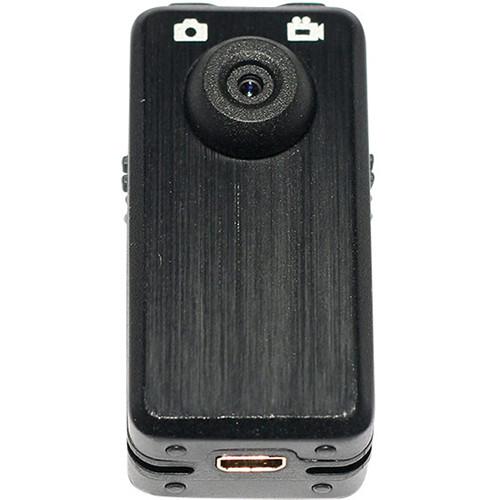

Product description The PV-RC300MINI Thumb-Sized Covert Camera & DVR from LawMate features a 1.3MP CMOS camera for recording video and capturing still shots, as well as a microphone for capturing audio. It offers 80 minutes of continuous recording. It can be used for body-worn video recording, sporting events, and recording on the go, or as a car recorder. - 1.3MP camera for video recording and capturing still shots
- Built-in microphone for audio recording
- Can be used for body-worn video recording and capturing pictures, in a car, as a webcam, and in sport events
- Compact and easy to operate using LED indicator
- 80 minutes of recording time
- Supports up to 16GB microSD card
UPC: 703624459451 In the Box LawMate PV-RC300MINI Thumb-Sized Covert Camera & DVR Car Charger Clip Mount Magnet Mount Camera Strap & Mount USB Charging Cable Webcam Driver Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the LawMate PV-RC300MINI Thumb-Sized Covert Camera & DVR in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLawMate PV-RC300MINI Specs | Image Sensor | 1/4" CMOS sensor | | Lens | 4.09mm, f/2.8 | | Angle of View | 66° | | Sensor Sensitivity | 1.1 lux at f/2.8 | | Video Resolution | 1280 x 960, 640 x 480 | | Frame Rate | Up to 30 fps | | Image Resolution | 1280 x 960, 1600 x 1200 | | Memory Type | Supports up to 16 GB microSD card | | File Formats | Video: Standard MPEG-4 (AVI)
Audio: PCM
Images: MJPEG, JPEG | | PC Interface | Mini-USB 1.1 | | Consumption Current | Standby: 130 mA
VGA Recording (640 x 480): 150 mA
HD Recording (1280 x 960): 160 mA | | Date/Time Stamp | YYYY/MM/DD, HH,MM,SS | | LED Indicators | On/record/photo/charge/low battery | | Power Supply | 5 VDC, 2 A | | Battery Charging Current | 270 mA | | Battery Type | 3.7 VDC, 230 mA Lithium-ion polymer battery | | Battery Run Time | 70 minutes | | Dimensions | 1.6 x 0.8 x 0.6" (40 x 20 x 14.2 mm) | | Weight | 0.6 oz (17 g) |
