User Manual for LawMate PV-UC10I USB Adapter with 1080p Wi-Fi Covert Camera Click to enlarge the picture
Contents of the user manual for the LawMate PV-UC10I USB Adapter with 1080p
- Product category: Hidden Cameras LawMate
- Brand: LawMate
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for LawMate Hidden Cameras
 |
User manual for the LawMate PV-UC10I USB Adapter with 1080p contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any LawMate product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official LawMate user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a LawMate product will considerably shorten its lifespan!
|

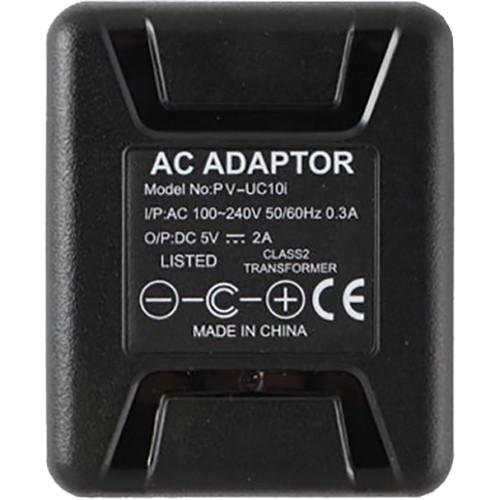

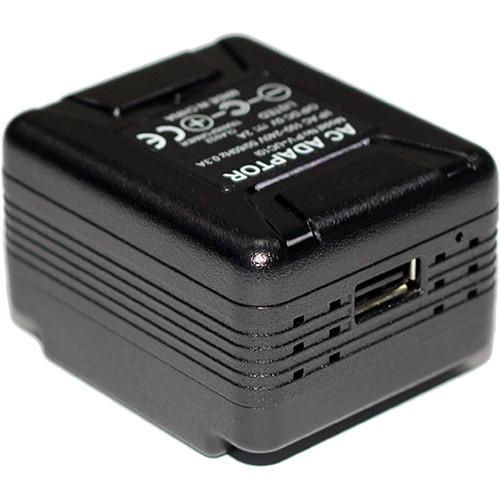

Product description The PV-UC10I USB Adapter with 1080p Wi-Fi Covert Camera from LawMate uses a 1/2.9" progressive scan CMOS sensor to capture video up to 1920 x 1080 resolution at 30 fps. Additionally, this covert Wi-Fi device can capture still images at 2MP. A 4.3mm fixed lens delivers a 78° field of view. Recording modes include auto, manual, and motion detection recording. An onboard memory card slot supports microSD cards up to 32GB. A 16GB microSD card is included. Also included are US, UK, EU & Australian plug adapters, and a USB cable. - Functional USB charging port
- Auto, manual, and motion detection recording modes
- Mobile app enables remote viewing, control, and downloading of captured footage on your smartphone
- IEEE 802.11b/g/n Wi-Fi connectivity

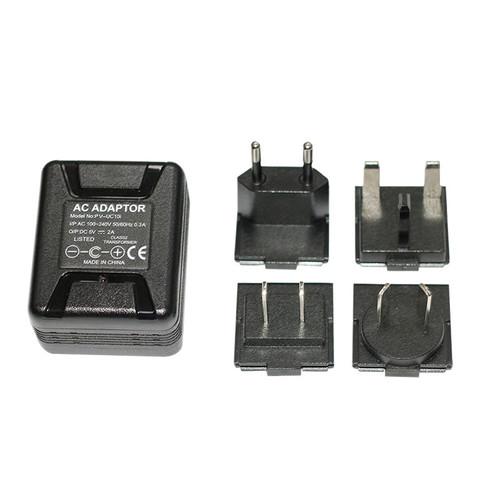

- US, UK, EU, and Australian plug adapters are included
- LED indicators for status

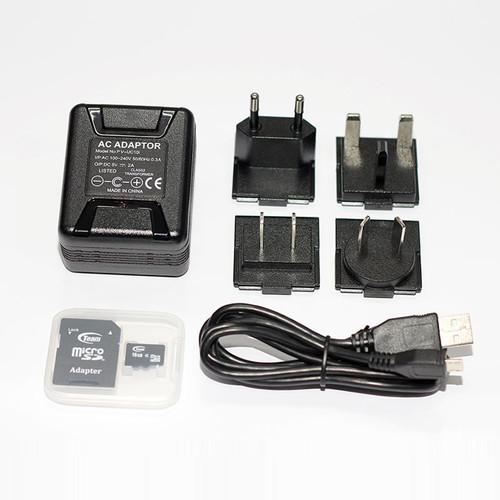

UPC: 703624459499 In the Box LawMate PV-UC10I USB Adapter with 1080p Wi-Fi Covert Camera 16GB microSD Card USB Cable 4 x Plug Adapters (US, UK, EU, Australia) Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the LawMate PV-UC10I USB Adapter with 1080p Wi-Fi Covert Camera in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLawMate PV-UC10I Specs | Image Sensor | 1/2.9" progressive scan CMOS | | Sensor Resolution | 2000 x 1121 | | Sensor Sensitivity | 0.1 lux at f/2.0 | | Focal Length | 4.3mm | | Aperture | f/2.0 | | Field of View | 78° | | Compression Algorithm | H.264, JPEG | | File Format | MOV, JPEG | | Recording Modes | Auto, manual, motion detection | | Motion Detection | Sensitivity: High, Medium, Low | | Recording Resolutions | 1920 x 1080, 1280 x 720, 848 x 480 | | Frame Rate | Up to 30 fps | | Photo Resolution | 2 MP / 1600 x 1200 | | Wi-Fi Connectivity | IEEE 802.11b/g/n | | USB | Mini-USB 2.0 | | Storage | Supports microSD cards up to 32 GB, 16 GB card included | | Date/Time Stamp | YYYY/MM/DD, HH:MM:SS | | Power Input | 100-240 VAC | | Dimensions | 2.5 x 2 x 1.6" / 63 x 52 x 40 mm | | Weight | 3.4 oz / 97 g | | | | Package Weight | 0.9 lb | | Box Dimensions (LxWxH) | 9.5 x 5.3 x 2.8" |
