User Manual for LawMate Wall Switch with 720p Covert Pinhole Camera & DVR Click to enlarge the picture
Contents of the user manual for the LawMate Wall Switch with 720p Covert
- Product category: Hidden Cameras LawMate
- Brand: LawMate
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for LawMate Hidden Cameras
 |
User manual for the LawMate Wall Switch with 720p Covert contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any LawMate product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official LawMate user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a LawMate product will considerably shorten its lifespan!
|

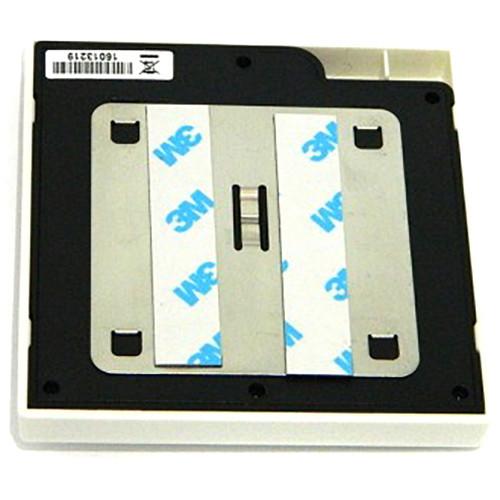

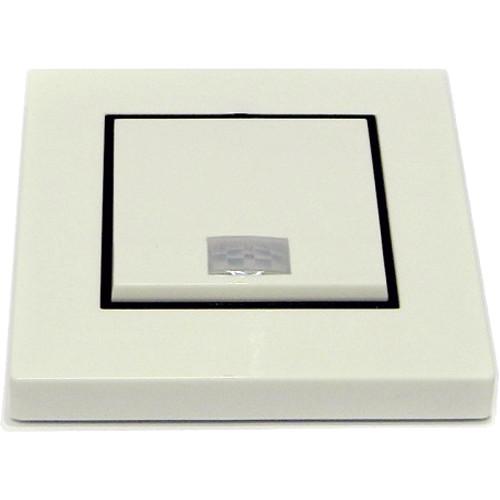

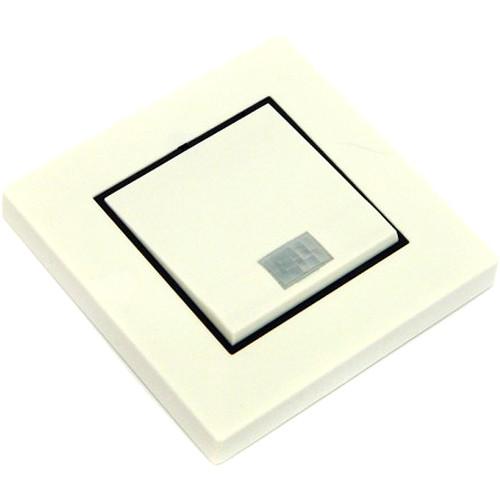

Product description The Wall Switch with 720p Covert Pinhole Camera & DVR from LawMate is a hidden camera and DVR disguised as a wall switch. This covert device has a 2MP CMOS sensor to capture 1280 x 720 resolution video at 30 fps and 2MP still photos. A 6mm fixed lens delivers a 61° field of view. Additionally, this wall switch is equipped with a PIR sensor that has a range up to 16.4' to monitor motion. Audio is possible thanks to a built-in microphone. A built-in rechargeable battery offers up to 320 minutes of battery life. An integrated card slot accepts microSD cards up to 32GB. A 16GB microSD card is included. - PIR function for auto monitoring
- PIR function for video recording and photo shooting
- Time stamp and real time clock function

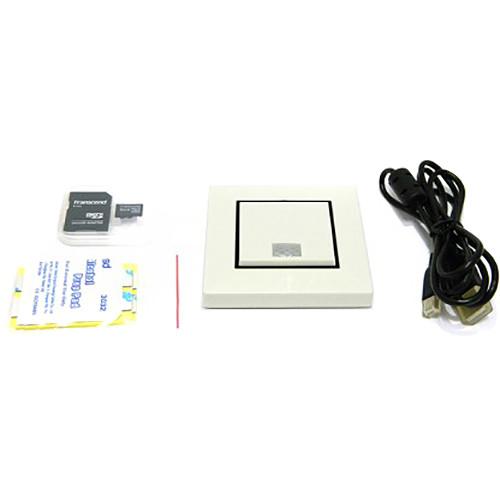

UPC: 703624459505 In the Box LawMate Wall Switch with 720p Covert Pinhole Camera & DVR USB Cable Double-Sided Tape 16GB microSD Card Cleaning Accessory Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the LawMate Wall Switch with 720p Covert Pinhole Camera & DVR in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLawMate PV-WS10 Specs | Sensor | 2 MP CMOS | | Video Resolutions | 1280 x 720 at 30 fps
640 x 480 at 30 fps | | Lens | 6mm | | Field of View | 61° | | Minimum Illumination | 3.3 lux | | Sensitivity | 1300 mV/lux-sec | | Video Format | AVI | | Photo Format | JPEG | | Photo Resolution | 2 MP / 1600 x 1200 | | Time Stamp | Yes | | PIR Sensor | Yes
PIR function for video recording and photo shooting | | PIR Range | 16.4' / 5 m | | Built-In Microphone | Yes | | LED Indicators | Green for battery charging
Blue for power on and low battery
Red for video recording and photo shooting | | Storage | Supports microSD cards up to 32 GB, 16 GB microSD card included | | Battery Capacity | 950 mA | | Battery Charge Time | 3 hours | | Battery Life | Up to 320 minutes | | Standby Time | Up to approximately 5 days | | Dimensions | 0.65 x 3.4 x 3.4" / 16.5 x 86.3 x 86.3 mm | | Weight | 2.82 oz / 79.9 g | | | | Package Weight | 0.65 lb | | Box Dimensions (LxWxH) | 6.0 x 4.9 x 2.6" |
