Product description Keep the lights on when the power goes out with the LaZer VoLT 12 VDC Blackout Relief Power Source. At the heart of the unit is an internal lead acid 12 VDC, 14 amp-hour SMF (Sealed Maintenance-Free) battery that can be charged from 110 VAC house current, 12 VDC car/vehicle/RV battery, or from compatible solar panels.Multiple output ports is what makes this portable power solution stand out. At the forefront is a standard US wall outlet - but outputs 12 VDC direct current. When the lights go out, simply plug any household lamp or fixture into the outlet, replace the regular light bulb with the included 12 VDC RV bulb and enjoy light as normal. Since any 12 VDC RV bulb with an Edison base will work, and they are low-draw, you can plug in an outlet extender and light multiple fixtures to have multiple lamps and fixtures lit. LaZer VoLT includes a bulb and a socket to get you started out of the box, and you can pick more RV bulbs as needed later. Since the output of the unit is 12V direct current, you can only use 12 VDC light bulbs, even though they are plugged into conventional lamps.Beyond this output, there are two standard USB ports for small electronics and a conventional 12 VDC car/vehicle socket to power auto accessories. To help set up your lights when the power goes out is a 5-LED spotlight on the front, and alternating flashing yellow LEDs signal for assistance in emergencies. The whole unit is fused for safety, and has multiple indicators that provide feedback about the current state of the system. This is not a conventional power inverter and all power outputs are 12V direct current, so you cannot use household appliances or standard light bulbs with this device. - 12 VDC Power Station
-
- Lead acid 12 VDC, 14 amp-hour SMF (Sealed Maintenance-Free)
- Charge battery from 110 VAC house current, 12 VDC car/vehicle plug, or compatible solar panels
- Included alligator clip cable allows for direct-connection to car/vehicle/boat battery for longer runtime
- Output Ports
-

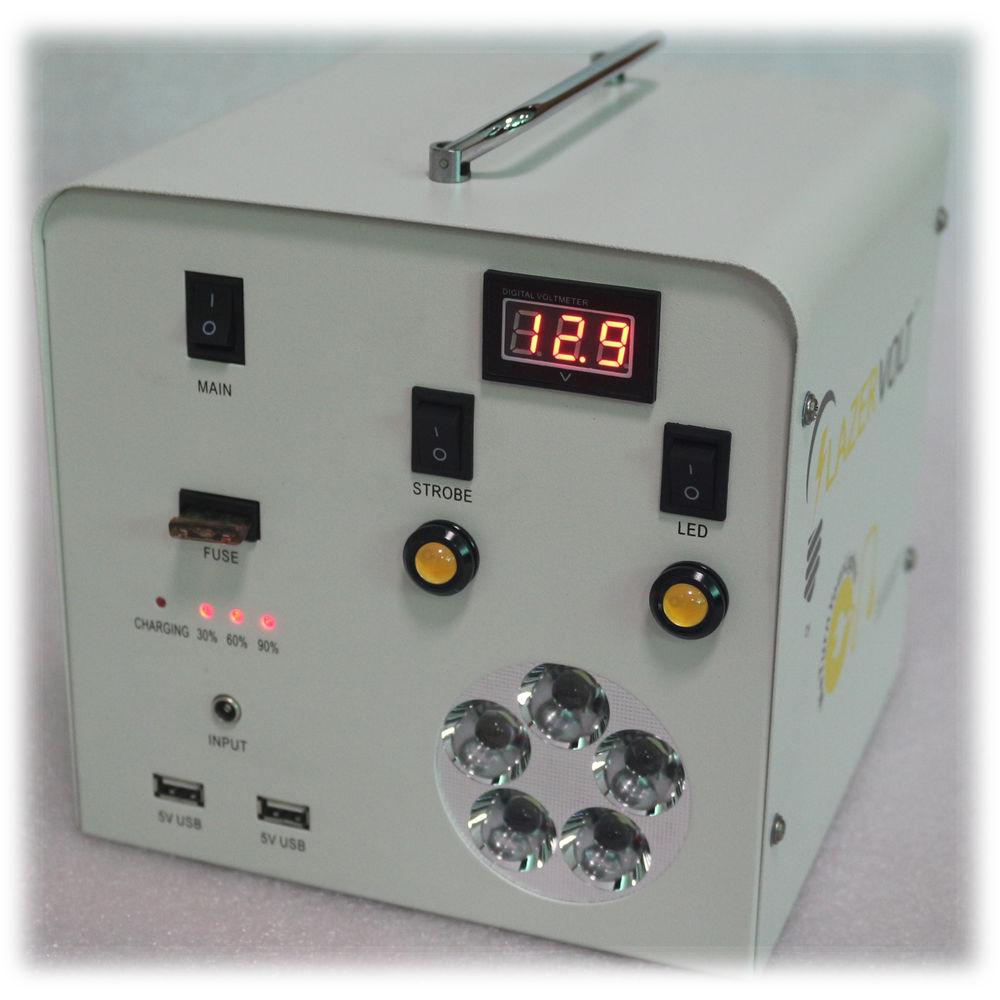

- Two standard 5 VDC USB ports on front: Charge cell phones, tables, and other small electronics

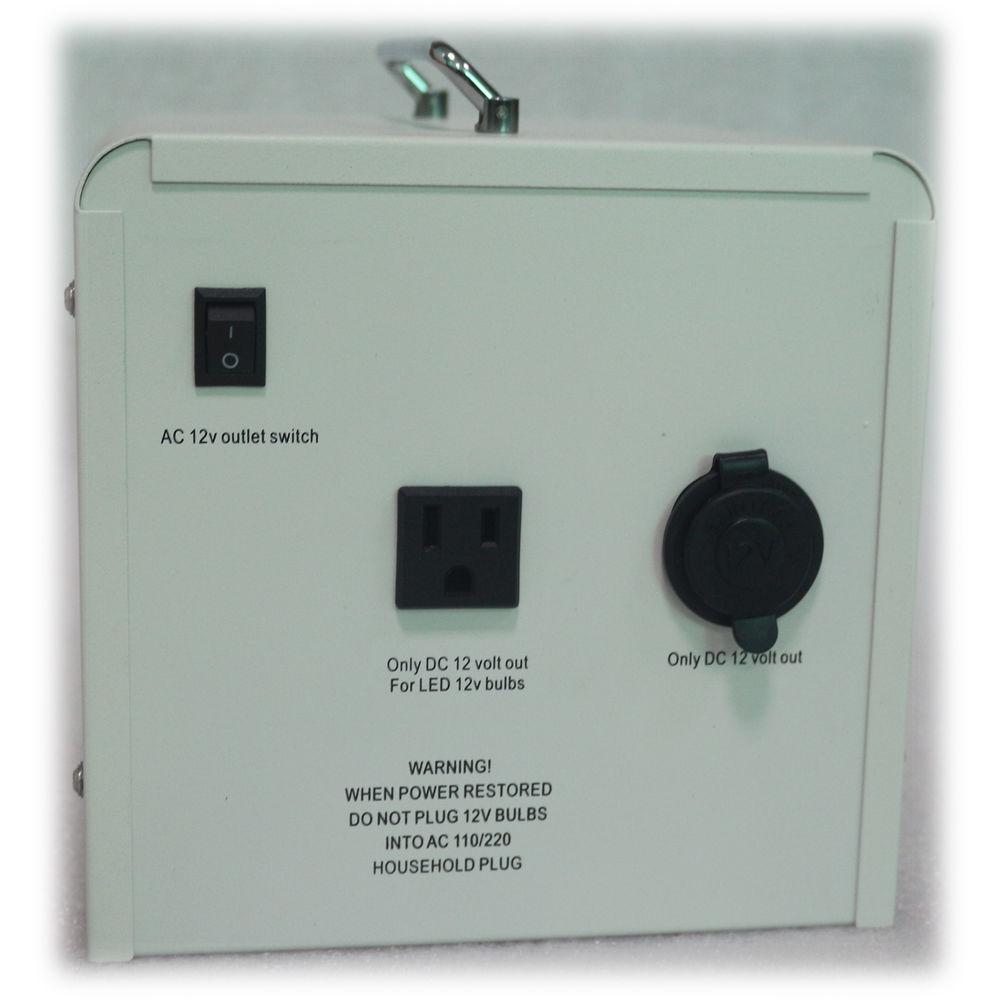

- 12 VDC 3-prong US wall outlet on back: Plug outlet extenders or extension cords and utilize 12 VDC LED RV bulbs in conventional household lamps
- 12 VDC car/vehicle plug on back: Use standard car accessories/charges
- Not a power-inverter, all output power is 12V direct current
- Flashlight Outputs
-
- Two yellow LEDs: Flashing strobe mode to use as a distress signal
- Five independent LED emitters provide a powerful spotlight
- Indicators
-
- Charging LED indicator
- Real-time battery status indicators
- Output current display
- Safety Features
-
- Master/main on/off switch
- Standard 7.5A master fuse
- Separate wall outlet on/off switch

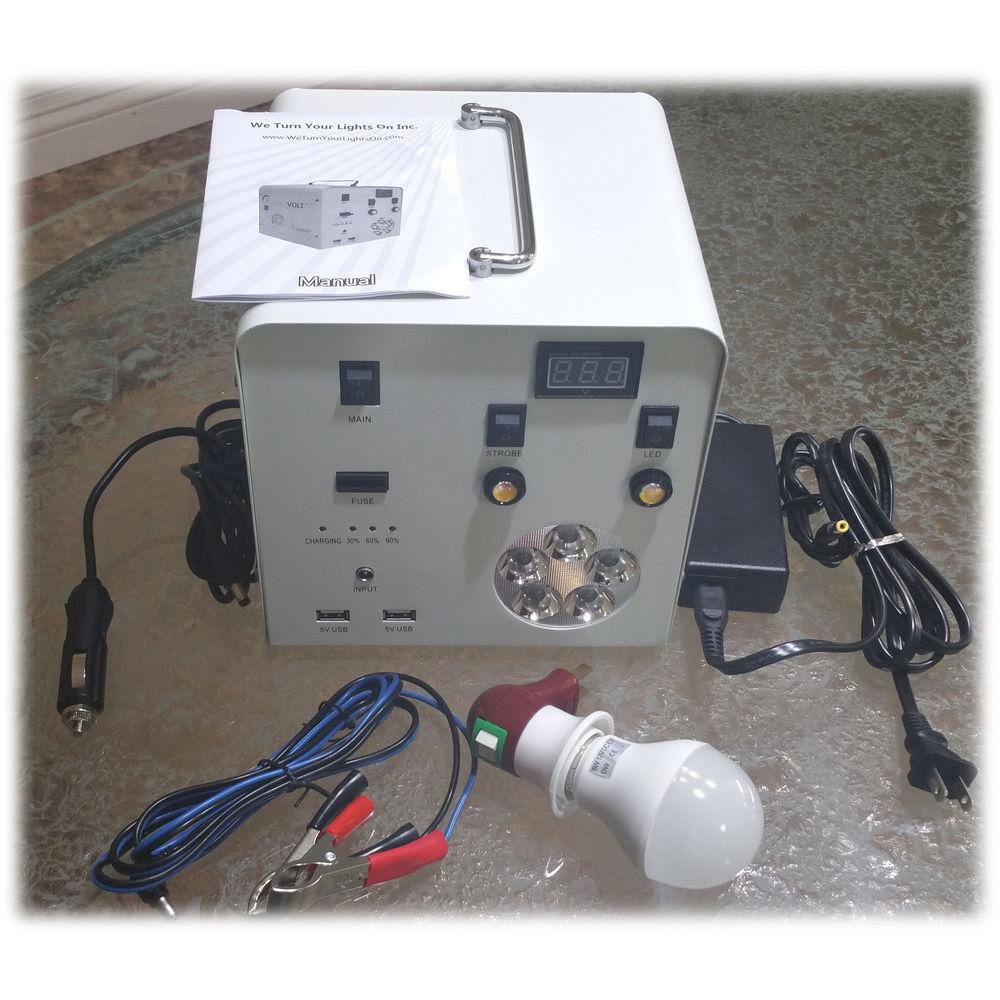

UPC: 862322000201 In the Box Lazer Volt 12 VDC Blackout Relief Power Source Alligator Clip Cable 110 VAC Adapter 12 VDC Car adapter 12 VDC, 5W LED Bulb Plug-In Socket for Bulb 2 x 7.5A Fuses Polarity AC Adapter Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Lazer Volt 12 VDC Blackout Relief Power Source in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLazer Volt LVSH318 Specs | Battery Chemistry | Lead acid
SMF (Sealed Maintenance-Free) | | Battery Capacity | 12 VDC, 14 Ah | | Input Charge | 110 VAC
12 VDC | | Output | Ports: 12 VDC | | Ports | 2 x 5 VDC USB port (Front)
1 x 3-prong US wall outlet, 12 VDC (Back)
1 x 12 VDC car/vehicle plug (Back) | | Fuse | 7.5 A, ATO automotive | | Operating Temperature | -4 to 140°F / -20 to 60°C | | Dimensions | 7.3 x 7.3 x 7.0" / 18.5 x 18.5 x 17.8 cm | | Weight | 15.0 lb / 6.8 kg | | | | Package Weight | 16.15 lb | | Box Dimensions (LxWxH) | 12.0 x 8.6 x 8.3" |
