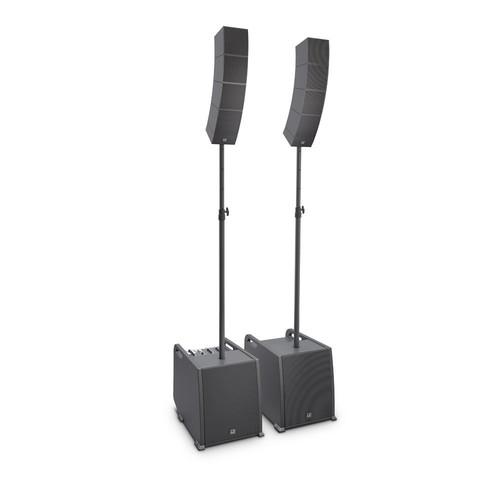

User Manual for LD Systems CURV 500 PS Portable Array System Power Set w Distance Bars & Speaker Cables Click to enlarge the picture
Contents of the user manual for the LD Systems CURV 500 PS Portable
- Product category: Portable PA Systems LD Systems
- Brand: LD Systems
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for LD Systems Portable PA Systems
 |
User manual for the LD Systems CURV 500 PS Portable contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any LD Systems product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official LD Systems user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a LD Systems product will considerably shorten its lifespan!
|

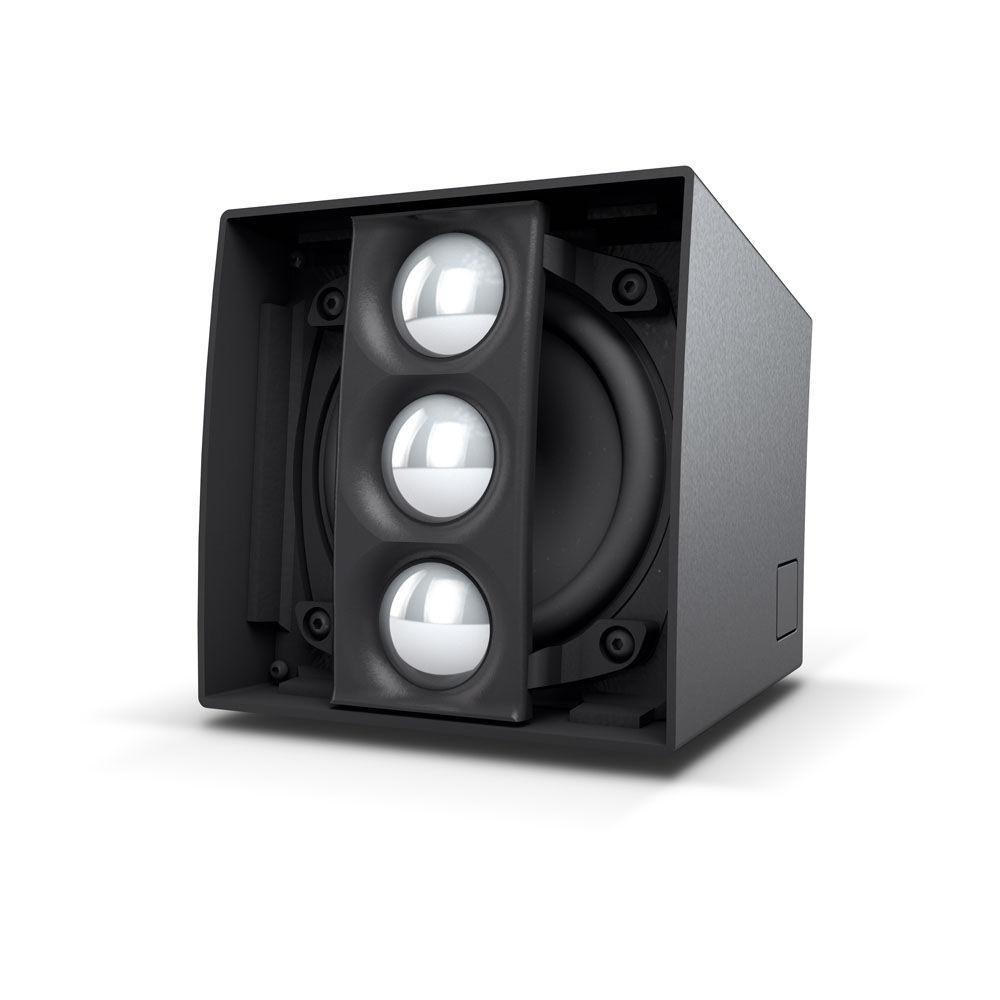

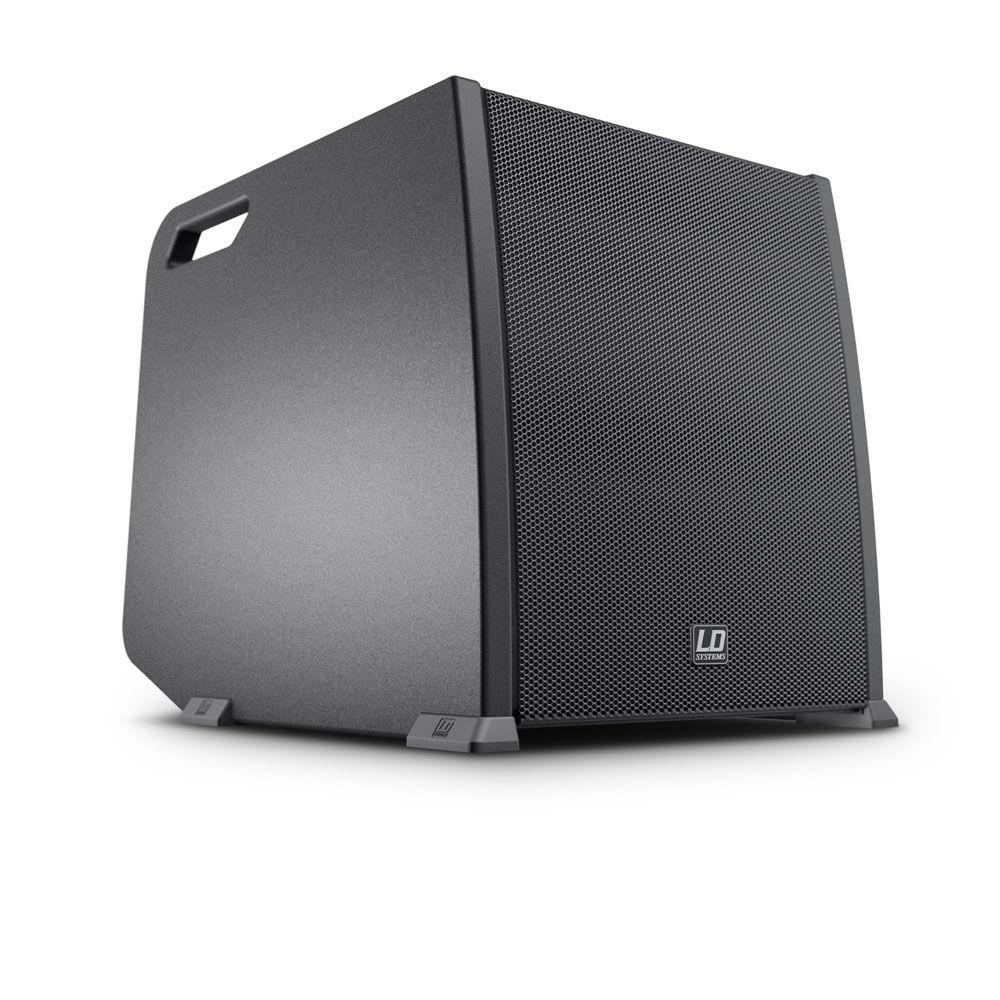

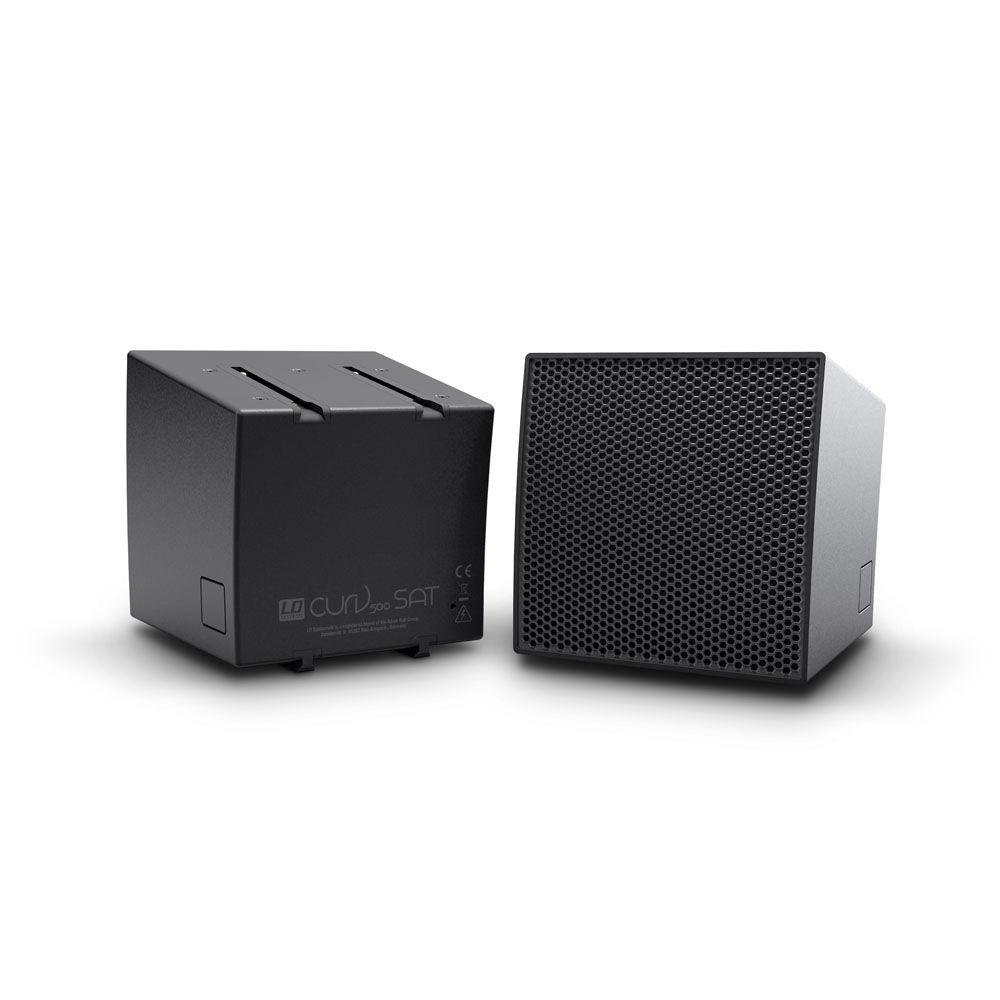

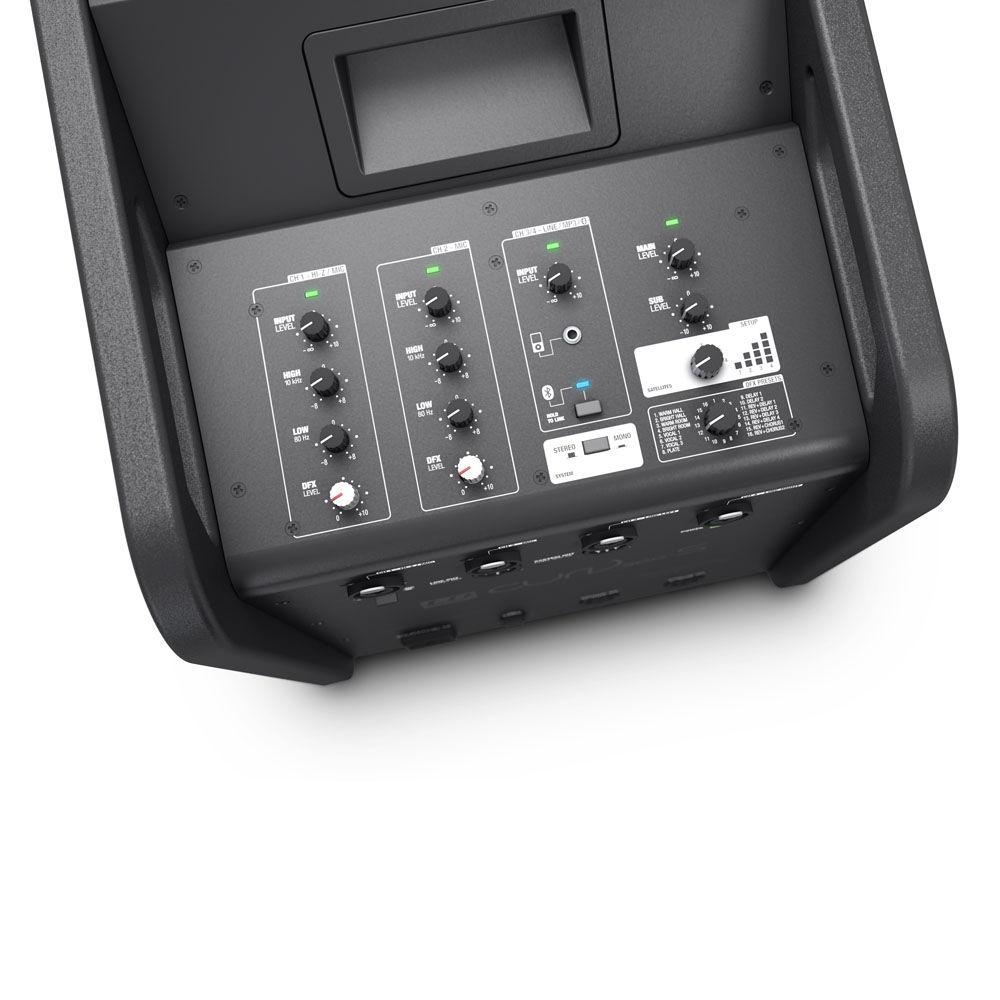

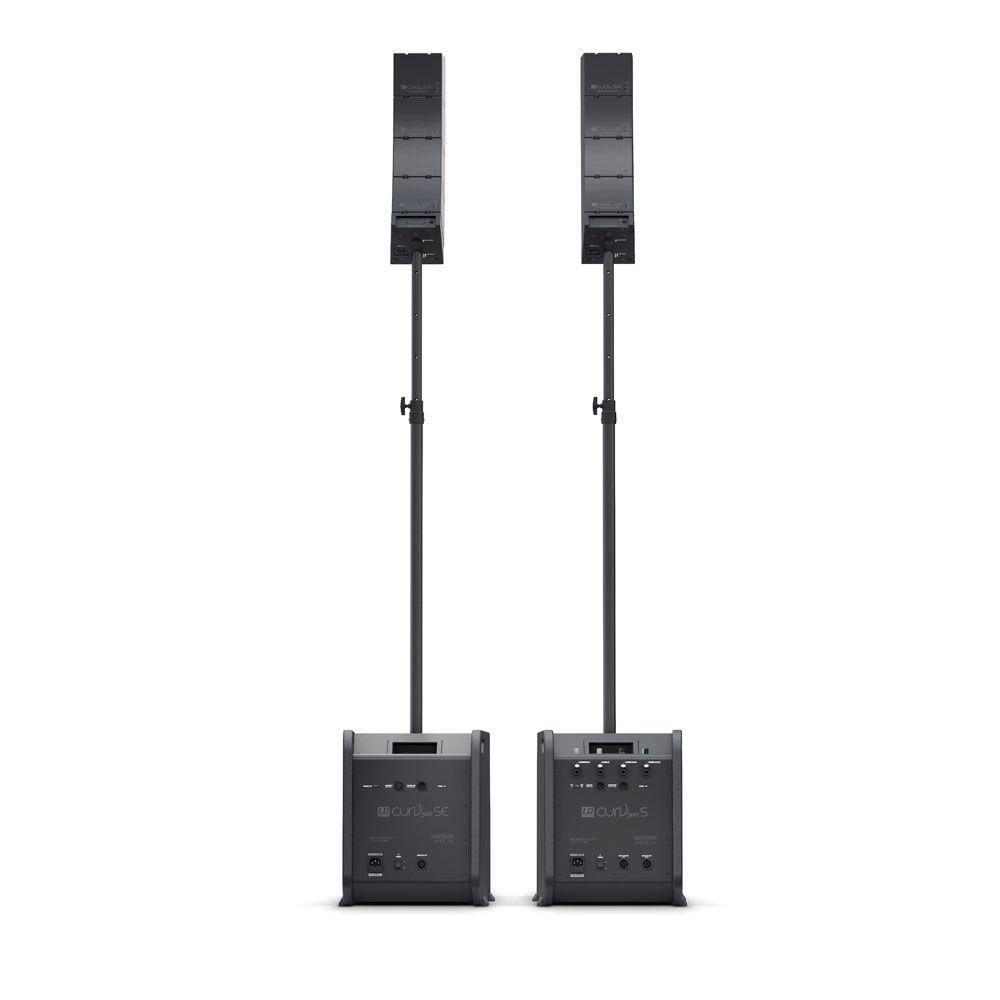

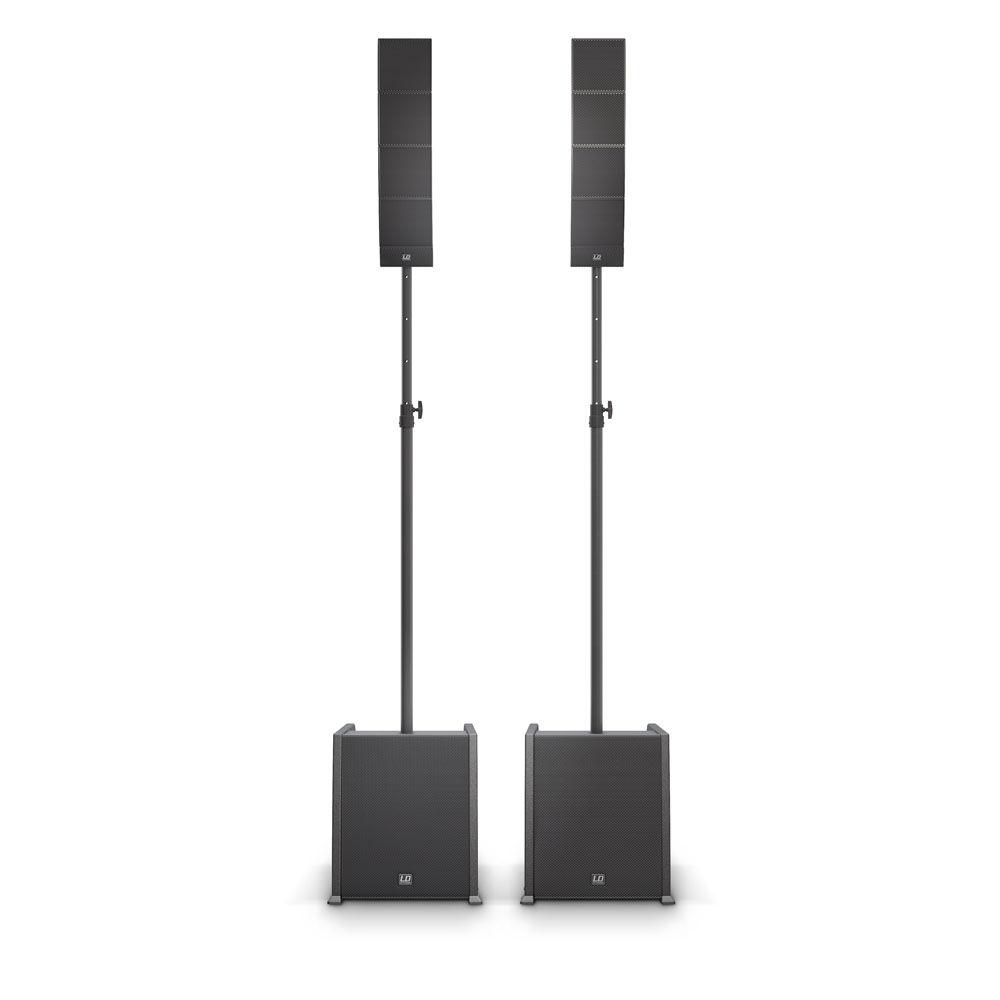

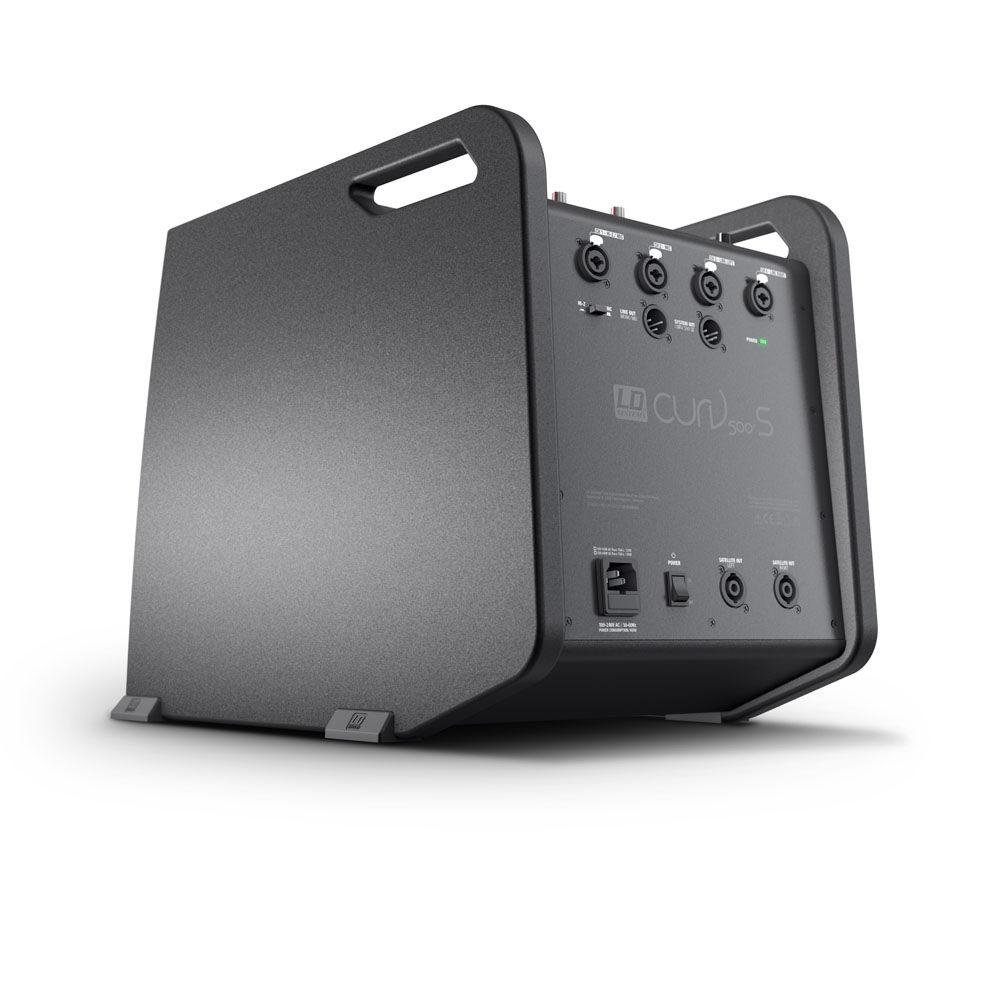

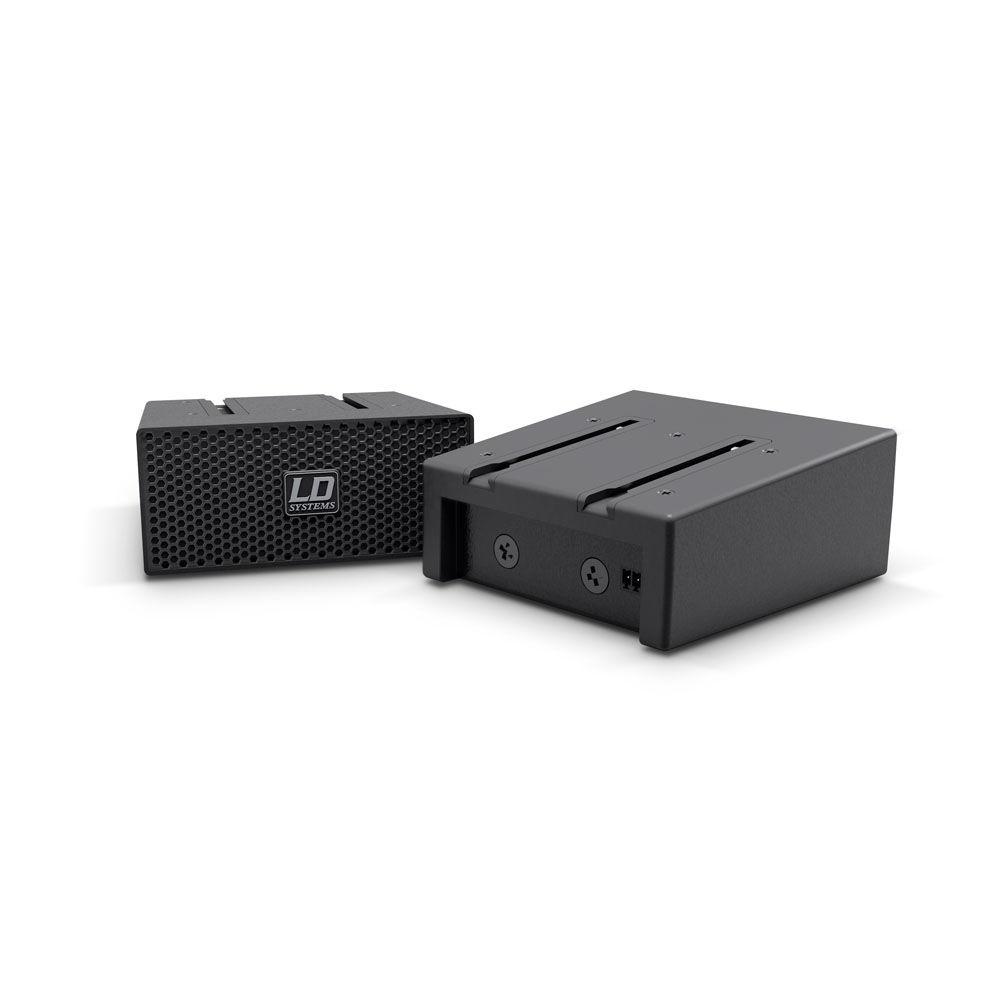

Product description 7 All-In-One Portable Speaker Systems for Special Events and Parties Read More The CURV 500 PS System Power Set from LD Systems is a portable array system with eight satellite speakers, two 10" subwoofers, a 4-channel mixer with 16 digital effects, speaker cables, two distance bars, and two SmartLink adapters. Featuring 920W RMS power, it can be used in sound reinforcement applications for larger events, concerts, rehearsals, meetings, in houses of worship, and more. The portable sound system's subwoofers have a Class-D power amplifier with a limiter that provides protection against short circuits and overloading. Also, the 4-channel mixer with 16 digital-effect presets uses modern Bluetooth technology and is built-in one of the subwoofer units. The integrated combo and Speakon-compatible sockets offer extensive connectivity options with other systems, and the subwoofer has four digital system presets, an M20 threaded flange, and three ergonomic carrying handles. In addition, the eight satellite speakers are 4.7 x 4.7" in size and operate via SmartLink adapters. Using LD System's own WaveAhead technology, one 4" and three 1" drivers provide detailed audio playback for each satellite speaker. Two distance bars are included to mount the satellites; with optional wall and ceiling mounting systems (sold separately), the satellites can be installed anywhere where good sound and subtle appearance are required. In the Box LD Systems CURV 500 PS Portable Array System Power Set w/Distance Bars & Speaker Cables Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the LD Systems CURV 500 PS Portable Array System Power Set w Distance Bars & Speaker Cables in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLD Systems CURV 500 PS Specs | | | Type | Active portable array system | | System Output | 920 W (RMS) | | Satellites | 8 | | Adapters | SmartLink: 2 | | Subwoofer | 2 | | Max SPL Level | Continuous: 128 dB
Peak: 134 dB | | Frequency Response | 47 Hz to 20 kHz | | Dispersion | Horizontal: 110°
Vertical: Each satellite 10° | | RMS Power | Subwoofer: 300 W, subwoofer extension 300 W
Array Satellites: 8 x 160 W, | | Peak Power | Subwoofer: 1200 W, subwoofer extension 1200 W
Array Satellites: 8 x 640 W | | Amplifier | Class-D | | Protection Circuits | Overload, DSP-based multiband limiter | | Power | 120 - 240 VAC switchable | | Weight | 97 lb (44 kg) | | | | Driver Size | Low/Mid: 10" (254 mm) | | Cabinet Construction | Vented | | Material of Construction | Plywood | | Surface Finish | PA painting | | Additional Features | 3 ergonomic handles | | Dimensions (W x H x D) | 13 x 15 x 19" (325 x 383 x 491 mm) | | Weight | 36.4 (16.5 kg) | | | | System | MF: 4" (102 mm)
HF: 3 x 1" (25.4 mm) | | Crossover | Internal crossover with WaveAhead technology | | Impedance | 16 ohms | | Material of Construction | Die-cast aluminum
Metal grille | | Surface | Powder coated | | Dimensions (W x H x D) | 4.8 x 4.8 x 4.8" (122 x 122 x 122 mm) | | Weight | 3.7 lb (1.7 kg) | | | | Features | 2 x M6 thread for optional wall mount
2 x 0.63" (16 mm) pole mount socket | | Connectors | Phoenix, 1 x Speakon-compatible | | Material of Construction | Die-Cast aluminum | | Surface | Powder coated | | Dimensions (W x H x D) | 4.5 x 2.2 x 4.5" (122 x 57 x 122 mm) | | Weight | 1.3 lb (0.6 kg) | | | | Package Weight | 139.5 lb | | Box Dimensions (LxWxH) | 32.3 x 25.0 x 24.1" |
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 36 owners. Add your rating and experience with the product.
