User Manual for LD Systems CURV 500 STS Stereo Set Click to enlarge the picture
Contents of the user manual for the LD Systems CURV 500 STS Stereo
- Product category: PA Speakers LD Systems
- Brand: LD Systems
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for LD Systems PA Speakers
 |
User manual for the LD Systems CURV 500 STS Stereo contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any LD Systems product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official LD Systems user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a LD Systems product will considerably shorten its lifespan!
|

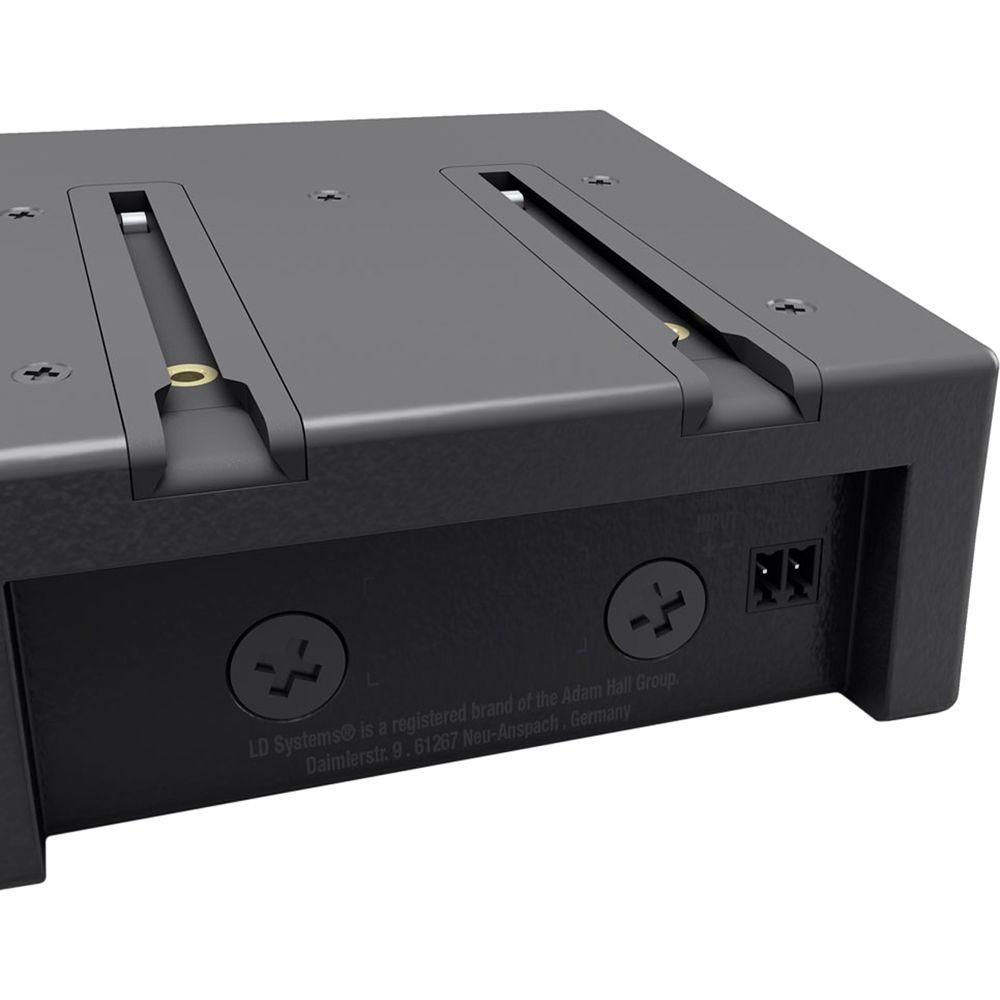

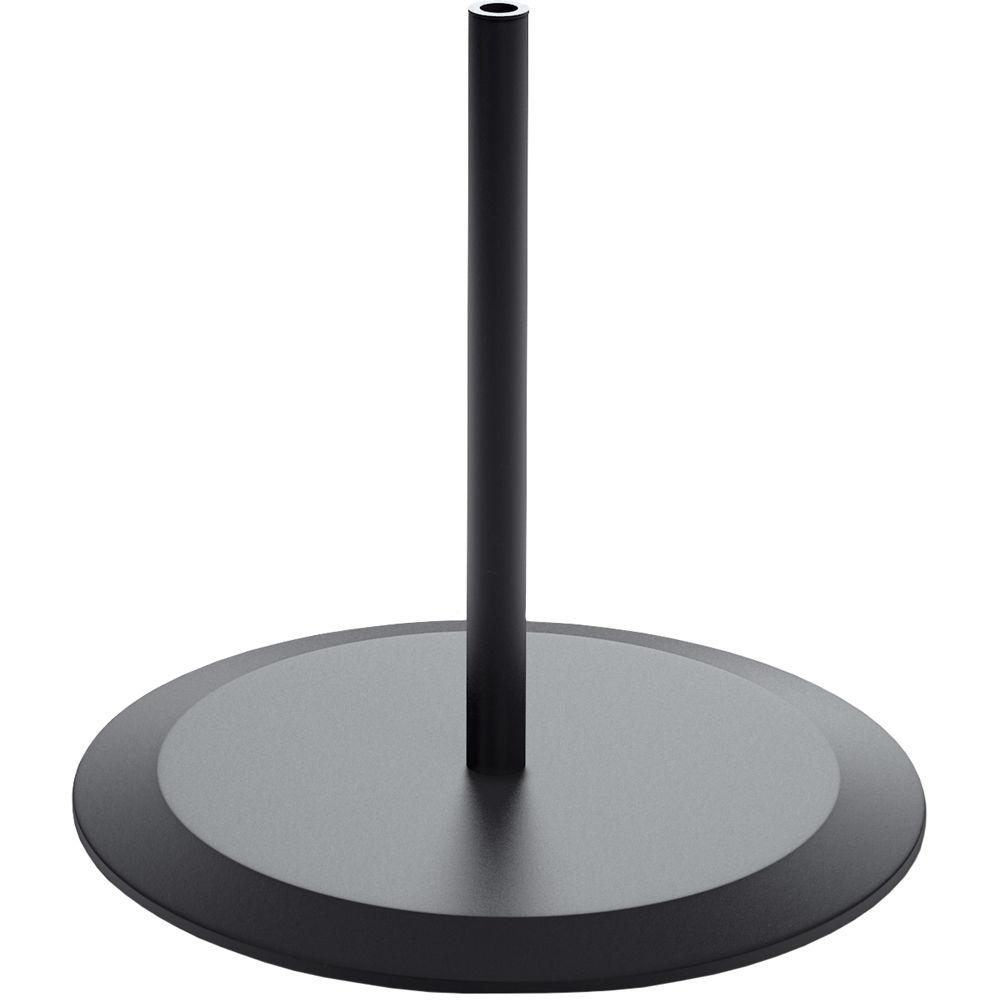

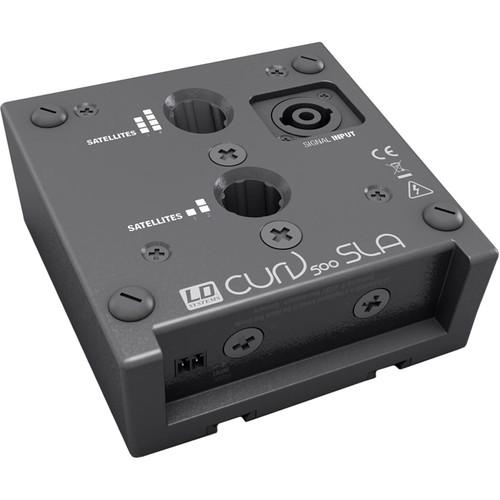

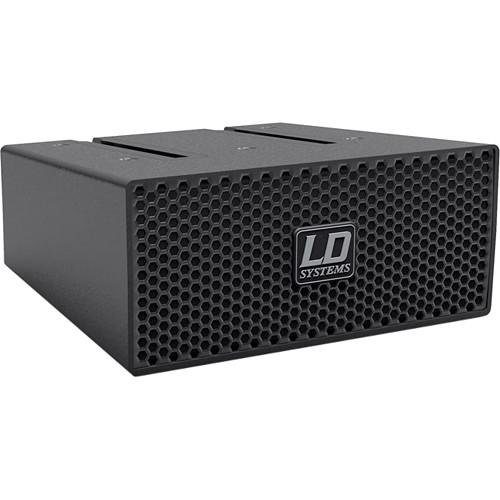

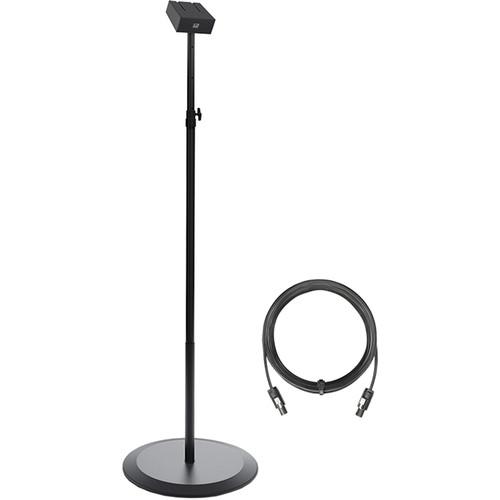

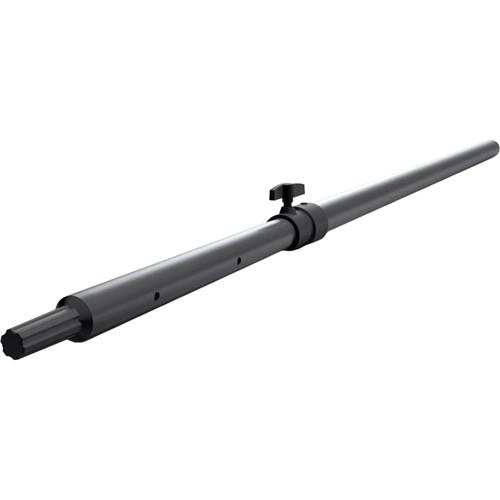

Product description The LD Systems CURV 500 STS Stereo Set can be used for increasing the distance between the speaker base and the satellites on a CURV array system for an improved stereo experience. This Stereo Set includes the CURV 500 DB Distance Bar (Black), a round CURV 500 SSB Speaker Stand Base with an integrated extension, a SmartLink Adapter (Black), and a 26.2' speaker cable.The CURV 500 Entertainer Set can be operated with this set in the left and right channels with two satellites each. When upgrading to four satellites, you can even operate eight array satellites in stereo mode. This configuration with a subwoofer and 8 array satellites is particularly suitable for voice applications. In the Box LD Systems CURV 500 STS Stereo Set CURV 500 DB Distance Bar CURV 500 SSB Speaker Stand Base with Integrated extension SmartLink Adapter 26.2' Speaker Cable Table of Contents
|
Upload User Manual
Have you got an user manual for the LD Systems CURV 500 STS Stereo Set in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLD Systems LDS-CURV500STS Specs | | | Type | Expansion set | | Minimum Height | 58.62" (1489 mm) | | Maximum Height | 72.4" (1839 mm) | | Weight | Not specified by the manufacturer | | | | Type | Smartlink adapter | | Material | Die-cast aluminum | | Surface | Powder coated | | Connectors | 1x Speakon compatible, 1x Phoenix | | Thread | 2 x M6 thread for optional wall mount | | Flange Attachment Size | 2 x 16 mm flanges | | Dimensions (W x H x D) | 4.8 x 4.8 x 2.24" (122 x 122 x 57 mm) | | Weight | 0.77 lb (0.35 kg) | | | | Type | Speaker stand base | | Material | Steel | | Surface | Powder coated | | Height | 18.66" (474 mm) | | Weight | 18 lb (8.2 kg) | | | | Type | Speaker poles | | Material | Tubing: Steel | | Surface | Tubing: Powder coated | | Height Adjustment | Clamp with safety pin | | Connector | Lower Connector: M20 | | Minimum Height | 39.9" (1015 mm) | | Maximum Height | 53.7" (1365 mm) | | Length | Transport Length: 22.83" (580 mm) | | Weight | 4.25 lb (1.93 kg) |
