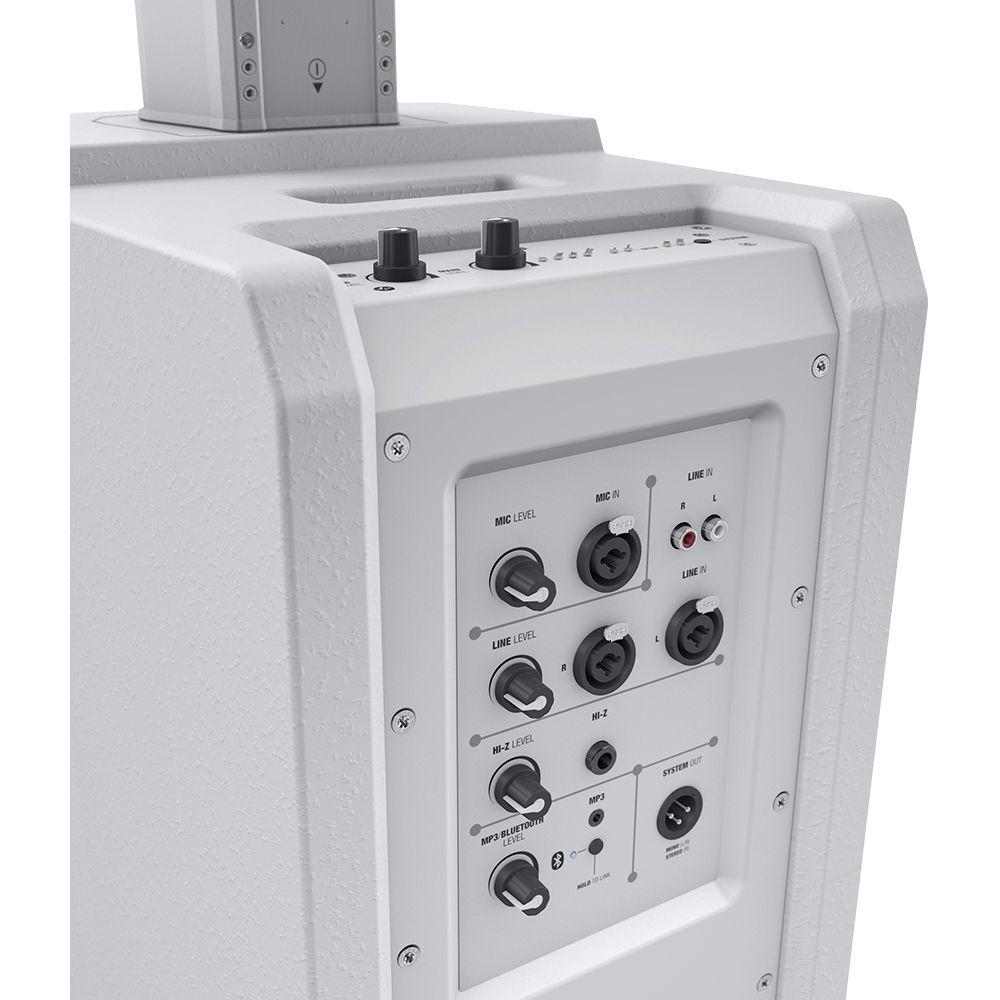

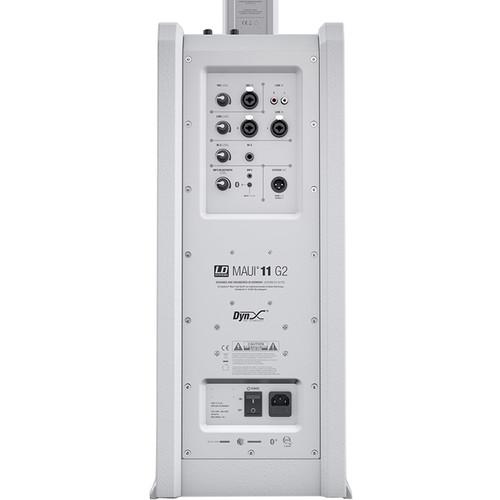

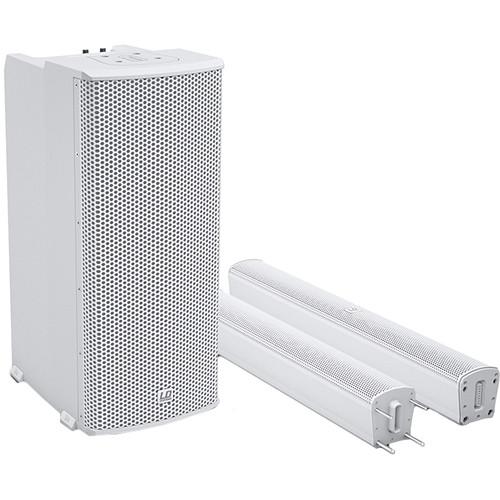

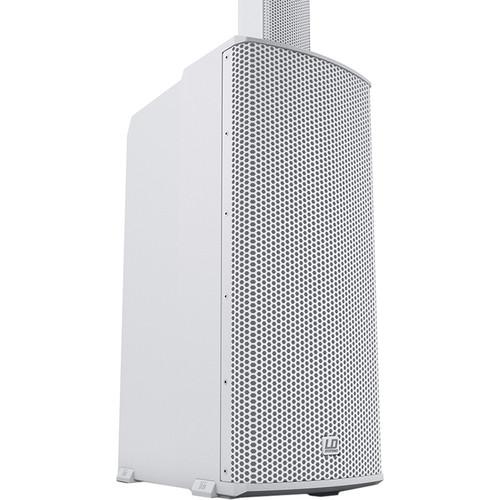

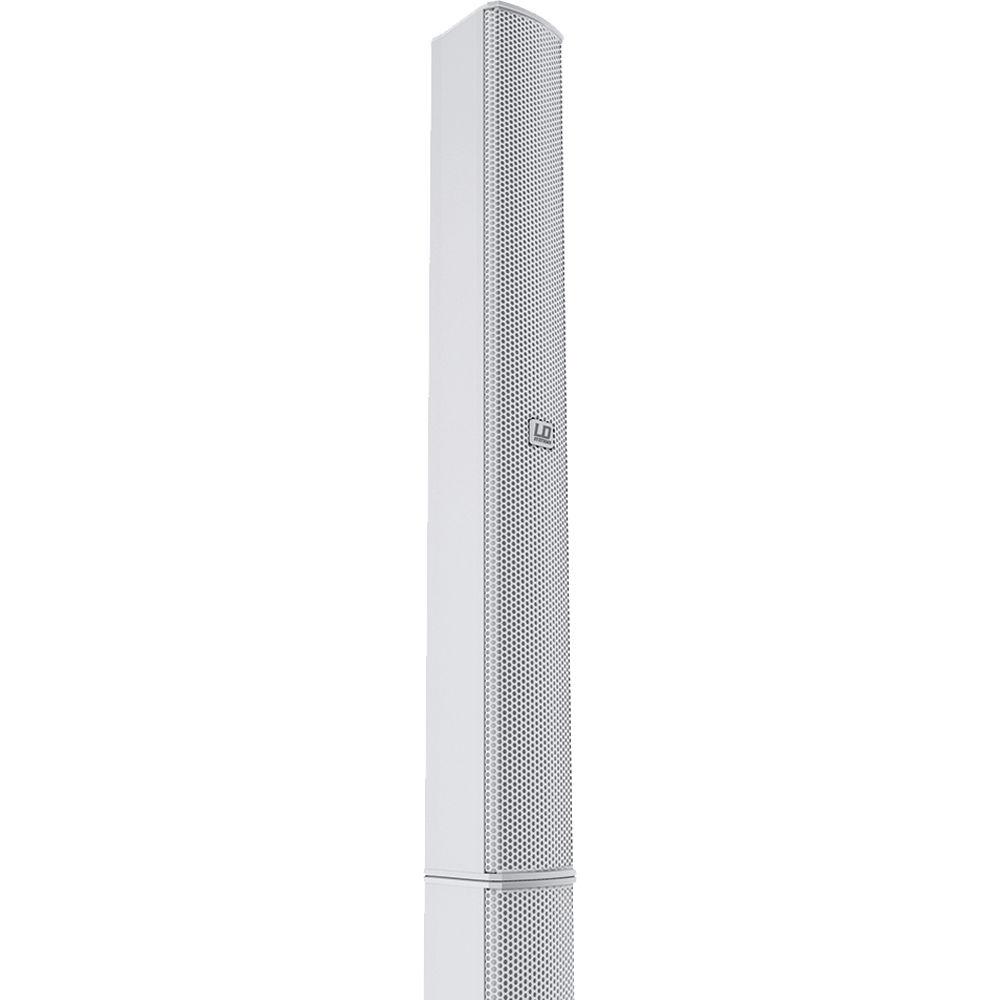

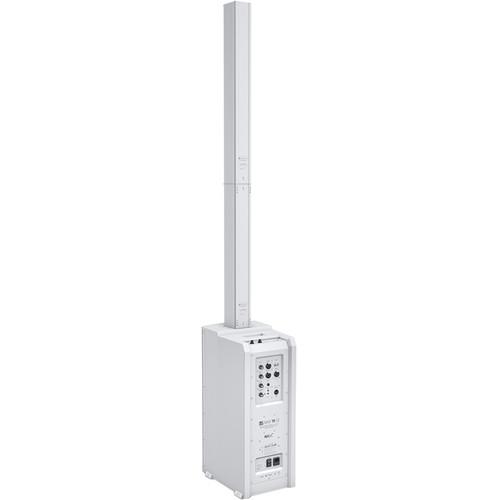

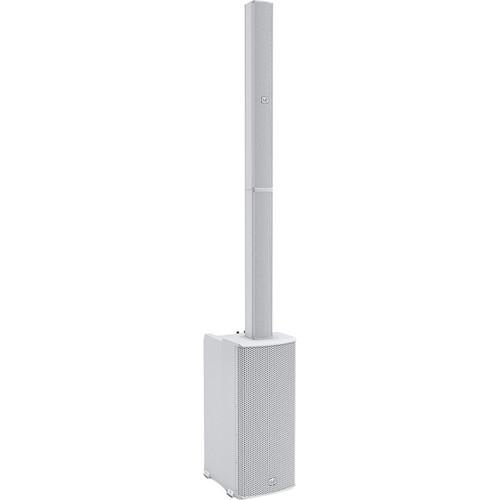

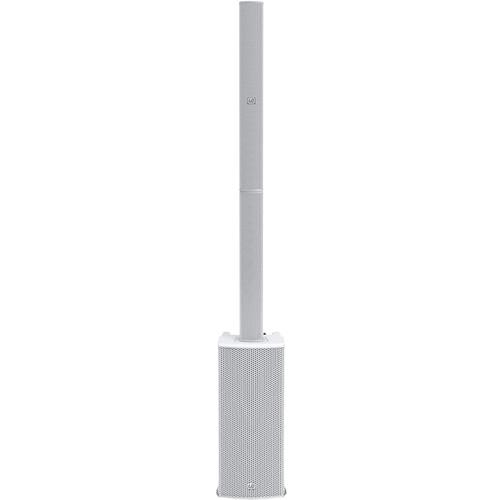

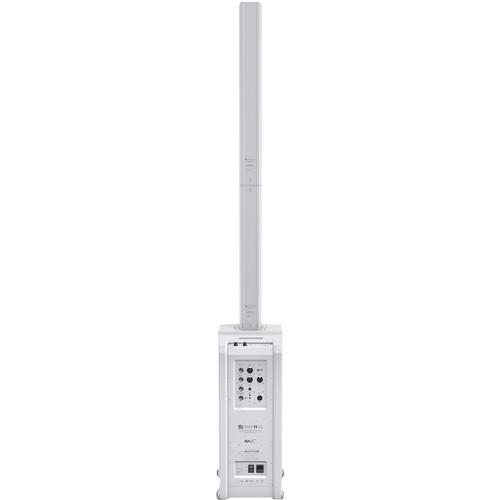

Product description 7 All-In-One Portable Speaker Systems for Special Events and Parties Read More The white MAUI 11 G2 from LD Systems is a portable, Class-D powered, vertical array system delivering 1000W of peak power with plug-and-play convenience. Featuring an integrated 4-channel mixer in the subwoofer base and a 3-piece column system, it can be used as an all-in-one solution for solo performers, small groups, mobile DJs corporate meetings, and more. The subwoofer enclosure houses three 6.5" subwoofers, as well as the system's Class-D amplification with overcurrent, short circuit, and thermal protection. The mixer offers Bluetooth technology for wireless streaming and includes inputs for a microphone, a stereo line input, and a hi-Z inputs for guitar and bass. Additionally, the Bluetooth receiver section also includes an 1/8" stereo input for connecting portable music players. The MAUI 11 G2 Portable PA system has individual level controls for subwoofer and master volumes, and features DynX DSP with built-in limiting, EQ, compression, and crossovers to help with room correction and ensures a properly balanced performance. It assembles in seconds with custom multi-pin connectors and will fit onto any car seat. In the Box LD Systems MAUI 11 G2 Portable Column PA System with Mixer and Bluetooth (White) IEC Power Cord Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the LD Systems MAUI 11 G2 Portable Column PA System with Mixer and Bluetooth in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLD Systems MAUI 11 G2 W Specs | | | Driver Size | Low/Mid: 3 x 6.5" / 165.1 mm | | Magnet | Ferrite | | Voice Coil | 1.5" / 38.1 mm | | Cabinet Construction | Vented | | Material of Construction | Cabinet Material: 0.6" / 15.0 mm plywood
Cabinet Surface: Texture paint | | | | Driver Size | Midrange: 8 x 3.0" / 76.2 mm
Tweeter: 2 x 1.0" / 25.4 mm | | Magnet | Midrange: Ferrite
Tweeter: Neodymium | | Voice Coil | Midrange: 1.0" / 25.4 mm
Tweeter: 1.0" / 25.4 mm | | Material of Construction | Cabinet Construction Mid/High: Closed
Mid/Hi System Cabinet Material: Aluminum
Mid/Hi System Cabinet Surface: HD coating | | Speaker Input | Custom-made multi-pin | | Horn Type | Waveguide | | | | Type | Class-D | | Output | RMS: 500 W

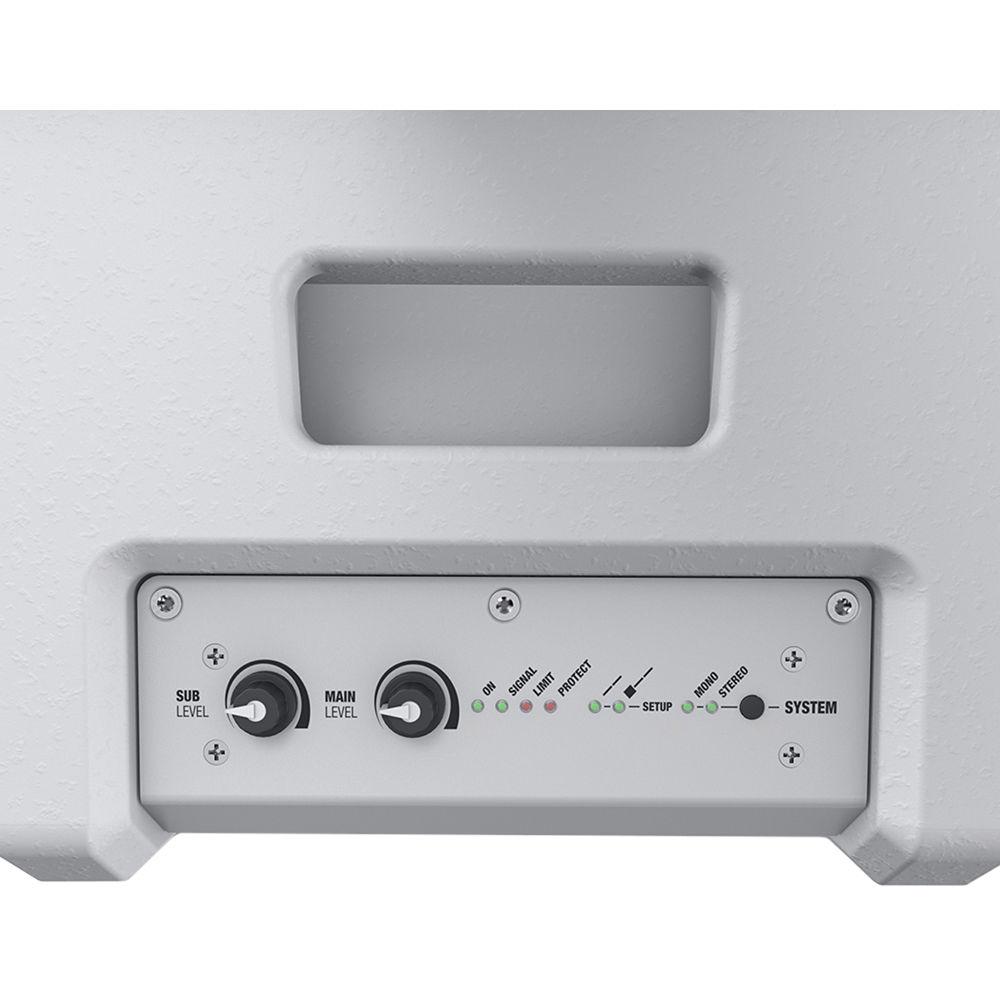

Peak: 1000 W | | Protection Circuits | Overcurrent, DSP multiband limiter, short circuit, thermal overload | | Cooling | Convection | | Controls | Hi-Z Level, Bluetooth Switch, MP3/Bluetooth Level, Mono/Stereo Switch, Line Level, Main Level, Power, Sub Level | | Indicators | On, limit, protect (protection circuit engaged), signal, setup, mono, stereo | | Line Input | 2 x Combo XLR-1/4" / 6.35 mm
2 x Stereo RCA | | Mic Input | 1 x Combo XLR-1/4" / 6.35 mm | | AUX Input | MP3: 1/8" / 3.5 mm stereo | | Hi-Z Input | 1/4" / 6.35 mm | | Loudspeaker | System Output: 1 x XLR | | DSP | Bit Depth AD/DA Converter: 24-bit | | Sample Rate | Internal: 48 kHz | | Signal to Noise Ratio (SNR) | 100 dB | | | | Type | PA Complete Systems: Active | | Max SPL Level | 124 dB | | Frequency Response | 50 Hz to 20 kHz | | Dispersion | Horizontal / Vertical: 120° / 20° | | Additional Features | 4-channel mixer
DynX DSP: Limiter, EQ, compressor, and crossover | | Bluetooth | Yes | | | | Operating Voltage | Switching Power Supply: 100 - 240 VAC, 50 - 60 Hz (automatic conversion) | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Humidity (Non-Condensing) | 10% to 80% | | Dimensions (W x H x D) | System Height: 79.9" / 2030.0 mm
Subwoofer: 11.2 x 25.6 x 14.7" / 285.0 x 650.0 x 373.0 mm
Mid/High: 3.8 x 24.4/28.7 x 4.1" / 96.0 x 620.0/730.0 x 104.0 mm | | Weight | System: 54.9 lb / 24.9 kg
Subwoofer: 37.3 lb / 16.9 kg
Mid/High: 5.4 lb / 2.6 kg |
