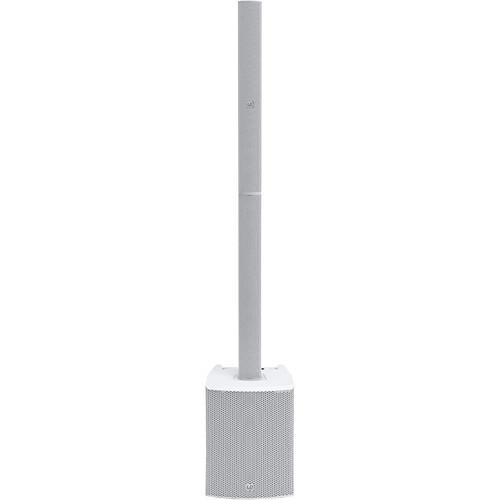

User Manual for LD Systems MAUI 28 G2 Compact Column PA System with Mixer and Bluetooth Click to enlarge the picture
Contents of the user manual for the LD Systems MAUI 28 G2 Compact
- Product category: Portable PA Systems LD Systems
- Brand: LD Systems
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for LD Systems Portable PA Systems
|
User manual for the LD Systems MAUI 28 G2 Compact contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any LD Systems product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official LD Systems user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a LD Systems product will considerably shorten its lifespan!
|
Product description 7 All-In-One Portable Speaker Systems for Special Events and Parties Read More The white MAUI 28 G2 Compact Column PA System with Mixer and Bluetooth from LD Systems is a portable, Class-D powered, vertical array system delivering 2000W of peak power with plug-and-play convenience. Featuring an integrated 4-channel mixer in the subwoofer base and a 2-piece column system, it can be used as an all-in-one solution for solo performers, small groups, mobile DJs corporate meetings, and more.The subwoofer enclosure houses two 8.0" subwoofers, as well as the system's Class-D amplification with overcurrent, short-circuit, and thermal protection. The mixer offers Bluetooth technology for wireless streaming and includes inputs for a microphone, a stereo line, and a hi-Z for guitar and bass. Additionally, the Bluetooth receiver section also includes an 1/8" stereo input for connecting portable music players.The MAUI 28 G2 Portable PA system has individual level controls for subwoofer and master volumes, and features DynX DSP with built-in limiting, EQ, compression, and crossovers to help with room correction and ensures a properly balanced performance. It assembles in seconds with custom multi-pin connectors and will fit onto any car seat. - One combo XLR-1/4" socket input for microphone
- One high-impedance 1/4" jack input for instruments such as an electric guitar or bass
- One 1/8" jack input for connecting MP3 players
- The MAUI 28 G2 system is equipped with RCA and combo XLR-1/4" sockets for connecting mixers, computers or other line-level sources like keyboards
- The line array configuration of the MAUI 28 G2 results in extended coverage, high feedback resistance, and extra-wide dispersion that lets you perform without the need for separate monitors
In the Box LD Systems MAUI 28 G2 Compact Column PA System with Mixer and Bluetooth (White) IEC Power Cord Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the LD Systems MAUI 28 G2 Compact Column PA System with Mixer and Bluetooth in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLD Systems MAUI 28 G2 Specs | | | Driver Size | Low/Mid: 2 x 8.0" / 203.2 mm | | Magnet | Ferrite | | Voice Coil | 2.0" / 50.8 mm | | Cabinet Construction | Vented | | Material of Construction | Cabinet Material: 0.6" / 15.0 mm plywood
Cabinet Surface: Texture paint | | | | Driver Size | Midrange: 16 x 3.0" / 76.2 mm
Tweeter: 2 x 1.0" / 25.4 mm | | Magnet | Midrange: Ferrite
Tweeter: Neodymium | | Voice Coil | Midrange: 1.0" / 25.4 mm
Tweeter: 1.0" / 25.4 mm | | Material of Construction | Cabinet Construction Mid/High: Closed
Mid/Hi System Cabinet Material: Aluminum
Mid/Hi System Cabinet Surface: HD coating | | Speaker Input | Custom-made multi-pin | | Horn Type | Waveguide | | | | Type | Class-D | | Output | RMS: 1000 W
Peak: 2000 W | | Protection Circuits | Short circuit, multiband limiter, thermal overload, DC protection | | Cooling | Convection | | Controls | Main Level, Hi-Z Level, Power, Bluetooth switch, Sub Level, MP3/Bluetooth Level, Mono/stereo switch, Line Level | | Indicators | Setup, limit, mono, signal, stereo, protect (protection circuit engaged), on | | Line Input | 2 x Combo XLR-1/4" / 6.35 mm
2 x Stereo RCA | | Mic Input | 1 x Combo XLR-1/4" / 6.35 mm | | AUX Input | MP3: 1/8" / 3.5 mm stereo | | Hi-Z Input | 1/4" / 6.35 mm | | Line Outputs | System Output: 1 x XLR
Sub Output: 1 x XLR | | DSP | Bit Depth AD/DA Converter: 24-bit | | Sample Rate | Internal: 48 kHz | | Signal to Noise Ratio (SNR) | 100 dB | | | | Type | PA Complete Systems: Active | | Max SPL Level | 126 dB | | Frequency Response | 45 Hz to 20 kHz | | Dispersion | Horizontal / Vertical: 120° / 20° | | Additional Features | 4-channel mixer
DynX DSP: Limiter, EQ, compressor, and crossover | | Bluetooth | Yes | | | | Operating Voltage | Switching Power Supply: 100 - 240 VAC, 50/60 Hz (automatic conversion) | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Humidity (Non-Condensing) | 10% to 80% | | Dimensions (W x H x D) | System Height: 81.1" / 2059.0 mm
Subwoofer: 14.6 x 19.1 x 18.9" / 370.0 x 484.0 x 480.0 mm
Mid/High: 3.8 x 30.7 / 31.3 x 4.1" / 96.0 x 780.0 / 795.0 x 104.0 mm | | Weight | System: 68.1 lb / 30.9 kg
Subwoofer: 43.4 lb / 19.7 kg | | | | Package Weight | 82.75 lb | | Box Dimensions (LxWxH) | 36.3 x 24.2 x 19.0" |
