LD Systems MAUI 28 G2 Compact

Search your instruction manual in PDF to download

User Manual for LD Systems MAUI 28 G2 Compact Column PA System with Mixer and Bluetooth

Click to enlarge the picture
LD Systems MAUI 28 G2 Compact Column PA System with Mixer and Bluetooth Contents of the user manual for the LD Systems MAUI 28 G2 Compact
  • Product category: Portable PA Systems LD Systems
  • Brand: LD Systems
  • Description and content of package
  • Technical information and basic settings
  • Frequently asked questions – FAQ
  • Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
  • Authorized service for LD Systems Portable PA Systems

LD Systems MAUI 28 G2 Compact Column PA System with Mixer and Bluetooth LD Systems MAUI 28 G2 Compact Column PA System with Mixer and Bluetooth LD Systems MAUI 28 G2 Compact Column PA System with Mixer and Bluetooth LD Systems MAUI 28 G2 Compact Column PA System with Mixer and Bluetooth LD Systems MAUI 28 G2 Compact Column PA System with Mixer and Bluetooth LD Systems MAUI 28 G2 Compact Column PA System with Mixer and Bluetooth LD Systems MAUI 28 G2 Compact Column PA System with Mixer and Bluetooth LD Systems MAUI 28 G2 Compact Column PA System with Mixer and Bluetooth LD Systems MAUI 28 G2 Compact Column PA System with Mixer and Bluetooth
User manual for the LD Systems MAUI 28 G2 Compact contain basic instructions that need to be followed during installation and operation. Before starting your appliance, the user manual should be read through carefully. Follow all the safety instructions and warnings, and be guided by the given recommendations. User manual is an integral part of any LD Systems product, and if it is sold or transferred, they should be handed over jointly with the product. Following the instructions for use is an essential prerequisite for protecting health and property during use, as well as recognition of liability on the part of the manufacturer for possible defects should you make a warranty claim. Download an official LD Systems user manual in which you will find instructions on how to install, use, maintain and service your product.

And do not forget – unsuitable use of a LD Systems product will considerably shorten its lifespan!



Product description

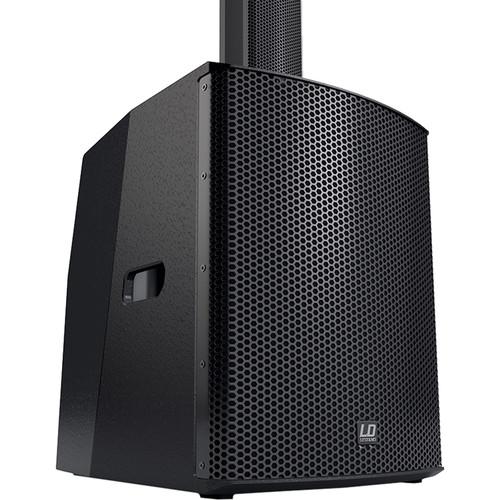

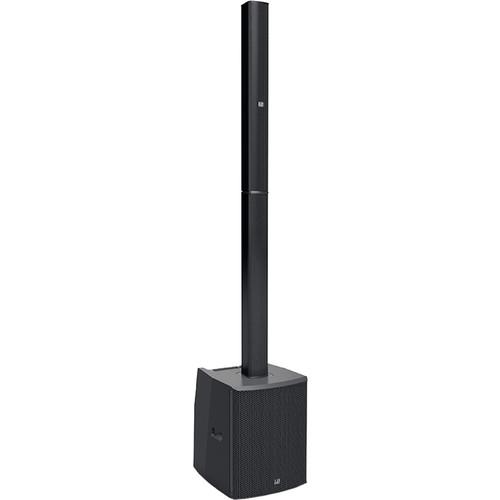

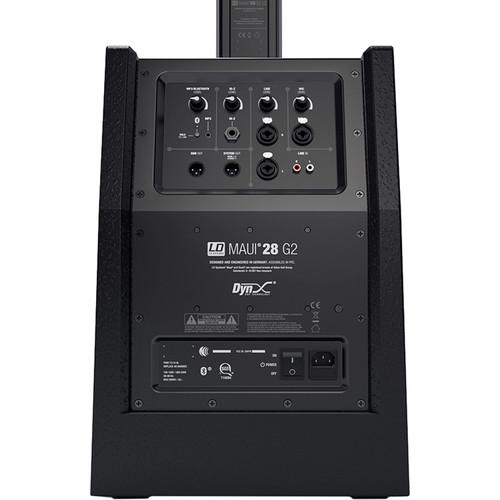

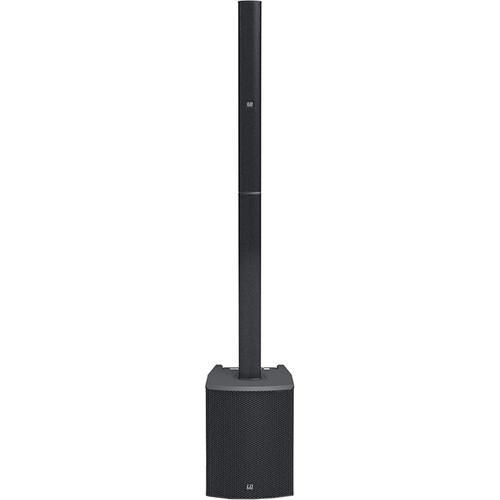

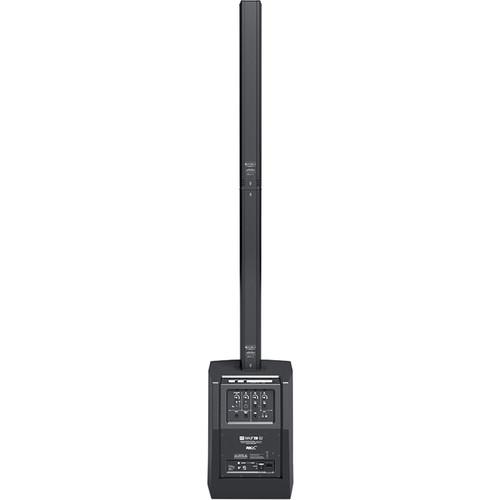

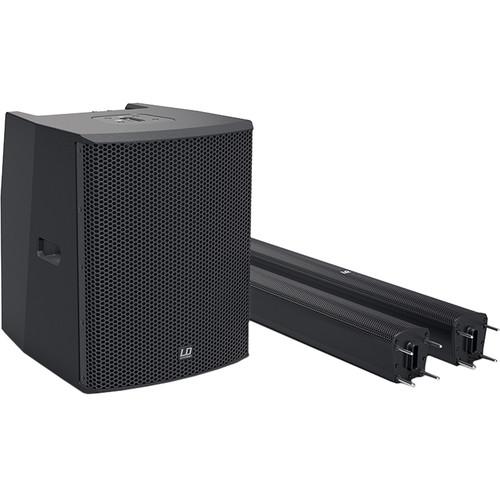

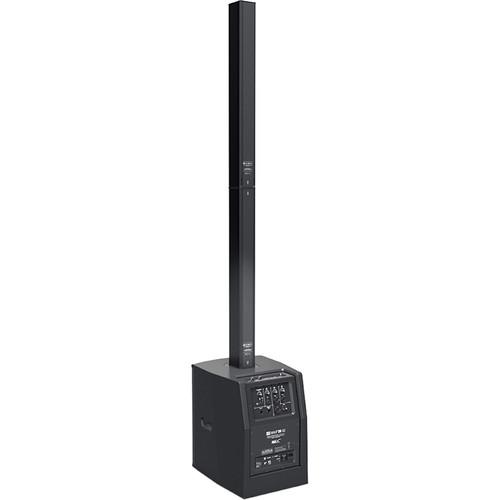

7 All-In-One Portable Speaker Systems for Special Events and Parties Read More The black MAUI 28 G2 Compact Column PA System with Mixer and Bluetooth from LD Systems is a portable, Class-D powered, vertical array system delivering 2000W of peak power with plug-and-play convenience. Featuring an integrated 4-channel mixer in the subwoofer base and a 2-piece column system, it can be used as an all-in-one solution for solo performers, small groups, mobile DJs corporate meetings, and more.The subwoofer enclosure houses two 8.0" subwoofers, as well as the system's Class-D amplification with overcurrent, short-circuit, and thermal protection. The mixer offers Bluetooth technology for wireless streaming and includes inputs for a microphone, a stereo line, and a hi-Z for guitar and bass. Additionally, the Bluetooth receiver section also includes an 1/8" stereo input for connecting portable music players.The MAUI 28 G2 Portable PA system has individual level controls for subwoofer and master volumes, and features DynX DSP with built-in limiting, EQ, compression, and crossovers to help with room correction and ensures a properly balanced performance. It assembles in seconds with custom multi-pin connectors and will fit onto any car seat.

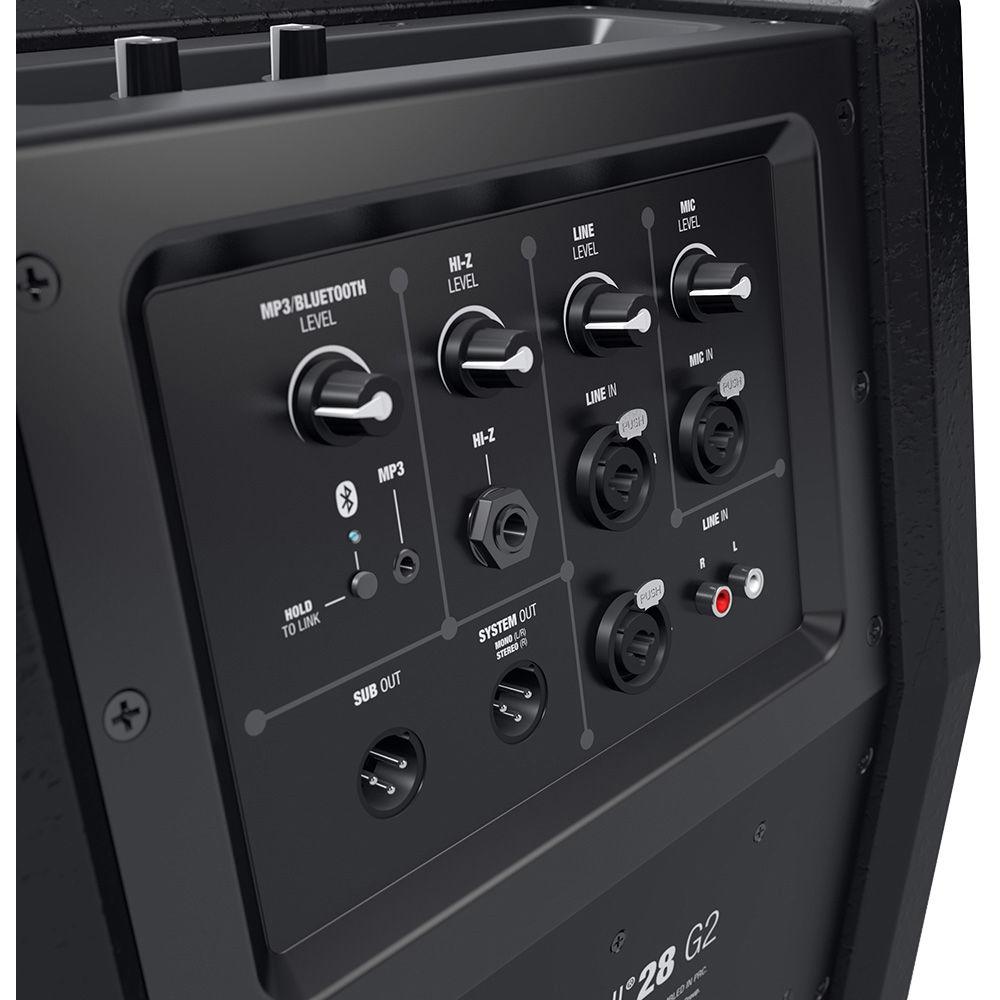

  • One combo XLR-1/4" socket input for microphone
  • One high-impedance 1/4" jack input for instruments such as an electric guitar or bass
  • One 1/8" jack input for connecting MP3 players
  • The MAUI 28 G2 system is equipped with RCA and combo XLR-1/4" sockets for connecting mixers, computers or other line-level sources like keyboards
  • The line array configuration of the MAUI 28 G2 results in extended coverage, high feedback resistance, and extra-wide dispersion that lets you perform without the need for separate monitors
In the Box LD Systems MAUI 28 G2 Compact Column PA System with Mixer and Bluetooth (Black)
  • IEC Power Cord
  • Limited 2-Year Warranty
  • Table of Contents




    Upload User Manual

    Have you got an user manual for the LD Systems MAUI 28 G2 Compact Column PA System with Mixer and Bluetooth in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:





    OR

    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: PDF)

    0%


    Technical parameters

    LD Systems MAUI 28 G2 Specs

    Driver Size Low/Mid: 2 x 8.0" / 203.2 mm
    Magnet Ferrite
    Voice Coil 2.0" / 50.8 mm
    Cabinet Construction Vented
    Material of Construction Cabinet Material: 0.6" / 15.0 mm plywood
    Cabinet Surface: Texture paint

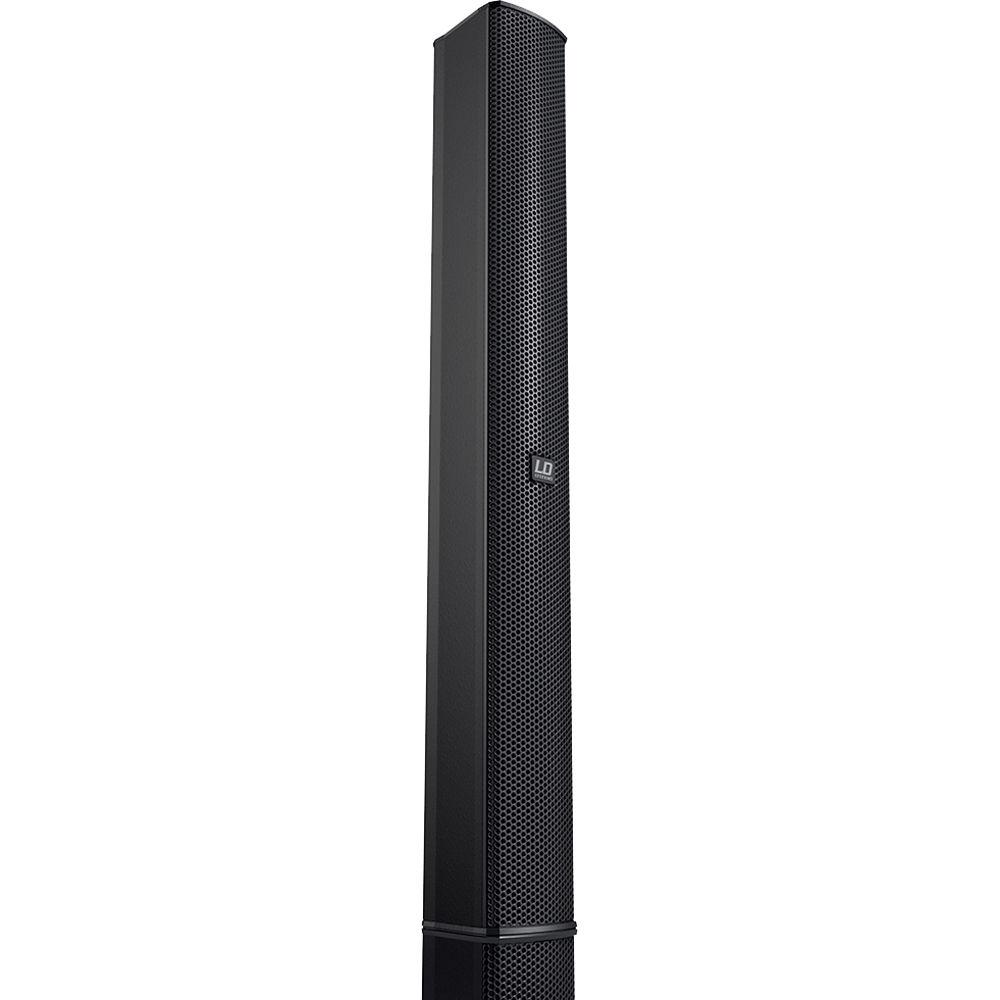

    Driver Size Midrange: 16 x 3.0" / 76.2 mm
    Tweeter: 2 x 1.0" / 25.4 mm
    Magnet Midrange: Ferrite
    Tweeter: Neodymium
    Voice Coil Midrange: 1.0" / 25.4 mm
    Tweeter: 1.0" / 25.4 mm
    Material of Construction Cabinet Construction Mid/High: Closed
    Mid/Hi System Cabinet Material: Aluminum
    Mid/Hi System Cabinet Surface: HD coating
    Speaker Input Custom-made multi-pin
    Horn Type Waveguide
    Type Class-D
    Output RMS: 1000 W
    Peak: 2000 W
    Protection Circuits Short circuit, multiband limiter, thermal overload, DC protection
    Cooling Convection

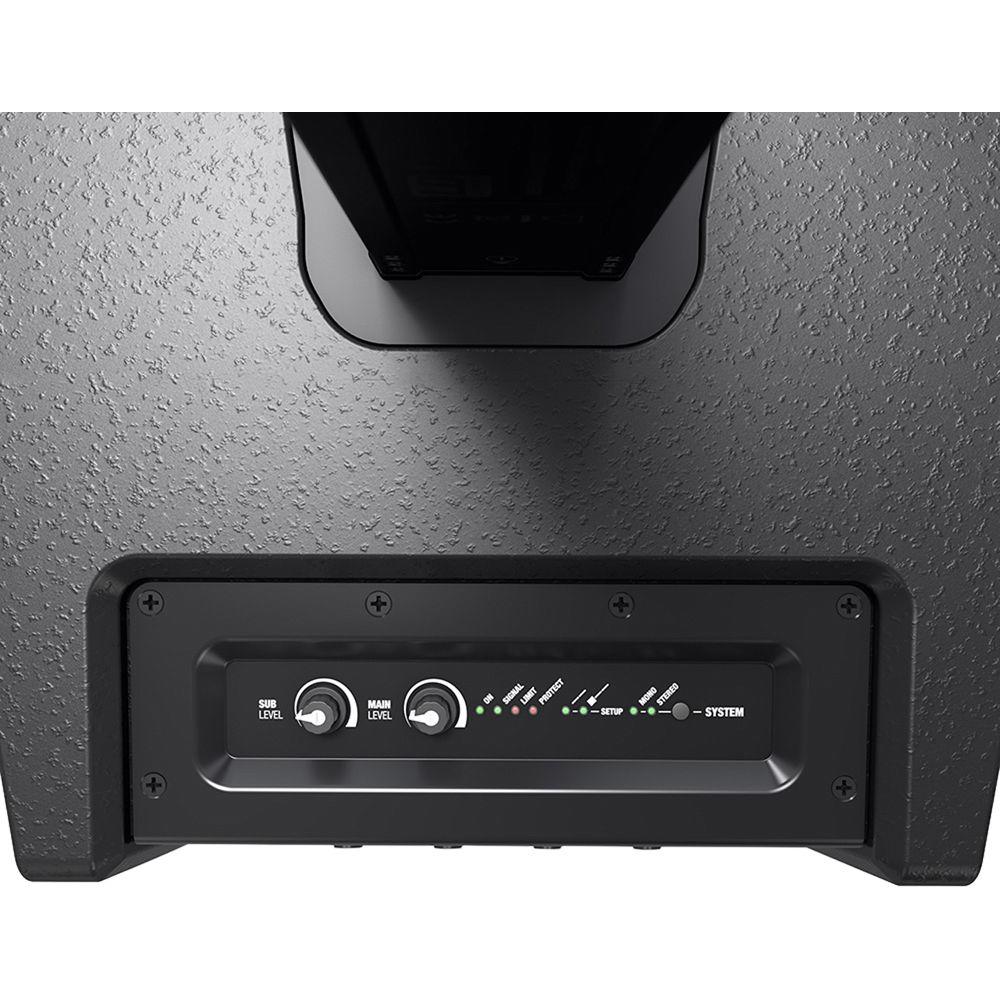

    Controls Main Level, Hi-Z Level, Power, Bluetooth switch, Sub Level, MP3/Bluetooth Level, Mono/stereo switch, Line Level
    Indicators Setup, limit, mono, signal, stereo, protect (protection circuit engaged), on
    Line Input 2 x Combo XLR-1/4" / 6.35 mm
    2 x Stereo RCA
    Mic Input 1 x Combo XLR-1/4" / 6.35 mm
    AUX Input MP3: 1/8" / 3.5 mm stereo
    Hi-Z Input 1/4" / 6.35 mm
    Line Outputs System Output: 1 x XLR
    Sub Output: 1 x XLR
    DSP Bit Depth AD/DA Converter: 24-bit
    Sample Rate Internal: 48 kHz
    Signal to Noise Ratio (SNR) 100 dB
    Type PA Complete Systems: Active
    Max SPL Level 126 dB
    Frequency Response 45 Hz to 20 kHz
    Dispersion Horizontal / Vertical: 120° / 20°
    Additional Features 4-channel mixer
    DynX DSP: Limiter, EQ, compressor, and crossover
    Bluetooth Yes
    Operating Voltage Switching Power Supply: 100 - 240 VAC, 50/60 Hz (automatic conversion)
    Operating Temperature 32 to 104°F / 0 to 40°C
    Humidity (Non-Condensing) 10% to 80%
    Dimensions (W x H x D) System Height: 81.1" / 2059.0 mm
    Subwoofer: 14.6 x 19.1 x 18.9" / 370.0 x 484.0 x 480.0 mm
    Mid/High: 3.8 x 30.7 / 31.3 x 4.1" / 96.0 x 780.0 / 795.0 x 104.0 mm
    Weight System: 68.1 lb / 30.9 kg
    Subwoofer: 43.4 lb / 19.7 kg
    Package Weight 52.95 lb
    Box Dimensions (LxWxH) 24.0 x 23.0 x 19.0"

    Rating

    100% users recommend this product to others. And what about you?
    Rating: 5.0 of 5

    This product has already been rated by 58 owners. Add your rating and experience with the product.

    Discussion

    Discussion Ask our technicians if you have a problem with your settings, or if anything is unclear in the user manual you have downloaded. You can make use of our moderated discussion. The discussion is public and helps other users of our website who may be encountering similar problems.

    Post new comment to LD Systems MAUI 28 G2 Compact Column PA System with Mixer and Bluetooth

    Subject: Powers Up But No Sound
    Date: 28.07.2022 16:29:55Name: ralph L Wall
    Connected to Mackie Profx12v2 Mixer and suddenly no sound output. All lights are on showing power.
    Post reply

    Subject: Maui 28 LD power problem
    Date: 06.03.2022 12:45:47Name: Paul Greene
    All of a sudden while I was performing the system just stopped and there was no lights on but still switched on also made a constant clicking sound, can you help. Thanks
    Post reply

    Subject: LD Maui 28G2
    Date: 20.02.2022 07:43:37Name: Glenn Kennedy
    I have no line out on system or sub out suddenly. Any help would be appreciated.
    Many thanks
    Post reply

    Subject: ld systems maui 28 g2
    Date: 02.08.2021 20:58:26Name: jeff mcconnell
    i have right channel out on rca and xlr problem on main input pcb do you sell that part or svc data to repair please and thank you
    Post reply
