User Manual for LD Systems MAUI 5 GO BC Exchangeable Battery Column Section for Maui 5 Go PA System Click to enlarge the picture
Contents of the user manual for the LD Systems MAUI 5 GO BC
- Product category: Batteries, Power & Cables LD Systems
- Brand: LD Systems
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for LD Systems Batteries, Power & Cables
 |
User manual for the LD Systems MAUI 5 GO BC contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any LD Systems product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official LD Systems user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a LD Systems product will considerably shorten its lifespan!
|

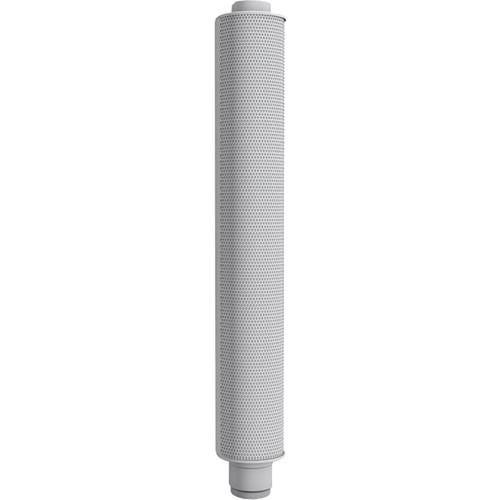

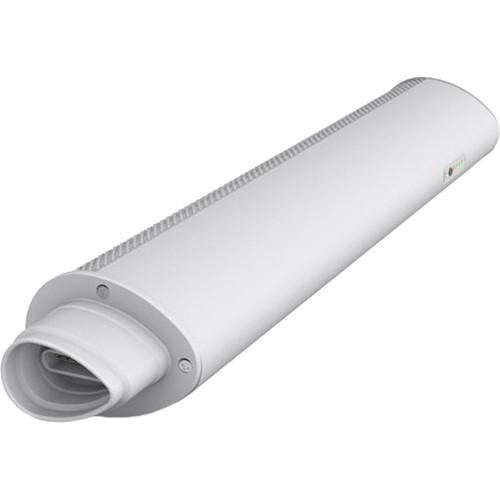

Product description The white LD Systems MAUI 5 GO BC is a column section with a built-in battery for the Maui 5 Go ultra-portable PA system. The column can be used as a substitute for an installed column section with a spent battery, or to extend the playing time of the PA system during battery operation.The MAUI 5 GO BC features a rechargeable, 5200 mAh lithium-ion battery pack that provides up to 6 hours of full-power system performance or up to 10 hours of operation at half power, with a 3-hour charging time. The column uses the company's proprietary Quick-Swap technology for fast and easy replacement, even while the system is in operation. A switchable 4-segment LED indicator enables convenient status monitoring. In the Box LD Systems MAUI 5 GO BC Exchangeable Battery Column Section for Maui 5 Go PA System (White) Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the LD Systems MAUI 5 GO BC Exchangeable Battery Column Section for Maui 5 Go PA System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLD Systems LDS-MAUI5GOBCW Specs | Compatibility | MAUI 5 GO PA system | | Battery Capacity | 5200 mAh | | Nominal Voltage | 29.6 V | | Discharge Current | Maximum: 10 A
Normal: 2.5 A | | Charging Current | 2.5 A | | Battery Type | Lithium-ion, manufactured by LG Chem | | Battery Operation Time | 10 hours at 50% output, 6 hours at 100% output (at maximum load) | | Charging Time | 3 hours up to 100%
2 hours up to 80% | | Status Indicator | Switchable 4-segment LED indicator | | Connection | Multi-pin connectors with Quick-Swap proprietary technology | | Dimensions (W x H x D) | 3.23 x 23.62 x 4.13" / 82 x 600 x 105 mm | | Weight | 2.4 lb / 1.1 kg |
Rating80% users recommend this product to others. And what about you?
This product has already been rated by 67 owners. Add your rating and experience with the product.
Discussion
Ask our technicians if you have a problem with your settings,
or if anything is unclear in the user manual you have downloaded.
You can make use of our moderated discussion.
The discussion is public and helps other users of our website who may be encountering similar problems.
Post new comment to LD Systems MAUI 5 GO BC Exchangeable Battery Column Section for Maui 5 Go PA System
| Subject: LD Maui 5 | | Date: 09.01.2022 20:47:03 | Name: Peter John Sparks | Is it possible to convert this model to battery operation? Many thanks
Peter Sparks | | Post reply |
