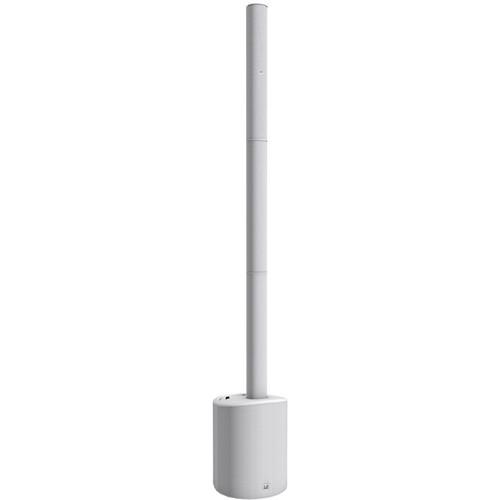

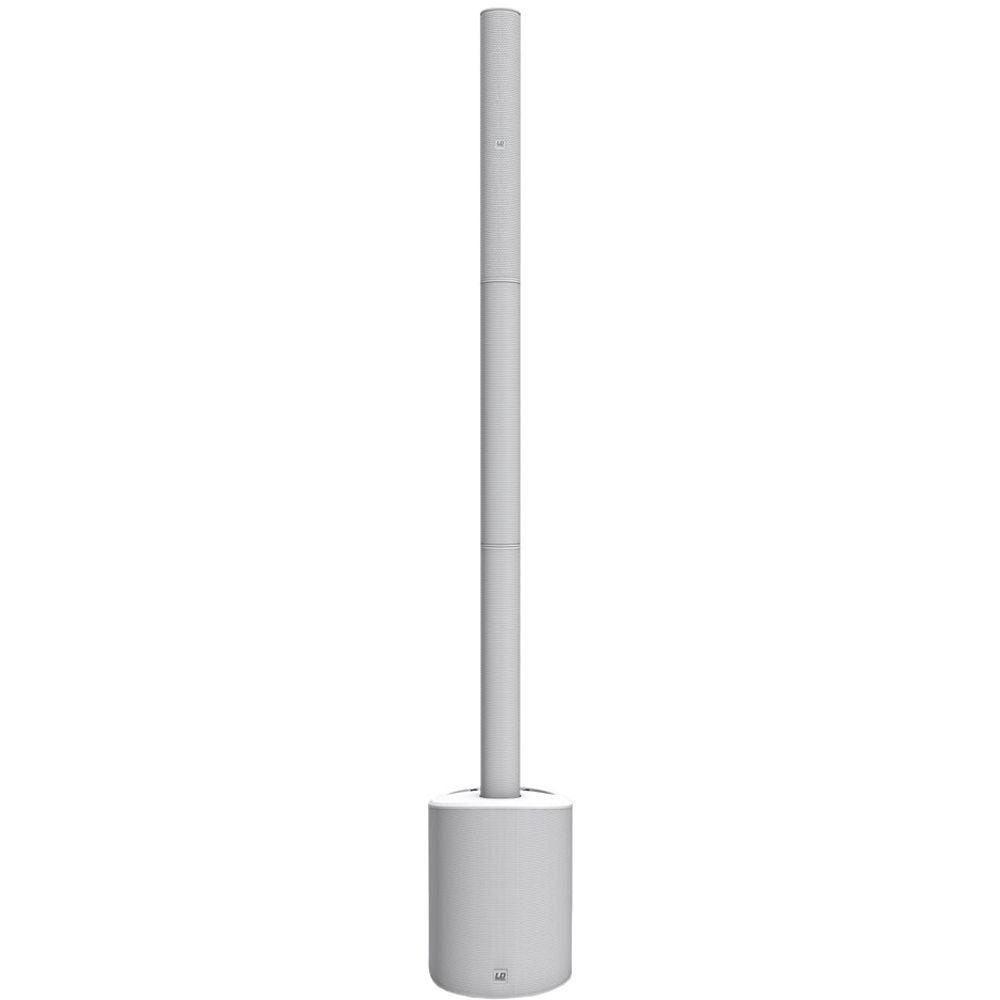

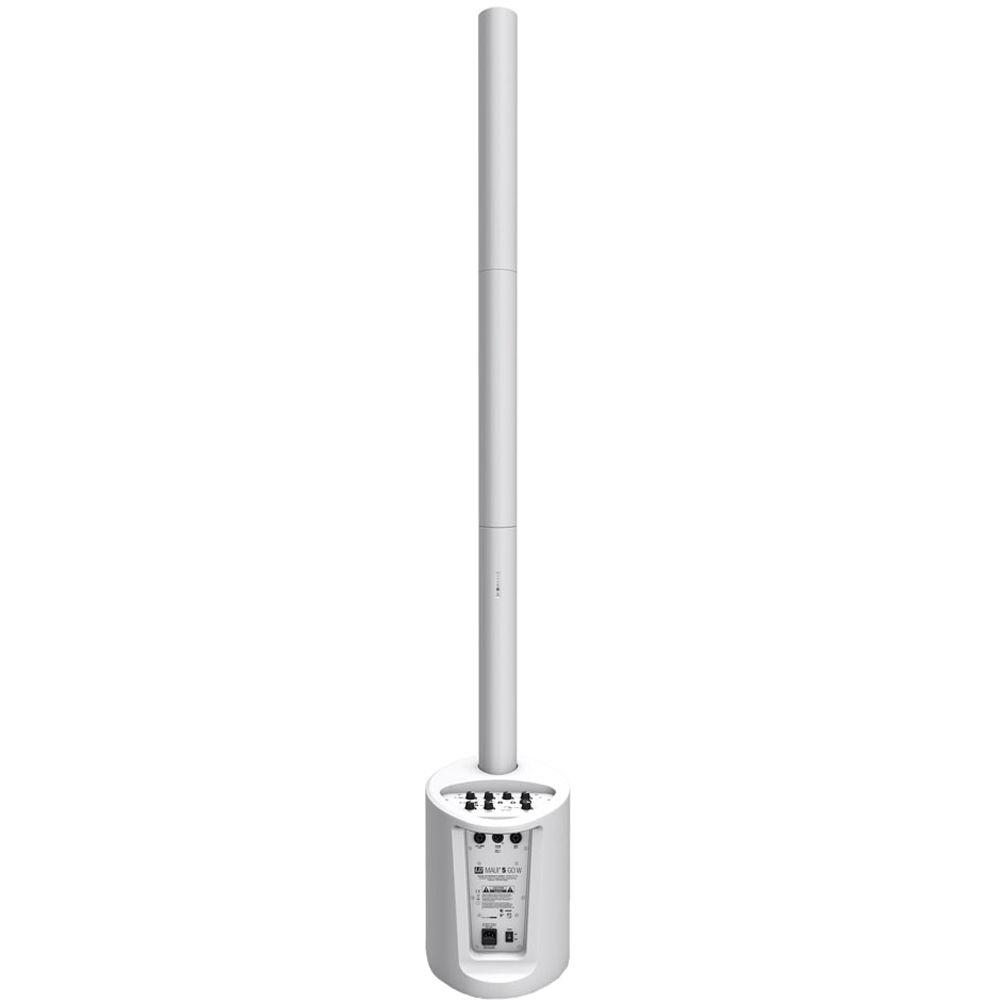

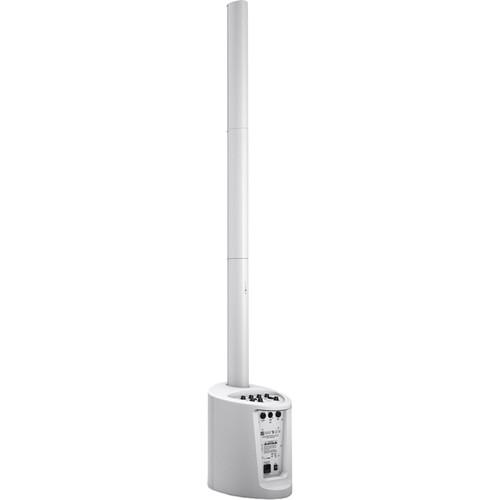

Product description 7 All-In-One Portable Speaker Systems for Special Events and Parties Read More The white, LD Systems MAUI 5 GO is an ultra-portable, battery-operated column PA system powered by a high-capacity lithium-ion pack, which provides up to 30 hours of continuous performance on a full charge. The system features a built-in Bluetooth receiver for stereo audio streaming, a microphone input, a Hi-Z instrument input, an aux input, and an integrated four-channel mixer with proprietary LECC DSP processing. With a four-driver line-array design and an 8" subwoofer, the MAUI 5 GO delivers 800W of peak power with extended coverage and wide dispersion, ideal for street musicians or for speech and music reinforcement at private and corporate events. The system comprises a subwoofer cabinet and a three-section column. Lightweight (at 27 lb) and easy to transport, it assembles in seconds using custom, multi-pin connectors. The battery section uses the company's proprietary Quick-Swap technology for fast and easy replacement (even while the system is in operation), allowing you to perform without time limit. The built-in digital signal processing with multiband limiter, equalizer, compressor, and crossover functions ensures optimum audio playback with maximum clarity, while protecting the MAUI 5 GO from overload. - Key Features
-
- All-in-one, portable PA system ideal for street musicians or for speech and music reinforcement at private and corporate events
- For crowds of over 100 people
- 200W RMS / 800W peak power
- Four-piece design assembles in seconds with custom multi-pin connectors
- High-capacity, rechargeable lithium-ion battery with Quick-Swap technology provides up to 30 hours of continuous performance on a full charge
- Lightweight (at 27 lb) and easy to transport
- 8" subwoofer with bass-reflex cabinet
- Line-array design with four drivers provides extended coverage with wide dispersion

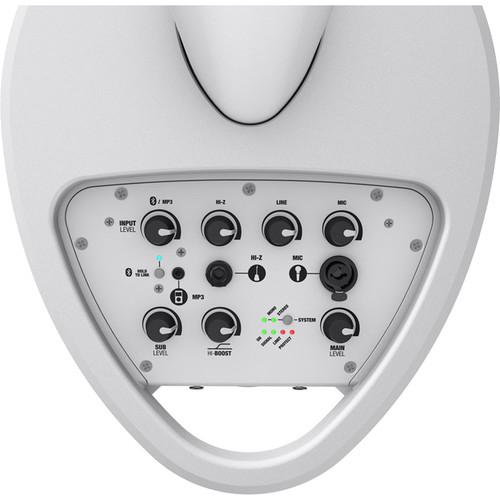

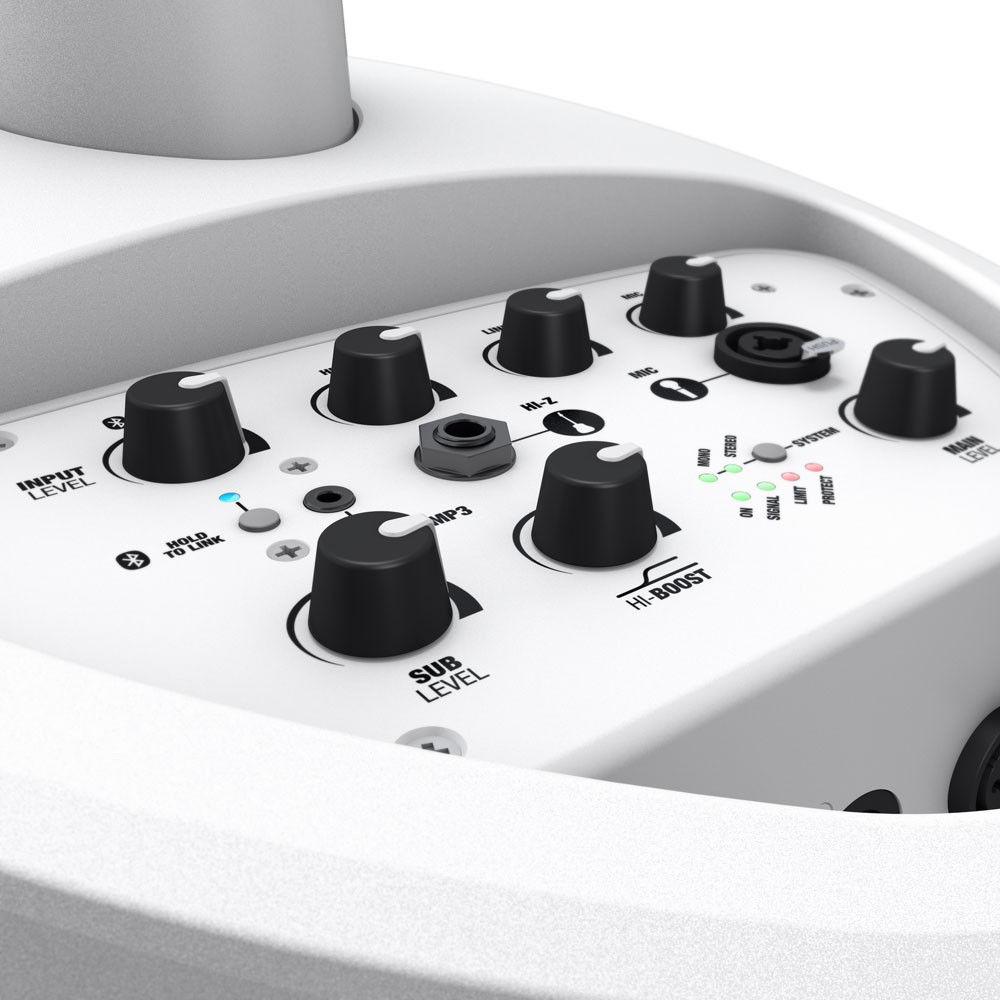

- Integrated 4-channel mixer provides separate volume controls for the input channels, sum, and subwoofer
- Built-in Bluetooth receiver
- Microphone input with low-cut filter
- Hi-Z instrument and aux line inputs
- Proprietary LECC digital signal processing: Multiband limiter, equalizer, compressor, crossover functions
- Variable high-frequency boost at 100 Hz
- Standby mode
- Components
-

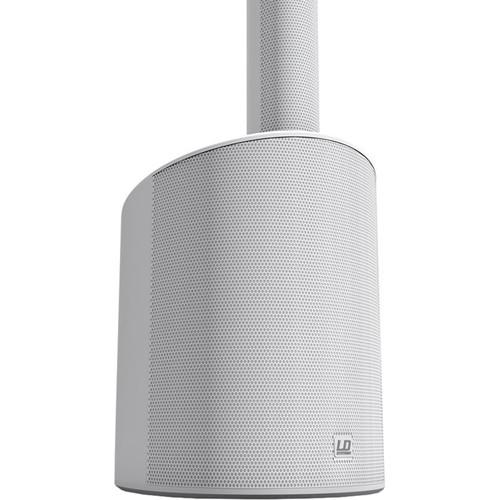

- Subwoofer with integrated electronics for all system components, including a charging module for charging the battery and a connection for the column sections on the top side

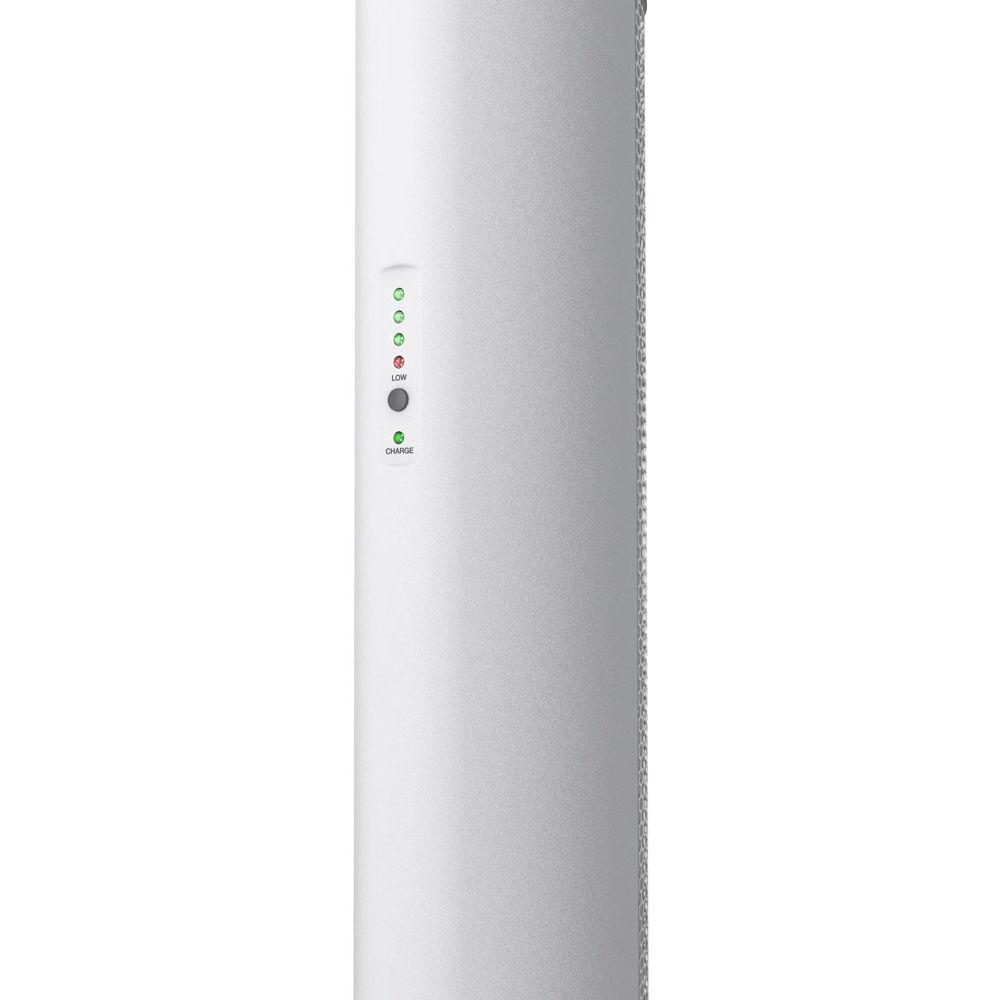

- Battery section with integrated rechargeable battery, charging status display, and connections on the underside and top side
- Spacer section with connections on the underside and top side

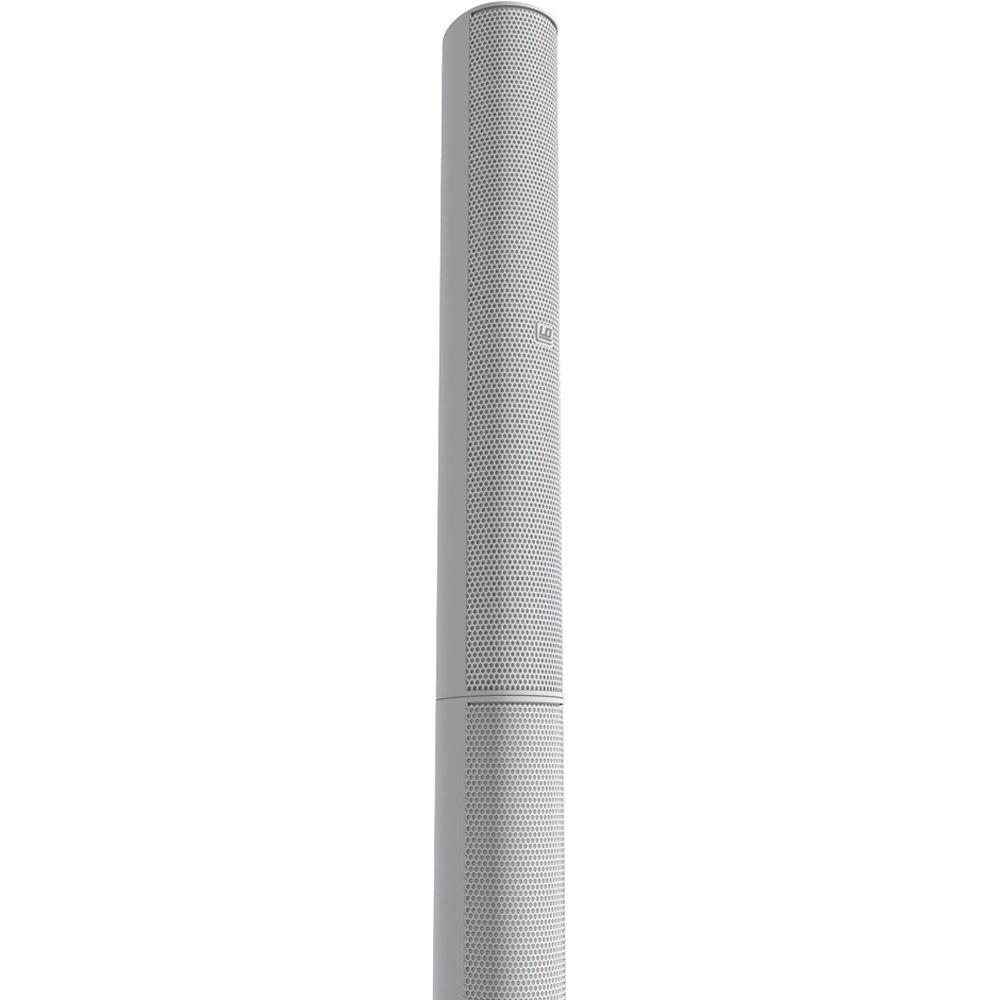

- Speaker section with 4-driver line-array speaker and connector on the underside
In the Box LD Systems MAUI 5 GO Ultra-Portable Battery-Powered Column PA System (White) IEC Power Cord Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the LD Systems MAUI 5 GO Ultra-Portable Battery-Powered Column PA System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLD Systems LDS-MAUI5GOW Specs | Subwoofer | Driver: 1 x 8" / 203.2 mm, bass-reflex cabinet | | Vertical Array | Drivers: 4 x 2.8" / 71.1 mm | | Components | Subwoofer
Rechargeable battery section
Spacer section
Speaker section | | Power Output | RMS: 2 x 100 W
Peak: 2 x 400 W | | Amplification | Class-D | | Dispersion | Horizontal x Vertical: 120 x 20° | | Rechargeable Battery | Type: Lithium-ion
Current: 5200 mAh
Voltage: 29.6 V, nominal
Brand: LG

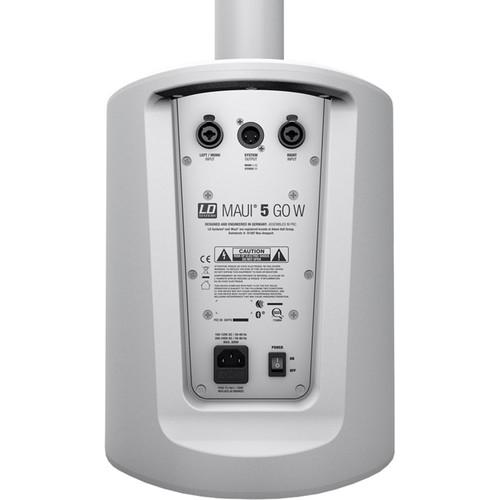

Protection: Protective circuits prevent overcharging and deep discharge | | Frequency Response | 50 Hz to 20 kHz | | Max SPL Level | Peak: 120 dB | | Bluetooth | Yes | | Subwoofer Connectors | Line Input: 2 x combo XLR-1/4" / 6.3 mm
Mic Input: 1 x combo XLR-1/4" / 6.3 mm
Aux Input: 1/8" / 3.5 mm jack
Hi-Z Instrument Input: 1/4" / 6.3 mm jack
System Out: 1 x XLR, male | | Indicators | Mixer: On, signal, limit, protect, Bluetooth, mono/stereo
Battery: Battery status, charge | | DSP | Proprietary LECC DSP technology
AD/DA Converter: 24-bit
Sampling Frequency: 48 kHz | | Protection | DSP-based multiband limiter
Short circuit
Over current
Overheating | | Charging Electronics | Integrated in subwoofer | | Power Supply | SMPS | | Power Connector | IEC | | Operating Voltage | 110-120 VAC, 50/60 Hz
220-240 VAC, 50/60 Hz (automatic changeover) | | Power Consumption | 300 W, maximum | | Column Connectors | Custom-made multi-pin connectors | | Operating Temperature | 32 to 122°F / 0 to 50°C | | Humidity Range | 10 to 70% rel. (non-condensing) | | Material of Construction | ABS plastic | | Cabinet Color | White | | Dimensions (W x H x D) | Subwoofer: 12.0 x 15.9 x 15.6" / 305 x 405 x 395 mm
Column: 3.2 x 21.1 x 4.1" / 82 x 535 x 105 mm
Overall Height: 78.1" / 198.5 cm | | Weight | Subwoofer: 18.7 / 8.5 kg
Battery Column: 3.7 / 1.7 kg
Spacer Column: 1.7 lb / 0.8 kg
Speaker Column: 2.8 / 1.3 kg
Total Weight: 27.1 / 12.3 kg | | | | Package Weight | 34.6 lb | | Box Dimensions (LxWxH) | 25.5 x 22.5 x 15.3" |
