User Manual for LD Systems MAUI 5 Ultra-Portable Column PA System with Mixer and Bluetooth Click to enlarge the picture
Contents of the user manual for the LD Systems MAUI 5 Ultra-Portable Column
- Product category: Portable PA Systems LD Systems
- Brand: LD Systems
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for LD Systems Portable PA Systems
 |
User manual for the LD Systems MAUI 5 Ultra-Portable Column contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any LD Systems product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official LD Systems user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a LD Systems product will considerably shorten its lifespan!
|

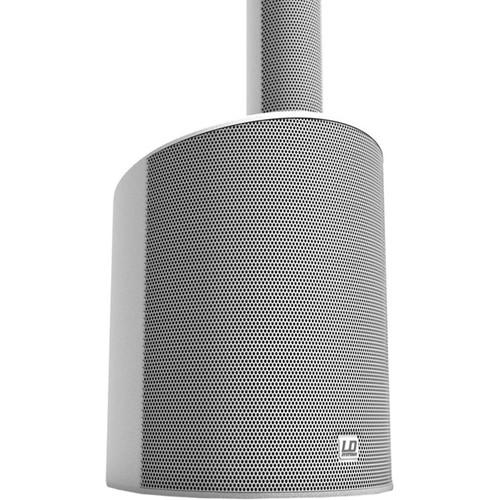

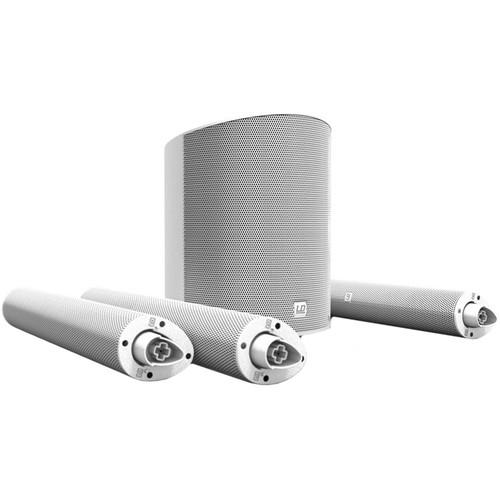

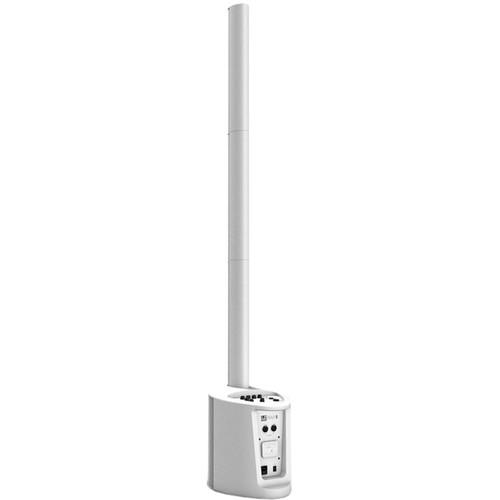

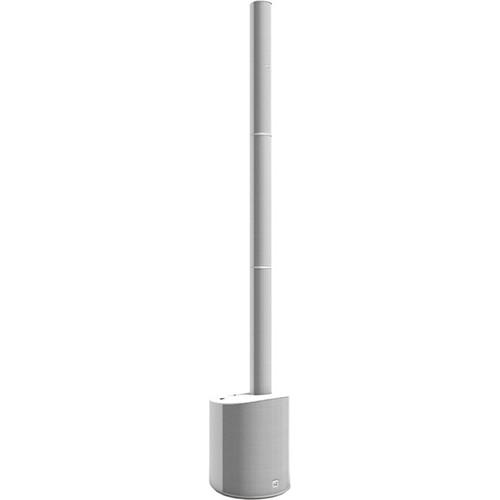

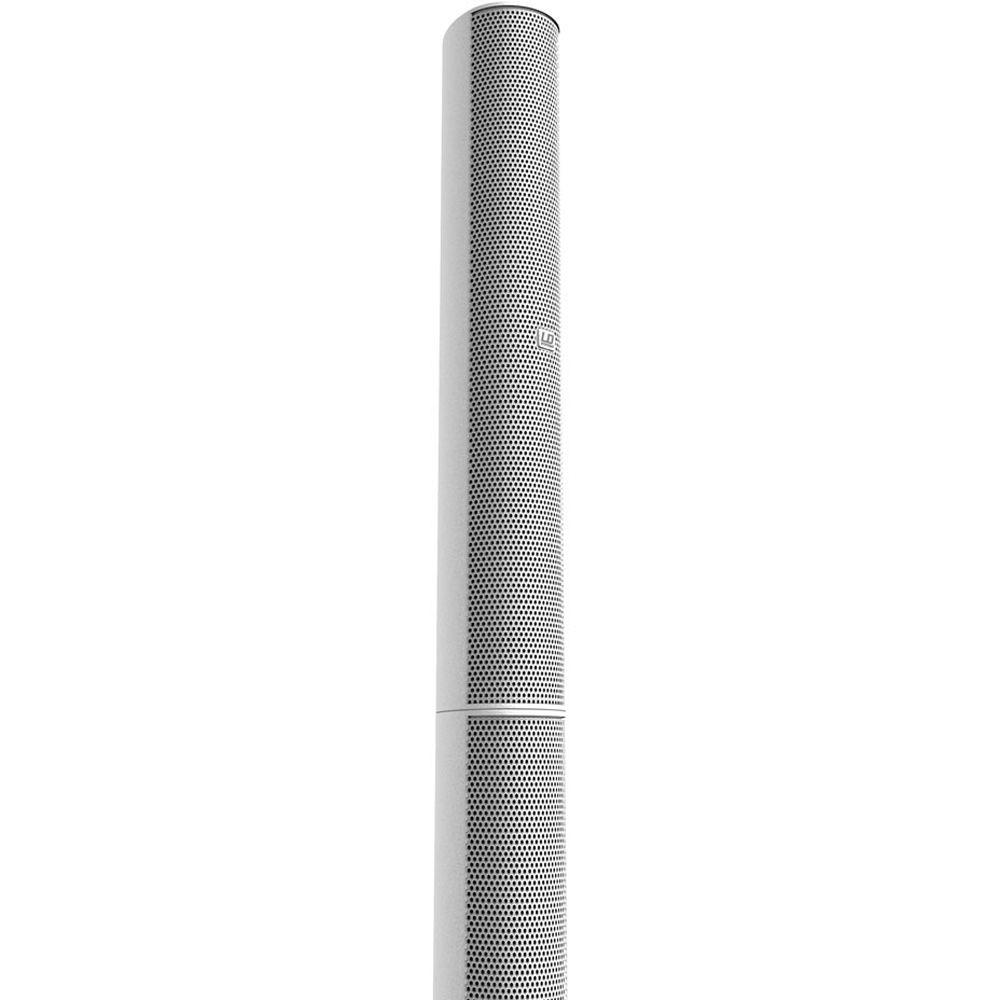

Product description 7 All-In-One Portable Speaker Systems for Special Events and Parties Read More The white MAUI 5 from LD Systems is a Class-D powered vertical array system delivering 800W of peak power with plug-and-play convenience. Featuring an integrated 4-channel mixer in the subwoofer base and a 3-piece column system, it can be used as an all-in-one solution for solo performers, small groups, mobile DJs corporate meetings, and more. The vented 8" subwoofer also houses the system's Class-D amplification with overcurrent, short circuit, and thermal protection. Furthermore, the mixer unit has Bluetooth technology for wireless streaming and is built with microphone, line level and hi-Z inputs, which can be used simultaneously. Connecting to a variety of sources, the PA system easily hooks up to music players and instruments such as keyboards or guitars. Finally, the MAUI 5 Ultra-Portable PA system has individual level controls for subwoofer and master volumes, and it has high-shelf filtering for room correction enabling a perfectly balanced performance. It assembles in seconds with custom multi-pin connectors and will fit onto any car seat. In the Box LD Systems MAUI 5 Ultra-Portable Column PA System with Mixer and Bluetooth (White) Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the LD Systems MAUI 5 Ultra-Portable Column PA System with Mixer and Bluetooth in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLD Systems Maui 5 Specs | | | Driver Size | Low/Mid: 8" (203.2 mm) | | Magnet | Ferrite | | Voice Coil | 2" (50.8 mm) | | Cabinet Construction | Vented | | Material of Construction | ABS plastic | | Dimensions (W x H x D) | 12.0 x 15.9 x 15.6" (305 x 405 x 395 mm) | | Weight | Not specified by manufacturer | | | | Size | 4 x 3" (76.2 mm) | | Magnet | Neodymium | | Voice Coil | 1" (25.4 mm) | | Impedance | Mid/Hi: 4 Ohms | | Speaker Input | Custom-made multi-pin | | Cabinet Construction | Closed | | Material of Construction | ABS plastic | | Dimensions (W x H x D) | 3.2 x 21.1 x 4.1" (82 x 535 x 105 mm) | | Weight | Not specified by manufacturer | | | | Type | Class-D | | Output | RMS: 200 W

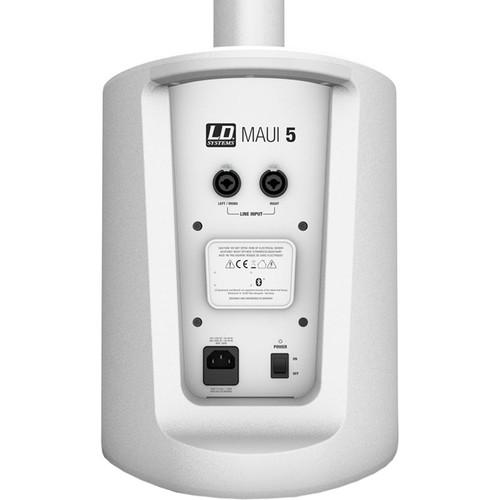

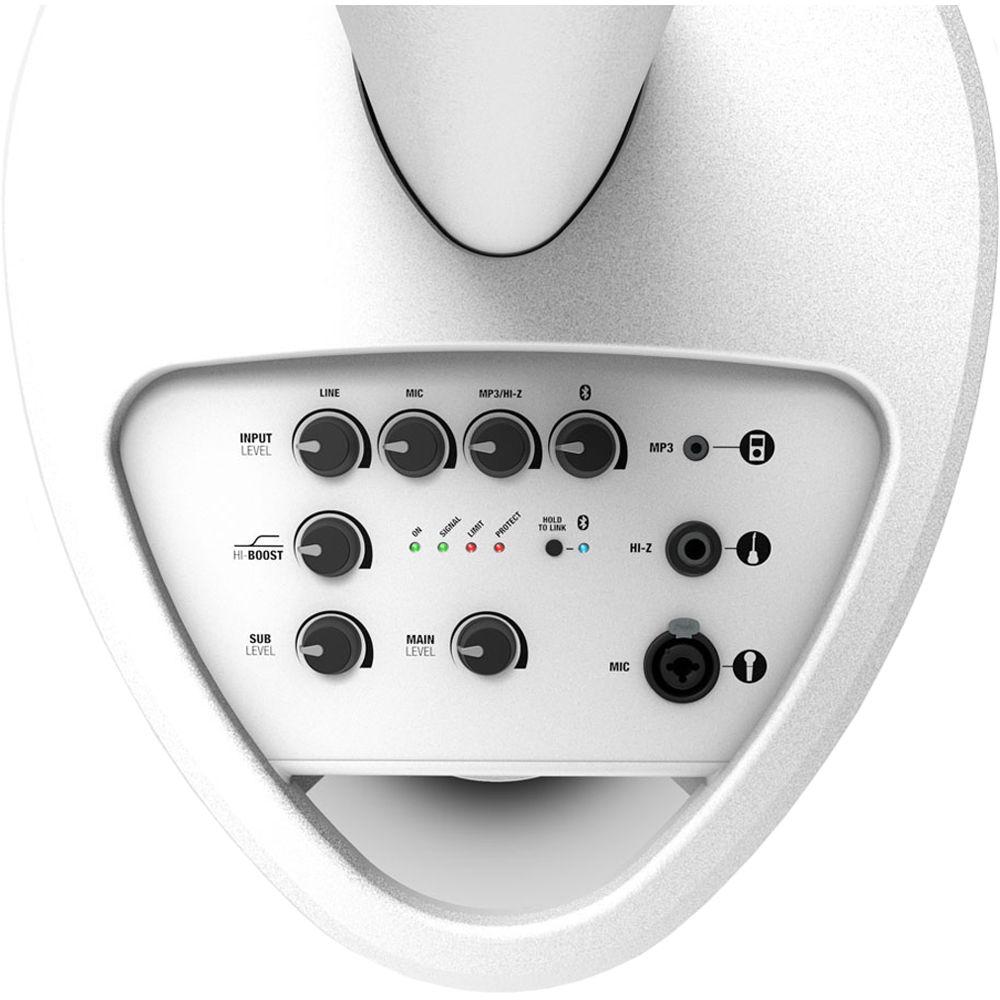

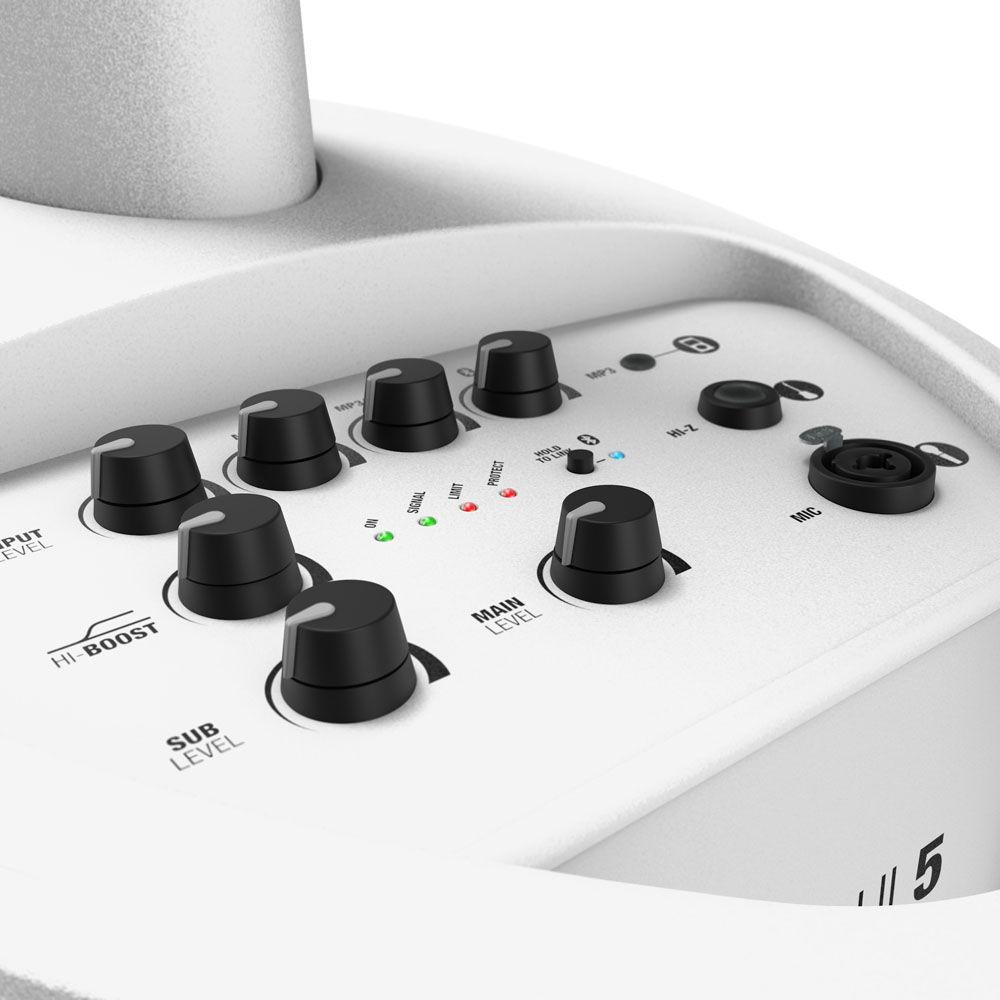

Peak: 800 W | | Protection Circuits | Overcurrent, DSP multiband limiter, short circuit, thermal overload | | Cooling | Convection | | Controls | Line Level, BT Level, Main Level, MP3/Hi-Z Level, Sub Level, Mic Level, BT Pairing | | Indicators | Protect (protection circuit engaged), on, limit, and signal | | Operating Voltage | Switching Power Supply: 100 - 240 VAC, 50 - 60 Hz (automatic conversion) | | Line Input | 2 x Stereo | | Line Input Connectors | 1 x combo XLR-1/4" (6.3 mm) jack | | Mic Input | 1 x combo XLR-1/4" (6.3 mm) jack | | AUX Input | MP3 1/8" (3.5 mm) jack | | Hi-Z Input | 1/4" (6.3 mm) jack | | Loudspeaker | Outputs: 1 | | DSP | Bit depth AD/DA converter: 24/24-bit | | Sample Rate | Internal: 48 kHz | | | | Type | Active PA system | | Max SPL Level | Continuous: 114 dB
Peak: 120 dB | | Frequency Response | 50 Hz to 20 kHz | | Dispersion | Horizontal / Vertical: 120° / 20° | | Additional Features | 4-channel mixer, DSP-based signal processing | | Bluetooth | Yes | | Overall Height | 78.1" (1985 mm) | | Weight | 24.9 lb (11.3 kg) |
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 59 owners. Add your rating and experience with the product.
