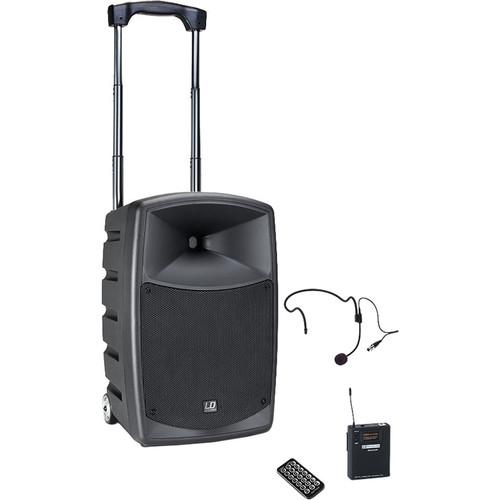

User Manual for LD Systems Roadbuddy 10 HS Battery-Powered Bluetooth Speaker with Bodypack and Headset Microphone Click to enlarge the picture
Contents of the user manual for the LD Systems Roadbuddy 10 HS Battery-Powered
- Product category: Portable PA Systems LD Systems
- Brand: LD Systems
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for LD Systems Portable PA Systems
 |
User manual for the LD Systems Roadbuddy 10 HS Battery-Powered contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any LD Systems product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official LD Systems user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a LD Systems product will considerably shorten its lifespan!
|

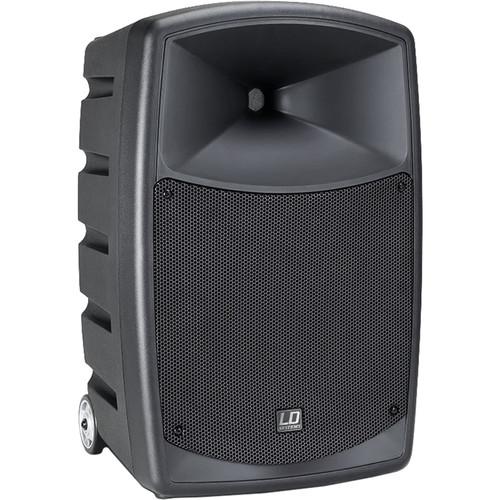

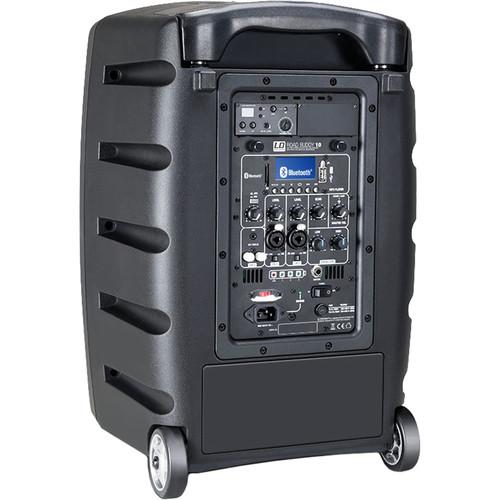

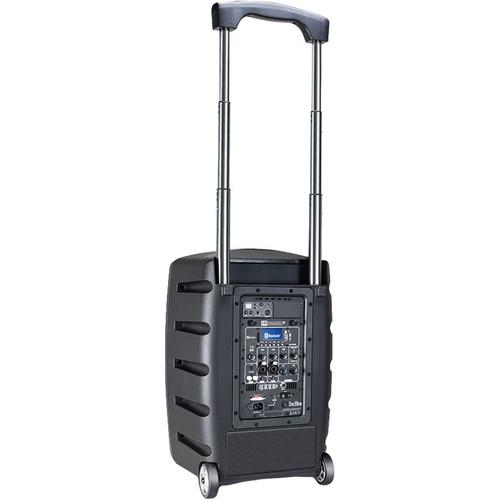

Product description 7 All-In-One Portable Speaker Systems for Special Events and Parties Read More For special events, presentations, fitness instruction, and more, the LD Systems Roadbuddy 10 HS Battery-Powered Bluetooth Speaker with Bodypack and Headset Microphone delivers versatility and power in a portable package. Its two-way speaker system consists of a 10" custom woofer and a 1" horn-loaded compression driver driven by 480W of Class-D amplification. With powering methods including an internal 8-hour rechargeable battery and an efficient switching power supply, the Roadbuddy 10 HS is ready for the road. The Roadbuddy 10 HS features a headset microphone, a wireless bodypack transmitter, and a built-in UHF receiver, forming a reliable wireless system that operates in the 584 to 607 MHz frequency band. The integrated media player incorporates a backlit multifunction display, mode and transport buttons, and support for an array of music sources such as 3.5mm or RCA inputs, wireless streaming via Bluetooth, an SD card, or a USB flash drive. The included IR remote control provides comprehensive access to volume, EQ, track selection, and more. The onboard mixer also offers two XLR-1/4" combo jacks that are switchable for mic or line level, per-channel volume controls, 2-band EQ, echo, and master volume. The Roadbuddy 10 HS is easily transportable, thanks to built-in caster wheels and a pull-out handle. On the top, there is a handy storage compartment for up to two handheld microphones. The Roadbuddy's polypropylene cabinet is durable, lightweight, and stand-mountable. - 10" custom woofer and 1" horn-loaded compression driver yield a frequency response of 55 Hz to 18 kHz
- Class-D amplification (480W peak / 120W RMS) drives the speaker components to a maximum SPL of 115 dB
- Accepts mic-/line-level sources via XLR-1/4" combo jacks, and stereo music playback devices via 3.5mm and RCA aux inputs
- 1/4" line output for connection to a main PA or secondary powered speaker
- Pre-installed UHF receiver with channel selection, AF/RF indicators, adjustable volume, and mute level
- Install a second UHF receiver (available separately) to allow simultaneous use of two wireless microphones
- Wireless bodypack transmitter—powered via two AA batteries (available separately)—with on/off switch, adjustable input sensitivity, and 3-pin mini-XLR input
- Supports powering via AC connection or internal battery
- LED indicators for battery level and charging status
In the Box LD Systems Roadbuddy 10 HS Battery-Powered Bluetooth Speaker with Bodypack and Headset Microphone Bodypack Transmitter Headset Microphone Remote Control Power Cable TNC Antenna Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the LD Systems Roadbuddy 10 HS Battery-Powered Bluetooth Speaker with Bodypack and Headset Microphone in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLD Systems Roadbuddy 10 Specs | | | Type | Active | | LF Driver | 10" / 25.4 cm Woofer with Ferrite Magnet | | HF Driver | 1" / 2.5 cm Horn-Loaded Compression Driver with Ferrite Magnet | | Amplifier Class | Class-D | | Output Power | RMS: 120 W

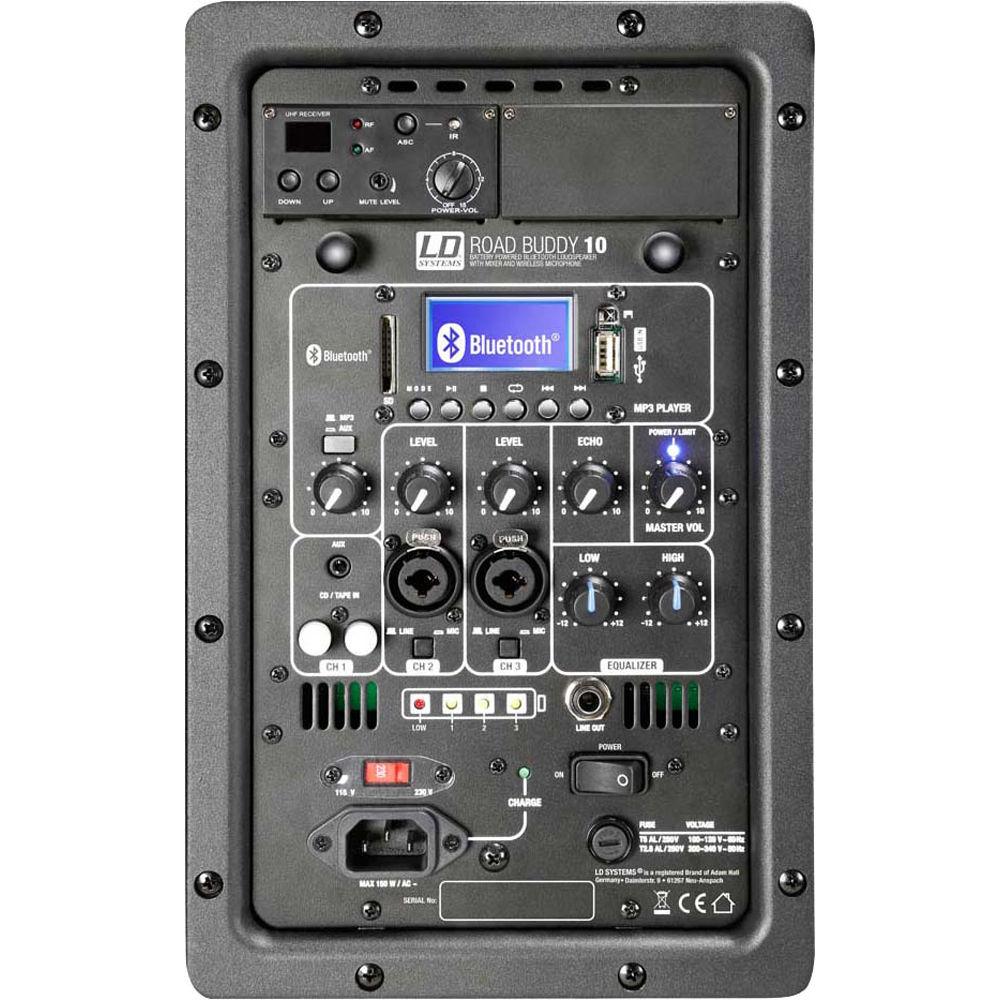

Peak: 480 W | | Frequency Response | 55 Hz to 18 kHz | | SPL | 96 dB (1 W, 1 m) | | Maximum SPL | 115 dB | | THD | 0.002% | | Protection Circuits | Short-Circuit, Over-Current, Overload Protection | | Controls | Knobs: Channel 1, 2, and 3 Levels, Master Volume, Echo, Low EQ Gain, High EQ Gain
Switches: MP3/Aux, Channel 2 Line/Mic, Channel 3 Line/Mic | | Indicators | Power and Charge/Battery Status | | | | Supported Media | Bluetooth, SD Card, USB Flash Drive | | Supported Formats | WAV, MP3, and WMA | | Media Player Controls | Repeat, Previous Track, Play/Pause, Equalizer, Stop, Mode (Menu/Bluetooth/SD/USB), Next Track | | DSP Display Elements | Lighted Multifunction LC Display | | Inputs | 2 x XLR-1/4" Combo
1 x 1/8" / 3.5 mm
2 x RCA Coaxial (One Stereo Pair) | | Outputs | 1 x 1/4" Line Output | | Media Slots | 1 x USB Type-A Port
1 x SD Card Slot | | | | Radio Transmission Frequency Range | 584 to 607 MHz | | Modulation Type | FM | | Channels | 16 | | Frequency Response | 50 Hz to 17 kHz | | Controllers | Mute Level (Squelch), Value Up, Value Down, Power/Volume, ASC | | Indicators | RF (LED), LED Display, AF (LED) | | Connections | nTNC for Receiver Antenna | | | | Input | 1 x TA3M Mini-XLR | | RF Output Power | 10 mW | | Indicators | AF, Power / Sync / Battery Status | | Power Requirements | 2 x 1.5 V AA Batteries | | Construction Material | ABS Plastic | | Weight | 2.8 oz / 80 g (Excluding Batteries) | | | | Form Factor | Headset | | Output Connector | TA3F Mini-XLR | | | | Operating Voltage | Switching Power Supply, 100 to 240 VAC, 50/60 Hz | | Rechargeable Batteries | 12 V / 5 Ah Lead-Acid | | Battery Charging Time | 10 Hours | | Battery Life | Up to 8 Hours | | Cabinet | Polypropylene | | Cabinet Construction | Vented | | Mounting Options | Integral 1.4" / 36 mm Stand Mount | | Temperature Range | 32 to 122°F / 0 to 50°C | | Humidity Range | 10% to 70% Relative Humidity | | Dimensions (W x H x D) | 16.3 x 20.7 x 12.9" / 41.5 x 52.5 x 32.8 cm | | Weight | 36.4 lb / 16.5 kg | | | | Package Weight | 39.3 lb | | Box Dimensions (LxWxH) | 25.0 x 16.5 x 14.25" |
Rating70% users recommend this product to others. And what about you?
This product has already been rated by 28 owners. Add your rating and experience with the product.
