Product description 7 All-In-One Portable Speaker Systems for Special Events and Parties Read More - LD Systems Road Jack Series - RJ8 and RJ10
The Roadjack 10 Powered Portable PA System by LD Systems is a portable PA suitable for small sound-reinforcement tasks at conferences, panel discussions, presentations, seminars, small clubs, and outdoor events. It has three separate controllable channels, a 2-band EQ, seven onboard EQ settings in the media player for equalizing different genres of music, and up to 20 hours of battery life.
Its 10" woofer covers the low end to 65 Hz and the 3" tweeter reproduces high frequencies up to 18 kHz. It also has an echo effect on channel one, and a master volume control. There are RCA and TRS mini aux inputs, for listening to music from your tablet, CD player, computer, and more. The built-in MP3 player plays back music via its USB and SD card ports. Also, Bluetooth devices can stream music to the Roadjack 10 from up to 33 feet.

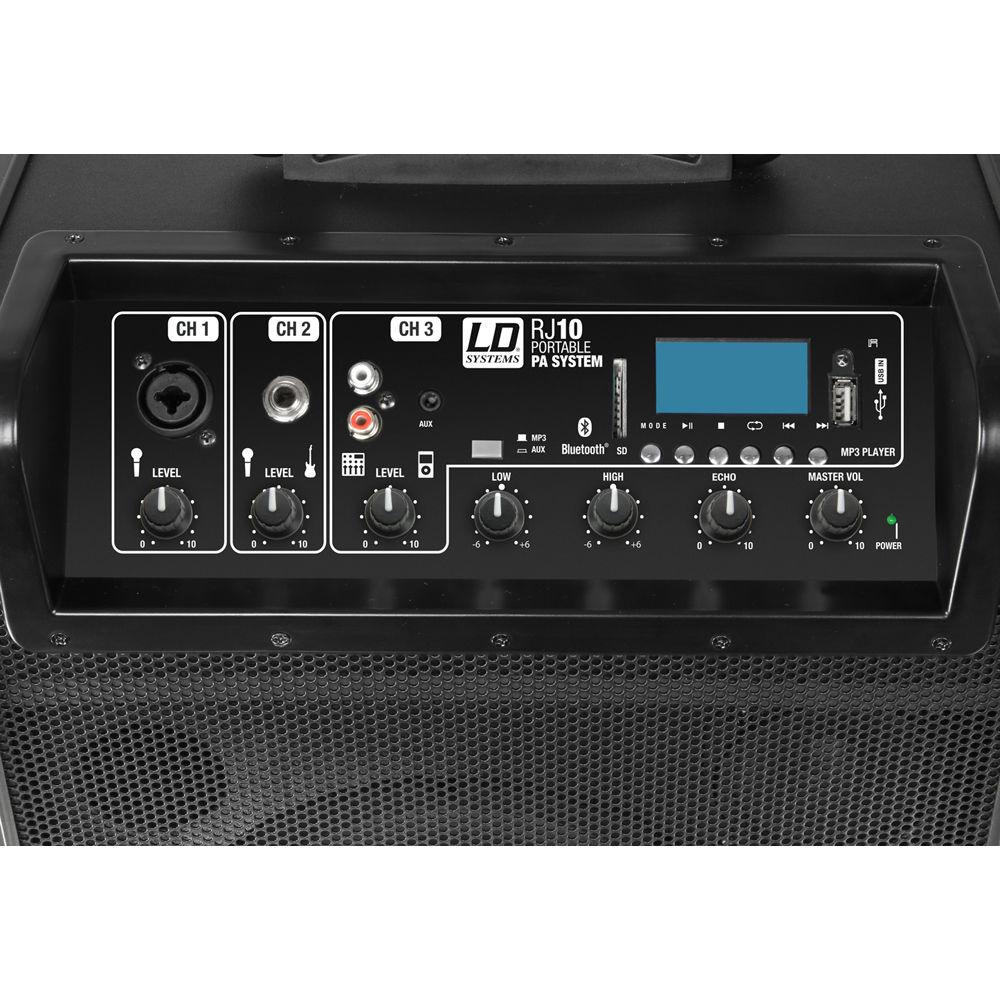

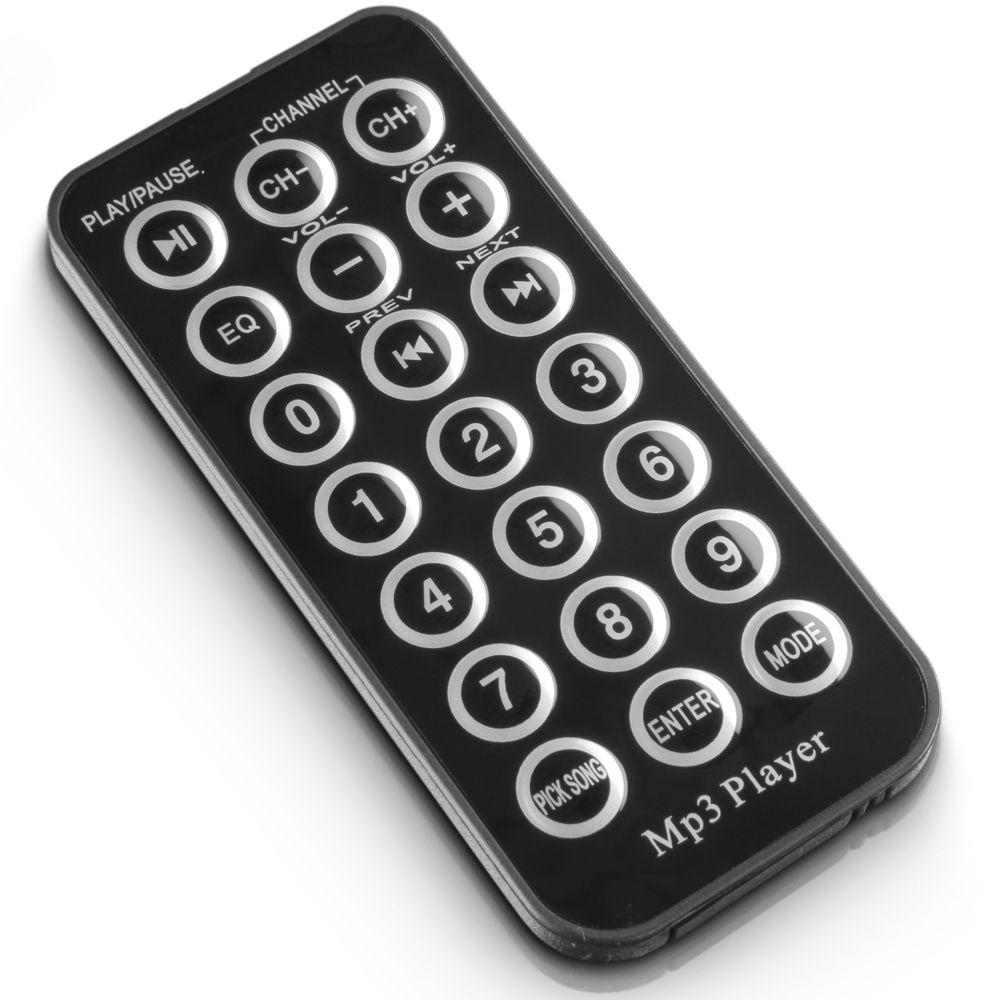

The LCD display indicates playback status, play time, track information, EQ setting, storage medium selection, Bluetooth options and status, and file format. There are six playback modes – Normal, Random / Browse, All, Repeat One, and Repeat Folder. All media player functions are accessible either on the unit or via the remote control (from up to 26').

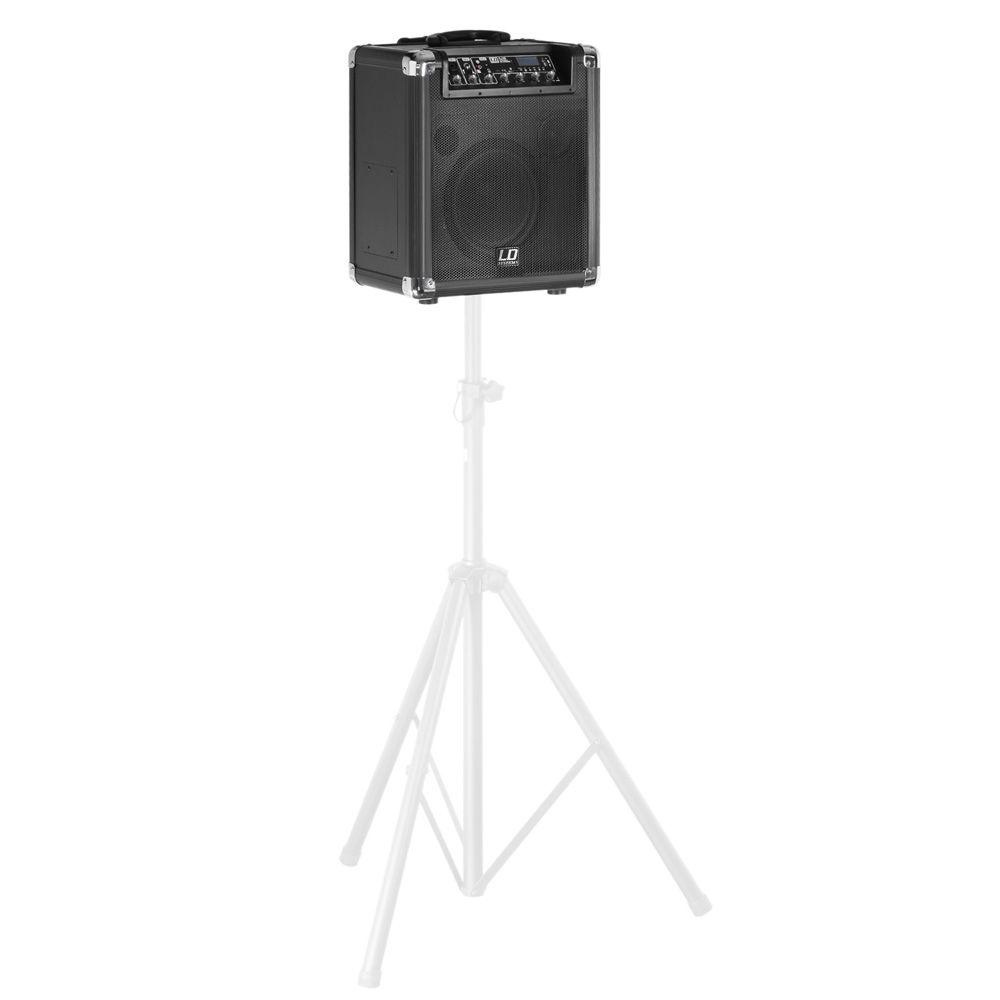

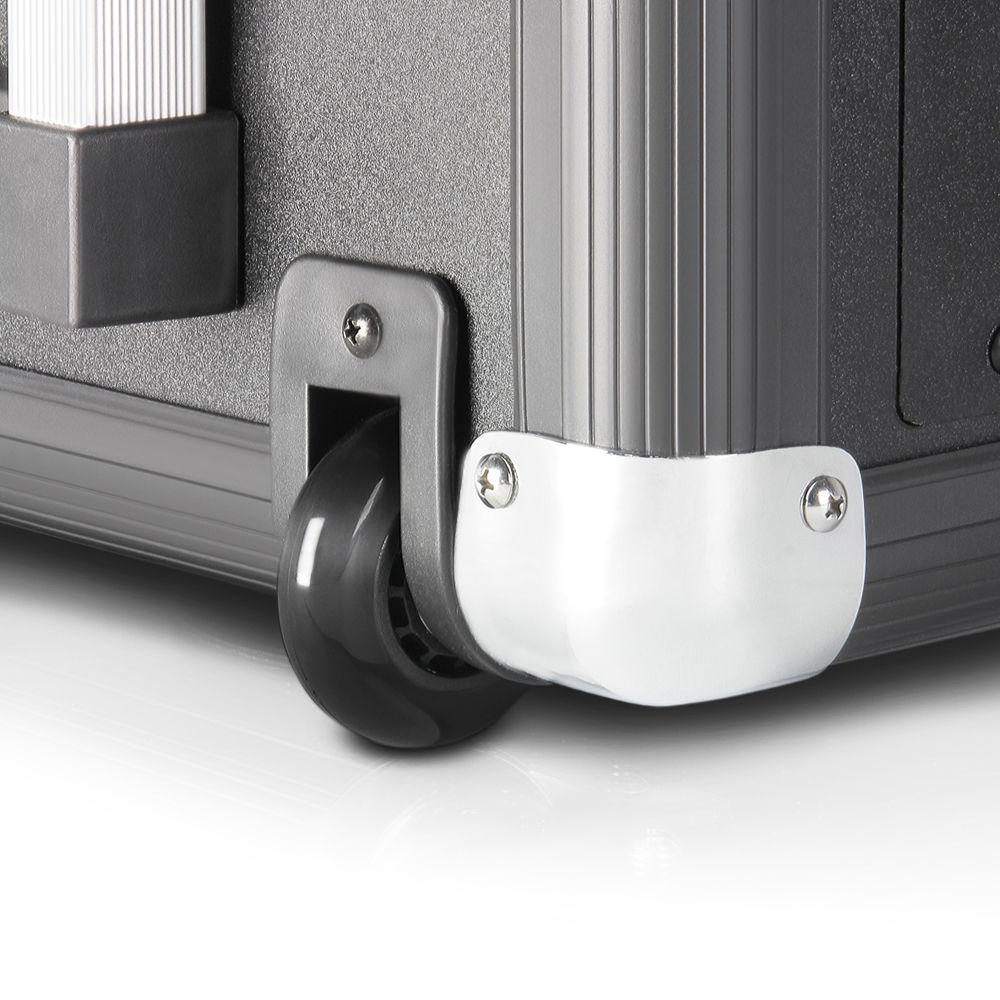

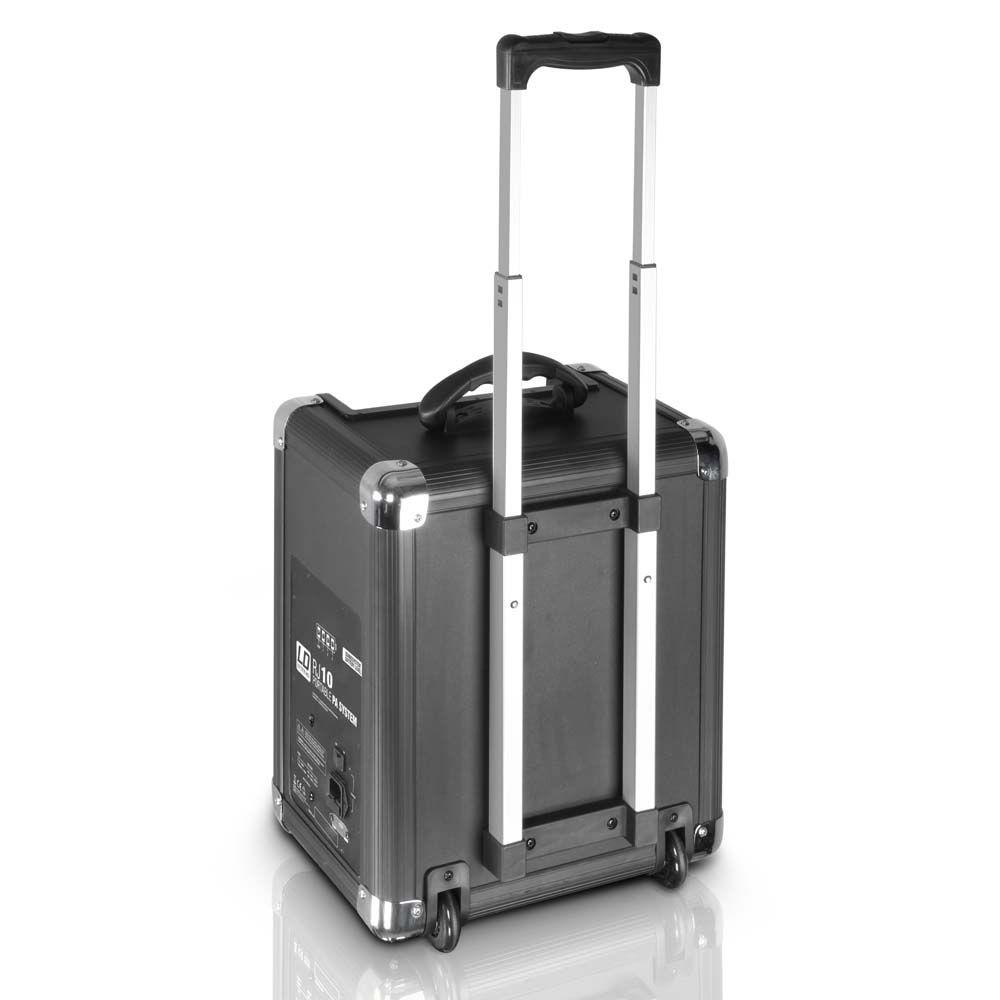

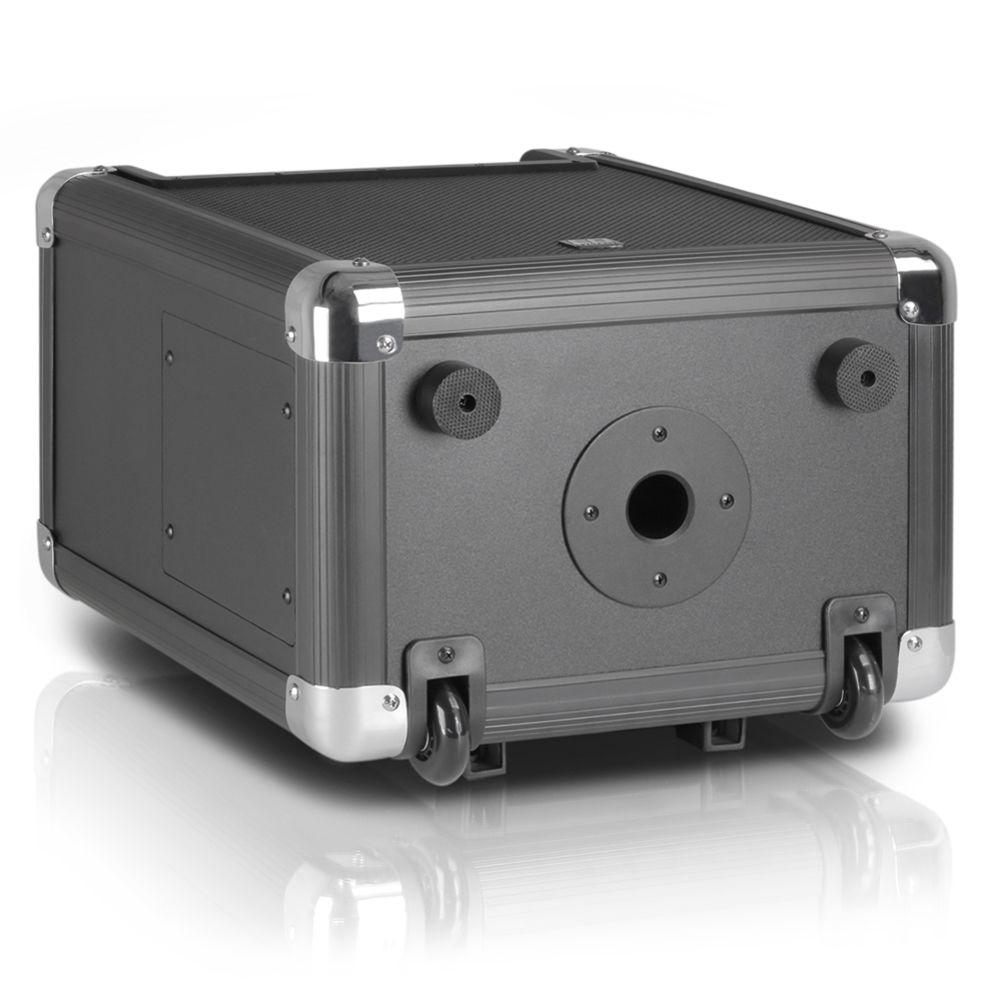

The Roadjack 10 is constructed of medium-density fiberboard and has built-in wheels and an extendable handle for easy transport. A stand mount enables optimal placement in any space. -
- Active 2-way system
- 10" low/mid driver
- Instrument and microphone inputs
- Auxiliary media inputs: Aux, USB, SD card
- Remote control for media player functions
- 7 onboard EQ presets
- Wireless UHF system for low interference
- Power supply: built-in rechargeable battery and IEC connector
- Stand mount insert
- Built-in wheels
- Extendable trolley handle
- Medium-density fiberboard construction
In the Box LD Systems Roadjack 10 Battery-Powered Bluetooth Loudspeaker with Mixer Infrared Remote Power Cable 2-Year Limited Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the LD Systems Roadjack 10 Battery-Powered Bluetooth Loudspeaker with Mixer in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLD Systems RJ10 Specs | Low/Mid Driver Diameter | 10.0" / 25.4 cm | | Low/Mid Driver Magnet | Ferrite | | HF Driver Dimensions | 3.0" / 7.6 cm | | HF Driver Magnet | Ferrite | | Amplifier Class | Class D | | RMS Power Output | 25 W | | Peak Power Output | 100 W | | Frequency Response | 65 to 18 kHz | | SPL | 96 dB (1 W / 1 m) | | Max SPL Level | 117 dB | | Protection Circuits | Over-current
Overload protection
Short circuit | | Controls | Channel 1 level
Channel 2 level
Channel 3 level (media player)
Low EQ
High EQ
Echo
Master volume
Aux/MP3 switch | | Indicators | Charge / battery status
Power | | Media Player | Supported Formats
WMA
WAV
MP3
Modes
Bluetooth
SD
USB
Controls
Play/Pause
Stop
Repeat
Previous Track / Volume down
Next track / Volume up
Display
Lighted multifunctional LC | | Inputs | 1x XLR-1/4" microphone (balanced, unbalanced)
1x 1/4" instrument/microphone
2x RCA (mono summed)
1x 3.5 mm aux (mono summed) | | Ports | SD card 32 GB (max) storage
USB stick 32 GB (max) capacity | | Switches | MP3/aux

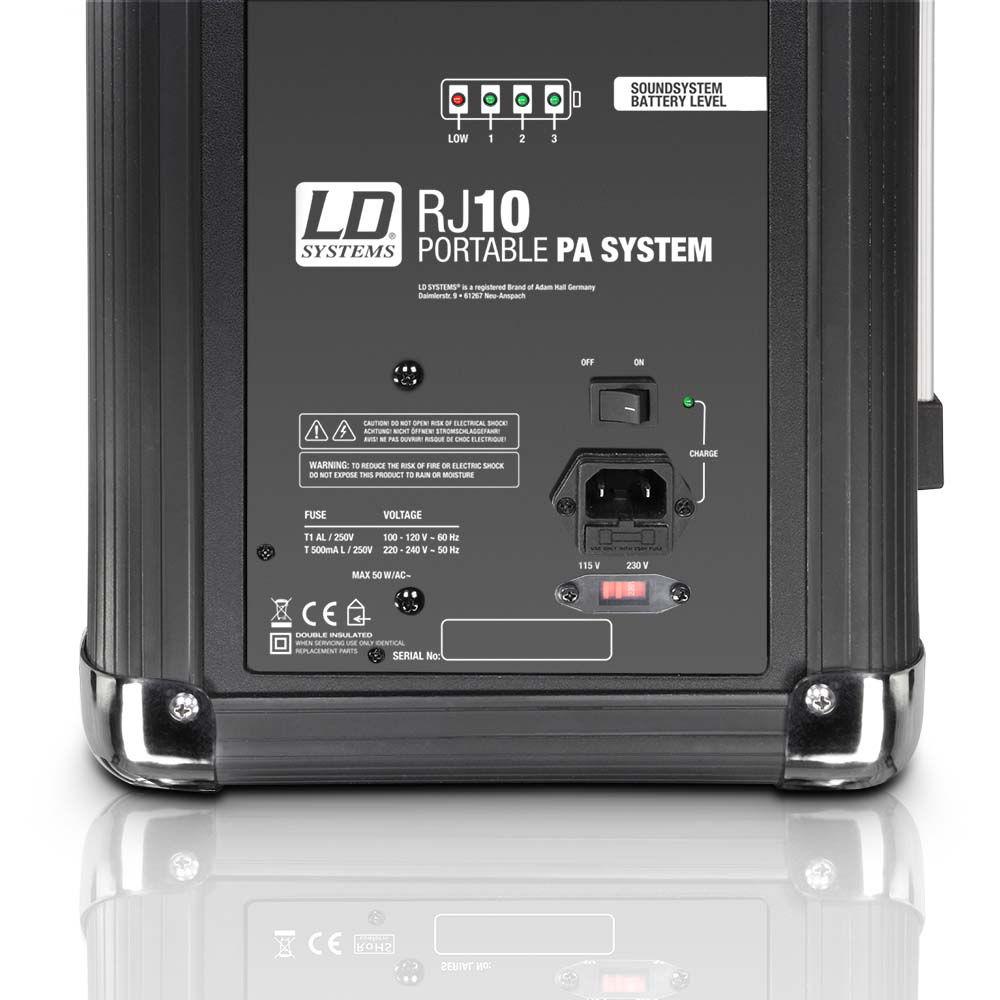

On/off | | Power Supply | Switching voltage | | Power Cable | IEC | | Power Socket | IEC with integral fuse holder | | Operating Voltage | 100 to 120 VAC/60 Hz
220 to 240 VAC/50 Hz | | Maximum Power Consumption | 50 W | | Rechargeable Batteries | 12 VDC / 5 Ah | | Stand Mount Insert | 1.4" / 36.0 mm | | Cabinet Construction | 0.6" / 15 mm bass reflex MDF | | Dimensions (W × H × D) | 16.3 x 20.7 x 12.9" / 41.5 x 52.5 x 32.8 cm | | Weight | 35.7 lb / 16.2 kg | | | | Package Weight | 43.15 lb | | Box Dimensions (LxWxH) | 22.6 x 20.0 x 16.5" |
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 34 owners. Add your rating and experience with the product.
Discussion
Ask our technicians if you have a problem with your settings,
or if anything is unclear in the user manual you have downloaded.
You can make use of our moderated discussion.
The discussion is public and helps other users of our website who may be encountering similar problems.
Post new comment to LD Systems Roadjack 10 Battery-Powered Bluetooth Loudspeaker with Mixer
| Subject: Blutooth | | Date: 01.01.2023 08:12:36 | Name: Ryan | | Blutooth connected and displayed in the device but did not appear in th LD RJ10 display screen. | | Post reply |
| Subject: Bluetooth connect failure | | Date: 22.11.2022 00:48:53 | Name: Johan | | Hi, I cannot connect via bluetooth and its always using cable so how can i reset bluetooth as I believe I need disk to upgrade or fix | | Post reply |
| Subject: Query on bluetooth | | Date: 10.02.2022 10:36:30 | Name: KARI BATES | Good Morning
I have just used my Roadjack 10 speaker for my first Zumba class using the bluetooth facility linked directly to my phone. However, mid class it lost connectivity. Is there anyway I can overcome this without having to wire directly? | | Post reply |
| Subject: LD road jack | | Date: 11.02.2021 07:24:41 | Name: Chris | After I turn on the unit There is a flashing message on the screen LD SYSTEMS and I csnrt get rid of it ,
I need to activate Bluetooth ,pressing the Mode button doesn’t help | | Post reply |
