User Manual for LD Systems Roadjack 8 Battery-Powered Bluetooth Loudspeaker with Mixer Click to enlarge the picture
Contents of the user manual for the LD Systems Roadjack 8 Battery-Powered Bluetooth
- Product category: Portable PA Systems LD Systems
- Brand: LD Systems
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for LD Systems Portable PA Systems
 |
User manual for the LD Systems Roadjack 8 Battery-Powered Bluetooth contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any LD Systems product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official LD Systems user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a LD Systems product will considerably shorten its lifespan!
|
Product description 7 All-In-One Portable Speaker Systems for Special Events and Parties Read More - LD Systems Road Jack Series - RJ8 and RJ10

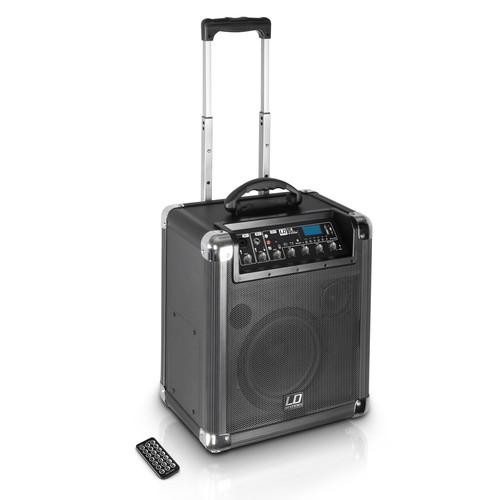

The Roadjack 8 Powered Portable PA System by LD Systems is a portable PA suitable for small sound-reinforcement tasks at conferences, panel discussions, presentations, seminars, small clubs, and outdoor events. It has three separate controllable channels, a 2-band EQ, seven onboard EQ settings in the media player for equalizing different genres of music, and up to 20 hours of battery life.
Its 8" woofer covers the low end to 90 Hz and the 3" tweeter reproduces high frequencies up to 18 kHz. It also has an echo effect on channel one, and a master volume control. There are RCA and TRS mini aux inputs, for listening to music from your tablet, CD player, computer, and more. The built-in MP3 player plays back music via its USB and SD card ports. Also, Bluetooth devices can stream music to the Roadjack 8 from up to 33 feet.

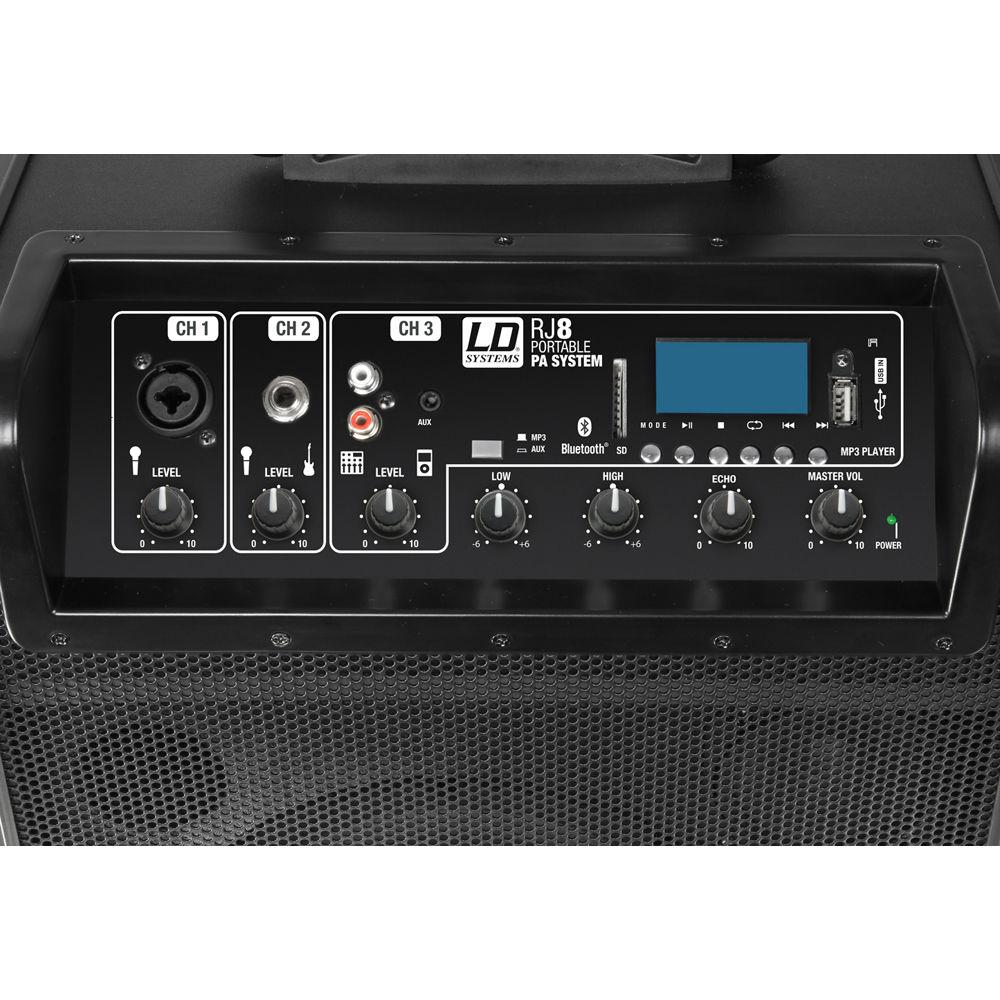

The LCD display indicates playback status, play time, track information, EQ setting, storage medium selection, Bluetooth options and status, and file format. There are six playback modes – Normal, Random / Browse, All, Repeat One, and Repeat Folder. All media player functions are accessible either on the unit or via the remote control (from up to 26').

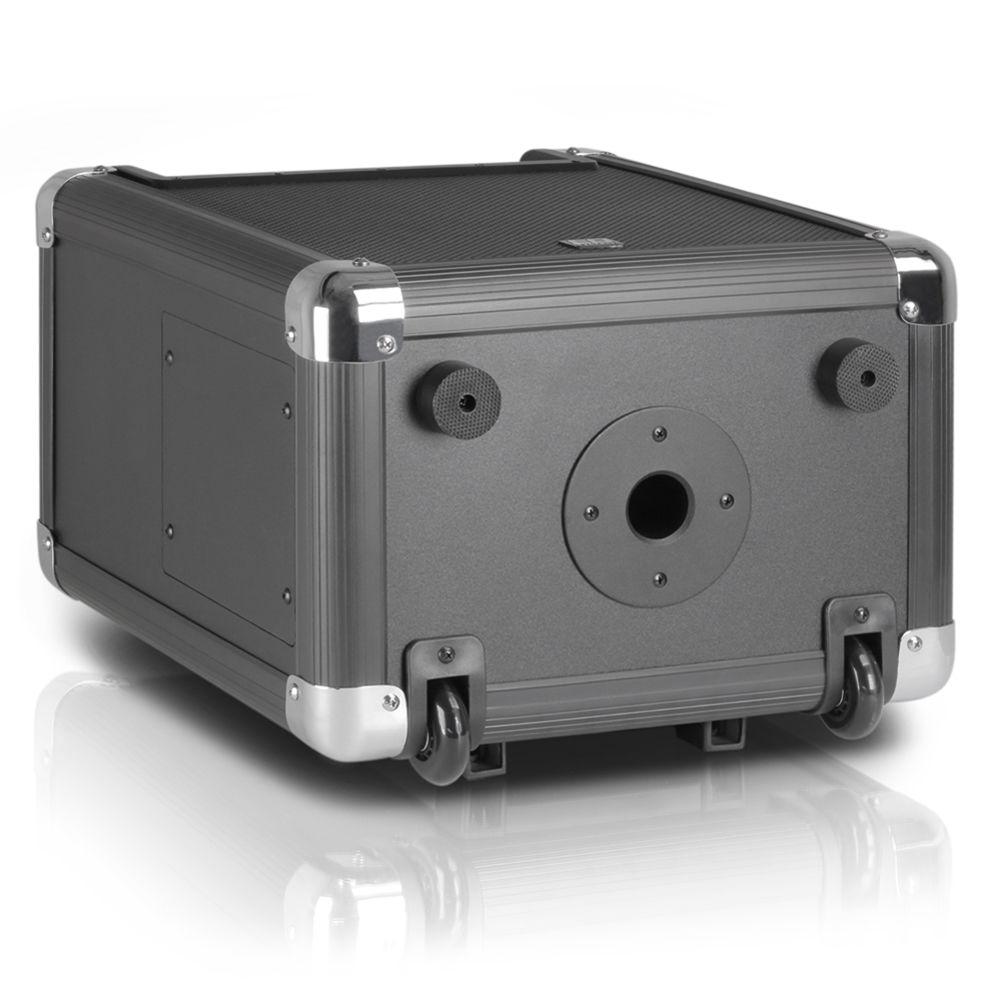

The Roadjack 8 is constructed of medium-density fiberboard and has built-in wheels and an extendable handle for easy transport. A stand mount enables optimal placement in any space. -
- Active 2-way system
- 8" low/mid driver
- Instrument and microphone inputs
- Auxiliary media inputs: Aux, USB, SD card

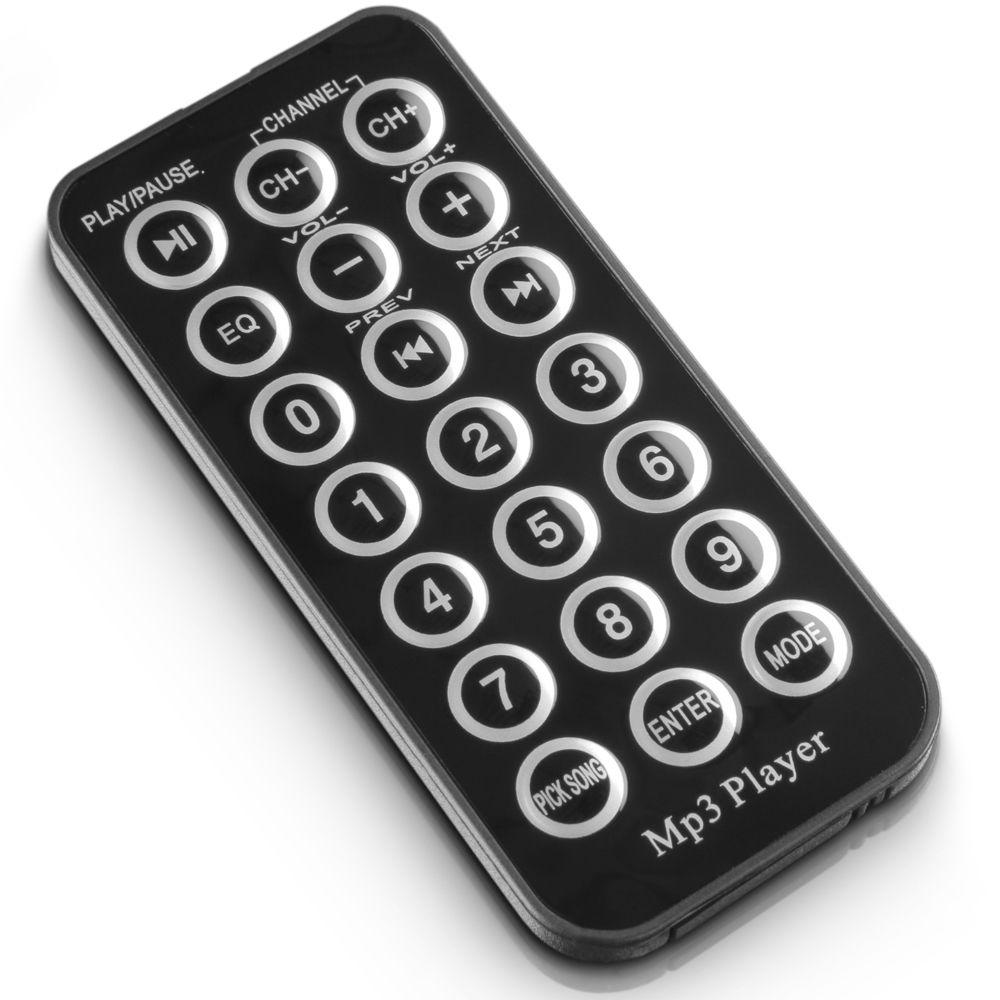

- Remote control for media player functions
- 7 onboard EQ presets
- Wireless UHF system for low interference
- Power supply: built-in rechargeable battery and IEC connector

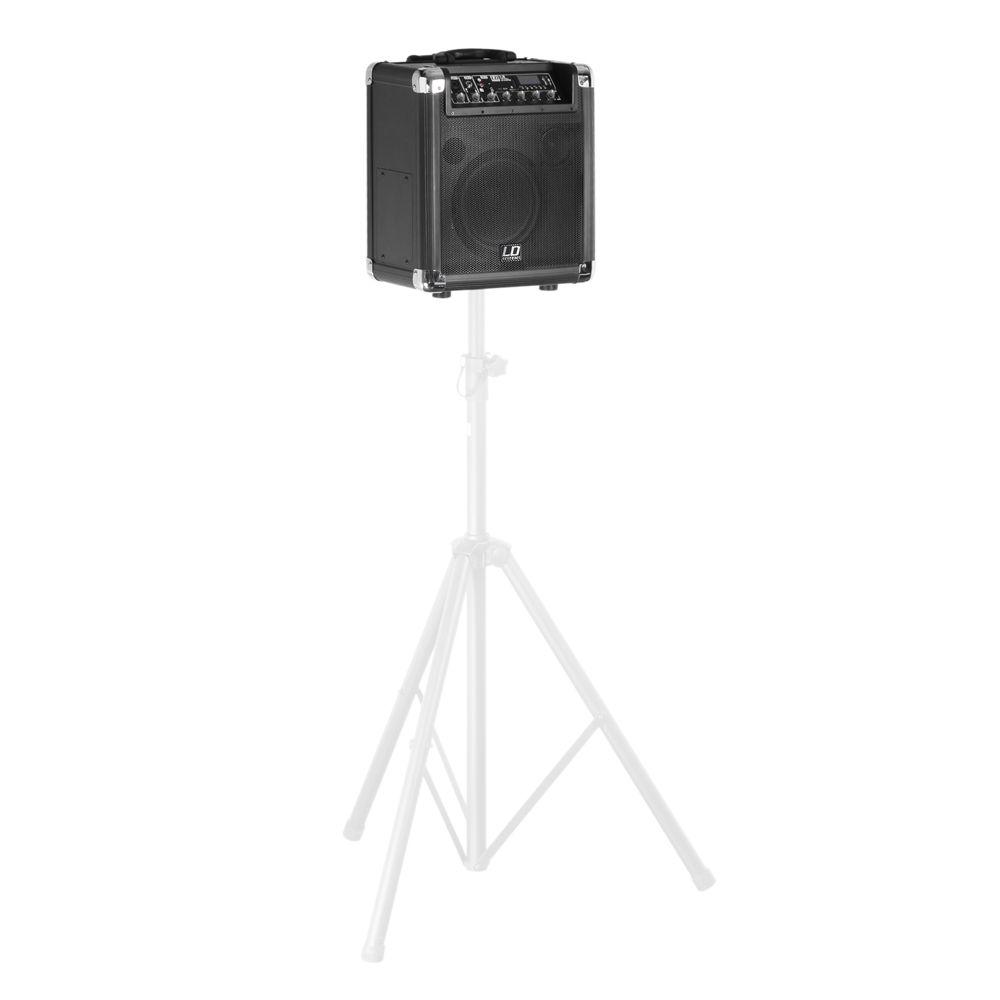

- Stand mount insert

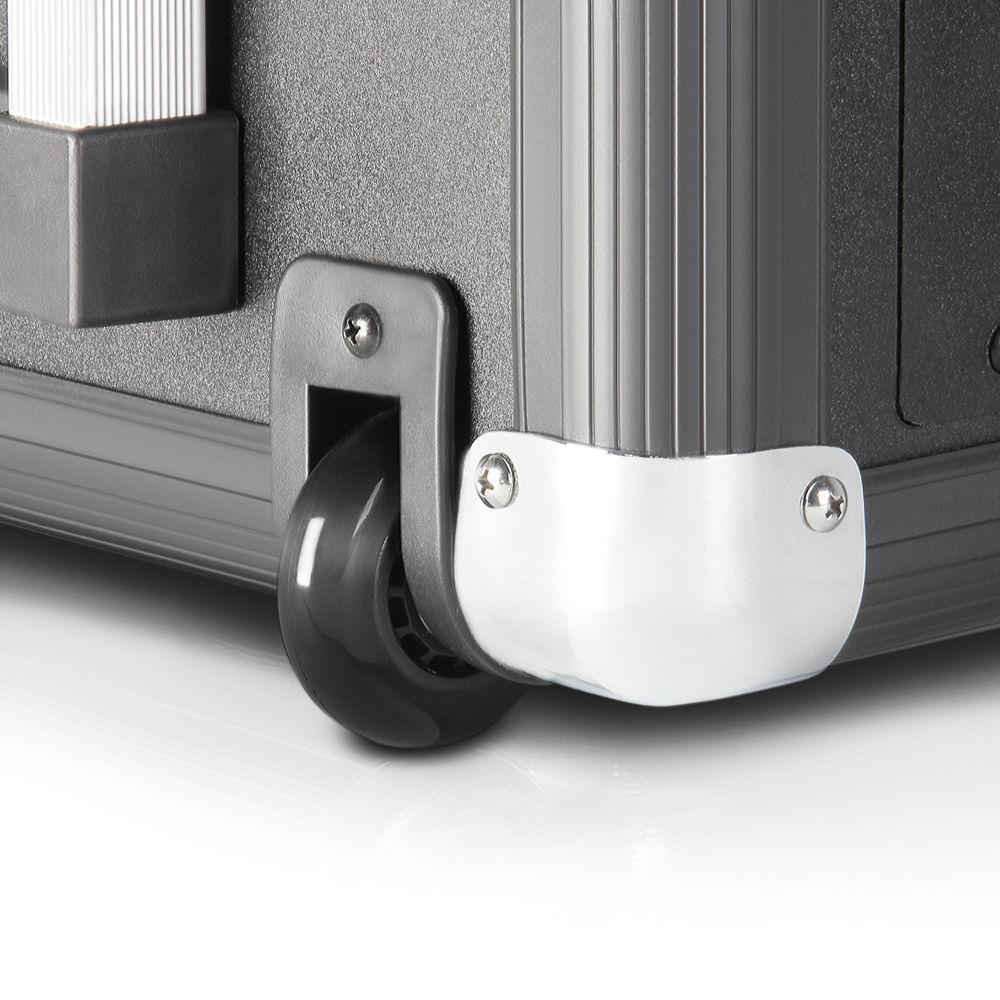

- Built-in wheels

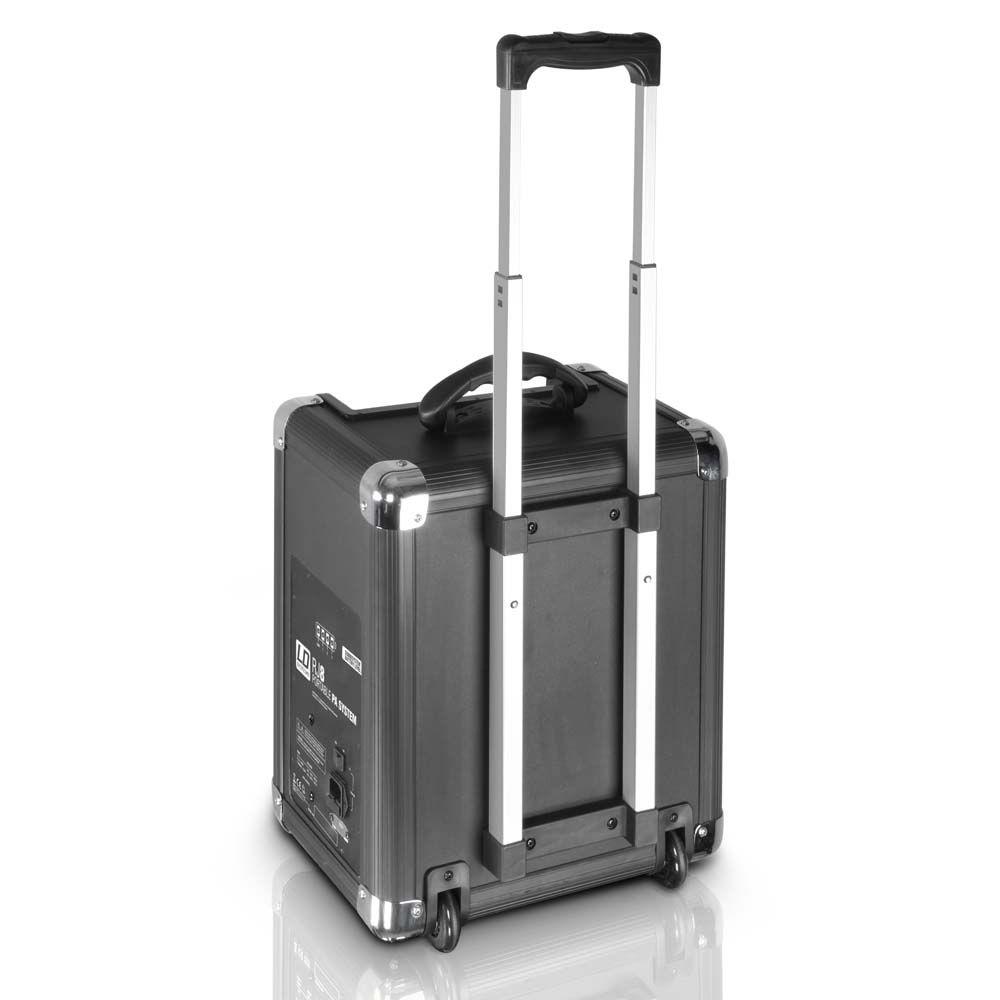

- Extendable trolley handle
- Medium-density fiberboard construction
In the Box LD Systems Roadjack 8 Battery-Powered Bluetooth Loudspeaker with Mixer Infrared Remote Power Cable 2-Year Limited Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the LD Systems Roadjack 8 Battery-Powered Bluetooth Loudspeaker with Mixer in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLD Systems RJ8 Specs | Low/Mid Driver Diameter | 8.0" / 20.3 cm | | Low/Mid Driver Magnet | Ferrite | | HF Driver Dimensions | 3.0" / 7.6 cm | | HF Driver Magnet | Ferrite | | Amplifier Class | Class D | | RMS Power Output | 25 W | | Peak Power Output | 100 W | | Frequency Response | 90 to 18 kHz | | SPL | 94 dB (1 W / 1 m) | | Max SPL Level | 117 dB | | Protection Circuits | Over-current
Overload protection
Short circuit | | Controls | Channel 1 level
Channel 2 level
Channel 3 level (media player)
Low EQ
High EQ
Echo
Master volume
Aux/MP3 switch | | Indicators | Charge / battery status
Power | | Media Player | Supported Formats
WMA
WAV
MP3
Modes
Bluetooth
SD
USB
Controls
Play/Pause
Stop
Repeat
Previous Track / Volume down
Next track / Volume up
Display
Lighted multifunctional LC | | Inputs | 1x XLR-1/4" microphone (balanced, unbalanced)
1x 1/4" instrument/microphone
2x RCA (mono summed)
1x 3.5 mm aux (mono summed) | | Ports | SD card 32 GB (max) storage
USB stick 32 GB (max) capacity | | Switches | MP3/aux

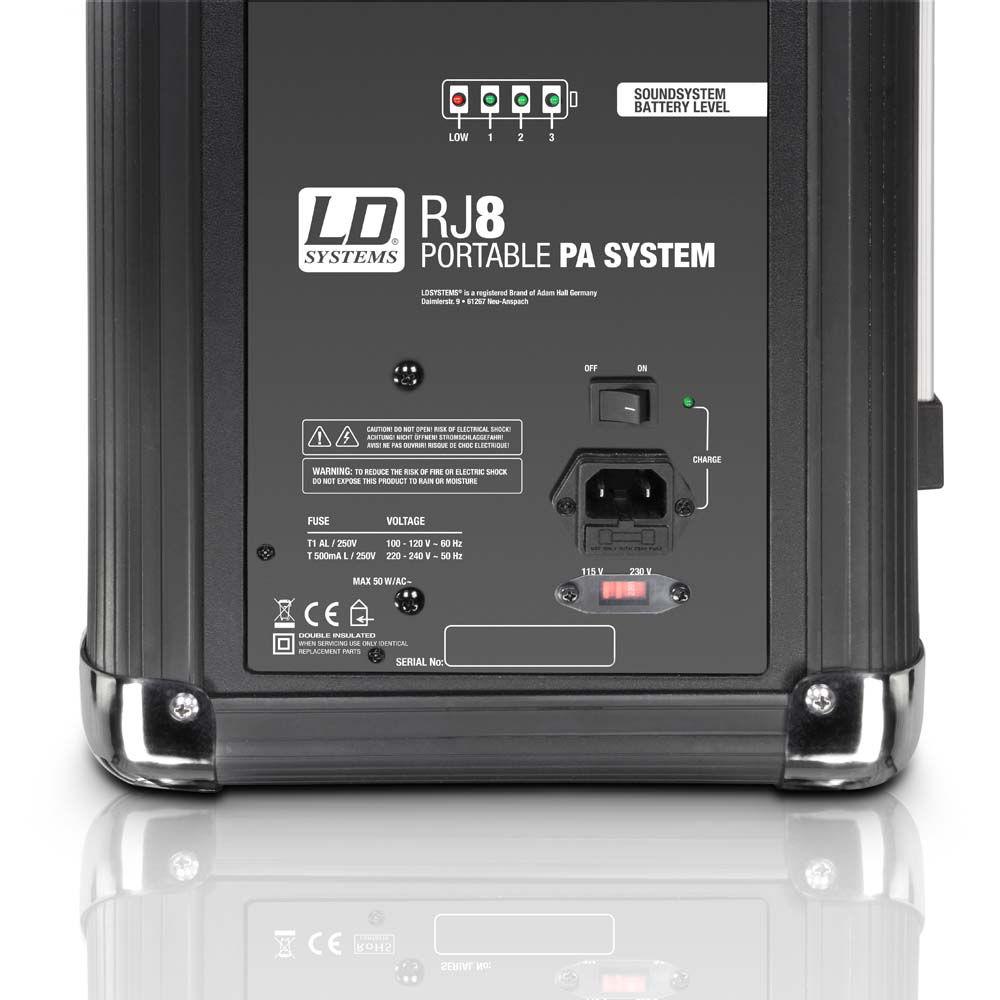

On/off | | Power Supply | Switching voltage | | Power Cable | IEC | | Power Socket | IEC with integral fuse holder | | Operating Voltage | 100 to 120 VAC/60 Hz
220 to 240 VAC/50 Hz | | Maximum Power Consumption | 50 W | | Rechargeable Batteries | 12 VDC / 5 Ah | | Stand Mount Insert | 1.4" / 36.0 mm | | Cabinet Construction | 0.6" / 15 mm bass reflex MDF | | Dimensions (W × H × D) | 15.2 x 17.7 x 11.7" / 38.5 x 45.0 x 29.8 cm | | Weight | 30.4 lb / 13.8 kg |
