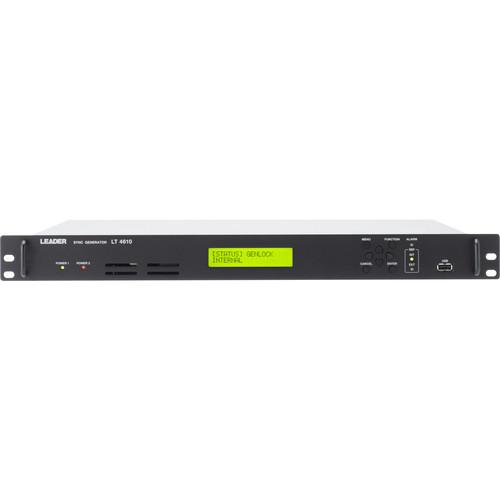

User Manual for Leader 3G HD SD Multi-Format Video Sync Generator Click to enlarge the picture
Contents of the user manual for the Leader 3G HD SD Multi-Format Video
- Product category: Video & Audio Signal Generators Leader
- Brand: Leader
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Leader Video & Audio Signal Generators
|
User manual for the Leader 3G HD SD Multi-Format Video contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Leader product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Leader user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Leader product will considerably shorten its lifespan!
|
Product description Provided by third party: Designed for use in broadcast studios, mobile production vehicles, post-production companies and broadcast equipment maintenance facilities, the LT4610 provides an exceptionally wide range of capabilities within a compact 1RU x 15.75 inches (400 mm) deep footprint.
Scrolling speed is user adjustable. Y/G, Cb/B, Cr/R components can be turned on or off independently for each output channel.
- Key Features
-
- QVGA (320 pixel x 240 line) 24-bit full color bitmap logos can be transferred into the generator via USB memory and added to any test pattern
- LT4610 can also generate IDs of up to 20 characters for placement at any operator-assigned screen position
- Safety area markers can be generated to show safe-action area (90%), safe title area (80%) and/or 4:3 aspect ratio
- ID characters, logo mark, safe area markers and test pattern can be displayed individually, sequentially or simultaneously
- Audio sampling resolution
- Audio clicks can be generated between 1 and 4 seconds or disabled
- Test patterns with synchronized audio can be generated for lip sync testing
- LT4610 has a genlock input and can be synchronized with NTSC/PAL black burst or HD tri-level sync signals
- Six independent analog black burst reference signals are provided, which can be changed to tri-level sync
- Alarms are generated with SNMP and displayed on the front panel when errors do occur
- Redundant power supply with fast automatic switchover is standard
Table of Contents
|
Upload User Manual
Have you got an user manual for the Leader 3G HD SD Multi-Format Video Sync Generator in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLeader LT4610 Specs | | | Type | AV test / sync signal generator | | Width | 19 in | | Depth | 15.7 in | | Height | 1.7 in | | Weight | 7.94 lbs | | | | Nominal Voltage | AC 120/230 V | | Installed Qty | 2 | | Frequency | 50/60 Hz | | Max Power Consumption | 80 W | | | | Terminals | (1) x LTC input / output
(1) x GPS input - BNC
(1) x CW sync - BNC
(1) x AES / EBU output - BNC
(1) x silence output - BNC
(1) x wordclock output - BNC
(1) x network - RJ-45
(6) x analog black output - BNC
(2) x 3G HD-SDI output - BNC | | | | Min Operating Temperature | 32
