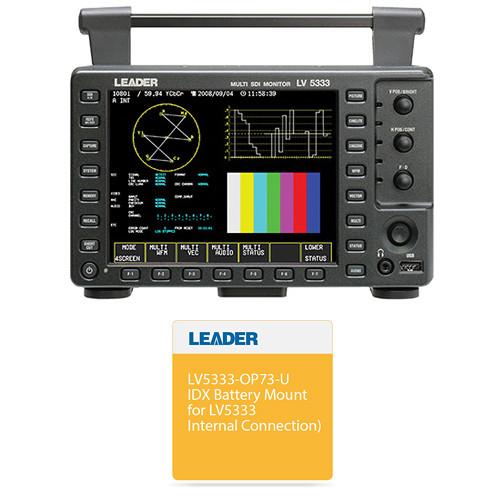

User Manual for Leader 6.5" Multi-SDI Waveform Monitor & IDX Battery Mount Kit Click to enlarge the picture
Contents of the user manual for the Leader 6.5" Multi-SDI Waveform Monitor &
- Product category: Waveform Monitors & Scopes Leader
- Brand: Leader
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Leader Waveform Monitors & Scopes
|
User manual for the Leader 6.5" Multi-SDI Waveform Monitor & contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Leader product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Leader user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Leader product will considerably shorten its lifespan!
|
Product description This Kit features the Leader 6.5" Multi-SDI Waveform Monitor and an IDX Battery Mount that will let you run the monitor for extended periods using an optional battery. The monitor offers an advanced solution for judging exposure and color on set and in the studio, providing built-in waveform and scopes, embedded audio signal display, line selector, screen capture memory, and many other functions. Note: The kit is sent to you with the two items already hard-wired by Leader, whereas if purchased separately the two items would need to be sent to the Leader factory for hard-wiring. - Leader LV5333 6.5" 3G/HD/SD-SDI Portable Waveform Monitor For judging exposure and color on set and in the studio, the Leader LV5333 3G/HD/SD-SDI Portable Waveform Monitor is equipped with accurate video signal waveform and vectorscope displays. The monitor's SDI inputs can accept 3G, HD, and SD-SDI signals.The 6.5" TFT LCD screen can display scopes and video images in high quality. Additionally, the CINELITE II software is included with the LV5333 to provide exposure metering. The LV5333 also offers an embedded audio signal display, allowing level-meter measurements ensuring a strong signal that doesn't distort. Note: An AC adapter is not included. The following model is required: Leader AC Adapter for LV5330/LV5333 (MFR# SPU41A-105).
- Supports 3G-SDI, HD-SDI, and SD-SDI signals
- 6.5" TFT LCD XGA display (1024 x 768) for waveform and picture representations
- Includes CINELITE II and CINELITE Advanced
- Includes Histogram, User Gamma Display, Gamut, and Level Error functions
- Line Selector—selects any line of the video signal to be displayed and provides waveform, vectorscope, and 5-bar representations of the selected line
- Cable Length, EXT Phase, and Field Frequency Deviation Display
- Detects EIA608 and EIA708 closed captioning
- Supports up to 16 channels of embedded audio signals
- Includes an AES/EBU output connector for two audio channels
- Extracts embedded audio signals and sends two user-selectable audio channels to the headphone jack
- Audio shortcut button located on the front panel
- Includes "Screen Capture" to capture the displayed image and save it to the internal memory (RAM) or to a USB memory device
- The internal memory holds up to 30 presets allowing quick access to favorite instrument setups
- Instrument can be remote controlled from a PC over an Ethernet network
- Can be mounted on a tripod for on-camera fitting
- Leader LV5333-OP73-U IDX Battery Mount for LV5333 (Internal Connection) The LV5333-OP73-U IDX Battery Mount from Leader enables you to mount an IDX battery to your LV5333 wavefrom monitor. It is also compatible with LV5380 and LV5382 monitors. The battery plate connects to your monitor via internal hard-wiring; no wires are visible. Your monitor's low battery alarm is available when using it with this battery mount. Note: The LV5333 must be returned to the factory in order to install the battery mount.
In the Box - LV5333 6.5" 3G/HD/SD-SDI Portable Waveform Monitor awqdeaeqbqzxtvbquvrayfdwascwvwqrraybd
- Limited 2-Year Warranty
- LV5333-OP73-U IDX Battery Mount for LV5333 (Internal Connection)
Table of Contents
|
Upload User Manual
Have you got an user manual for the Leader 6.5" Multi-SDI Waveform Monitor & IDX Battery Mount Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Leader LV5333 6.5" 3G/HD/SD-SDI Portable Waveform Monitor
| Rear Panel Connectors | 1 x BNC, Ext Ref
1 x BNC, Digital audio output
1 x 15-pin, Remote connector
1 x 4-pin XLR, DC in
2 x BNC, SDI in
1 x BNC, SDI out
1 x RJ-45, Ethernet | | SDI Standards | 3G-SDI
HD-SDI
SD-SDI | | | | Operating Temperature | 32 to 104°F / 0 to 40°C
Optimal: 50 to 86°F / 10 to 30°C | | Operating Humidity | 85% RH (no condensation) | | Elevation | Up to 6561' / 2000 m | | Overvoltage Category | II | | Pollution Degree | 2 | | Voltage | 10 to 18 VDC | | Power Consumption | 28 W max. | | Dimensions | 8.5 x 5.0 x 2.5" / 21.5 x 12.8 x 6.3 cm | | Weight | 3.3 lb / 1.5 kg | | | | Box Dimensions (LxWxH) | 14.7 x 14.7 x 11.2" | - Leader LV5333-OP73-U IDX Battery Mount for LV5333 (Internal Connection)
| Compatibility | LV5333, LV5380, and LV5382 Waveform Monitors | | Battery Type | IDX | | Connection | Internal | | Dimensions | 5.1 x 3.6 x 0.6" (13.0 x 9.1 x 1.5 cm) | | | | Box Dimensions (LxWxH) | 8.0 x 6.0 x 4.0" |
