User Manual for Leader HD TAB 9-A ASI Transport Stream Reader and IP Analyzer with Signal Level Meter for ATSC Signals Click to enlarge the picture
Contents of the user manual for the Leader HD TAB 9-A ASI Transport
- Product category: Test Equipment Leader
- Brand: Leader
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Leader Test Equipment
|
User manual for the Leader HD TAB 9-A ASI Transport contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Leader product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Leader user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Leader product will considerably shorten its lifespan!
|

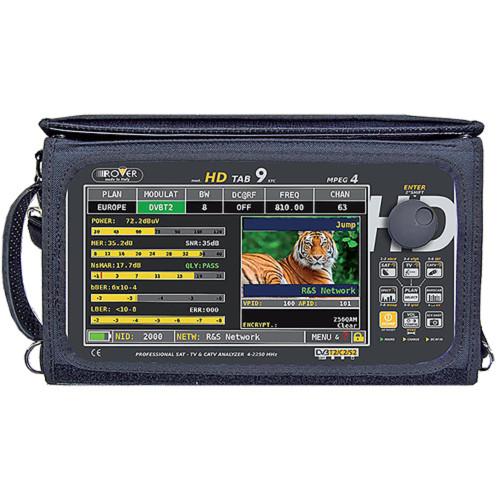

Product description Provided by third party: The HD TAB 9 has an "F" coaxial input to provide RF measurements. There are also ASI IN and out BNC connectors for looking at a transport stream. An optical/electrical converter to carry out power and attenuation measurements is optional. There is a common interface slot and an HDMI output (useful for connection to a monitor, or video projector, to reproduce what is being shown on the display). Two 3.5 mm AV IN and AV OUT jacks with stereo audio function like the HDMI out, but only supplies a SD picture. There are two USB sockets for firmware upgrades, memory plan management and the recording of screenshots. On the right side, there are two RJ-45 sockets for TS input over IP and LAN Ethernet. The IPTV option provides an input for a transport stream over IP which will de-encapsulate the contents of the IP stream, carry out quality measurements and decode the services transported.
- Key Features
-
- ASI transport stream reader, recorder, and analyzer - based on ETR101 and 290
- Decoded picture display and Dolby AC-3 audio
- RF TV/SAT/CATV signal level meter
- Ingress, leakage, barscan & tilt
- Real-time Spectrum with MAX HOLD
- 9-inch color TFT high brightness 16:10 display
- Touch screen
- LI-ion polymer battery for up to 6 hours of operation
Table of Contents
|
Upload User Manual
Have you got an user manual for the Leader HD TAB 9-A ASI Transport Stream Reader and IP Analyzer with Signal Level Meter for ATSC Signals in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLeader HD TAB 9-A Specs | | | Type | Multiformat signal analyzer | | | | Supported Video Standards | PAL, NTSC, SECAM | | Features | Battery-powered, touch screen | | | | Nominal Voltage | AC 120/230 V | | Frequency | 50 - 60 Hz | | Low Voltage Power | DC 12 V | | | | Kit Content | (1) x power adapter | | | | Terminals | (1) x RF input - F connector
(1) x ASI input - BNC
(1) x ASI output - BNC
(1) x HDMI output - 19 pin HDMI Type A
(1) x audio line-in - mini-phone stereo 3.5 mm
(1) x audio line-out - mini-phone stereo 3.5 mm
(1) x USB - 4 pin USB type A
(1) x USB - 4 pin USB type B | | | | Min Operating Temperature | 32
