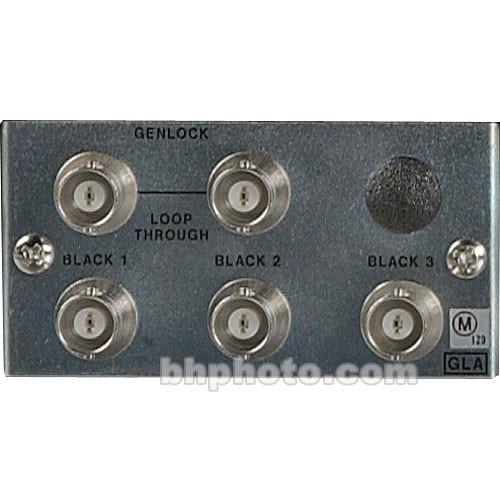

Product description The Leader LT-443D-GLA is a Genlock module for the LT-443 Multiformat Signal Generator Main Frame. This Genlock module has an external reference loop through and a 3-system independent black signal generator. - External Reference
- External analog reference inputs can be NTSC/PAL black burst, 14 formats of HDTV tri-level sync or 525p/625p sync. It can also accept black burst with a 10 field ID as per SMPTE 318M.
- Output Signals
- Output signals can be generated in 3-systems matching to the external reference offering independent timing.
- Module
- This module can be installed or removed to accommodate the users current applications.
In the Box Leader LT-443D-GLA Genlock Module - for LT-443, Many Genlock Formats, HDTV/SD/NTSC/PAL, Blackburst, BNC 2 Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Leader LT-443D-GLA Genlock Module - for LT-443, Many Genlock Formats, HDTV SD NTSC PAL, Blackburst, BNC in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLeader LT443D-GLA Specs | Output | Black Burst x3, 14 formats of tri-level, NTSC/PAL, 525/625, on BNC connectors
Genlock Loop Out, Referenced to External or Internal Sources, on a BNC connector | | Control | Main Frame LT-443D- Genlock In Referencing
- Internal or External
- Manual or Auto
- HDTV/525/625/NTSC/PAL
- Phase Adjustments
|
