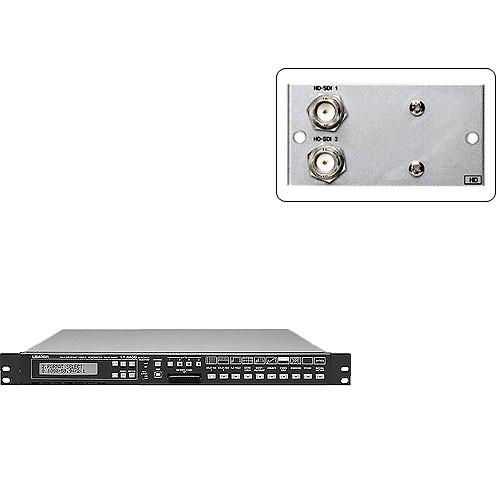

Product description The Leader LT-443D-HD is a HD-SDI signal generation module for the LT-443 Multiformat Signal Generator Main Frame. This HD-SDI module can generate 14 formats of HD-SDI with Logo and ID Character display. It features embedded audio and test pattern generation. - HD-SDI
- 14 Formats of HD-SDI 1080i, 1080p, 1035i and 720p can be generated through the LT-443D main frame.
- Test Patterns
- Many Test Patterns can be Generated:
- Color Bars 100/75, Multiformat
- Flat Field 100/50%
- Line Sweep
- Multiburst
- Bowtie
- Ramp
- Shallow Ramp
- 10 Step Pulse and Bar
- Check Field
- Red Raster
- Cross and Dot
- Monoscope
- Embedded Audio
- 8 channels of embedded audio can be generated and passed via the SDI (BNC) ports. It features adjustable frequency and level.
- ID Character
- ID Characters up to 20 maximum can be developed and displayed.
- Module
- This module can be installed or removed to accomodate the users current applications.
