User Manual for Leader LT-443D-HDB HD-SDI Module - for LT-443, 2 Outputs, Many Signal Formats, HDTV SD NTSC PAL, 2 Digital Blackburst, ID Display, BNC Click to enlarge the picture
Contents of the user manual for the Leader LT-443D-HDB HD-SDI Module - for
- Product category: Signal Generator Accessories Leader
- Brand: Leader
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Leader Signal Generator Accessories
|
User manual for the Leader LT-443D-HDB HD-SDI Module - for contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Leader product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Leader user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Leader product will considerably shorten its lifespan!
|

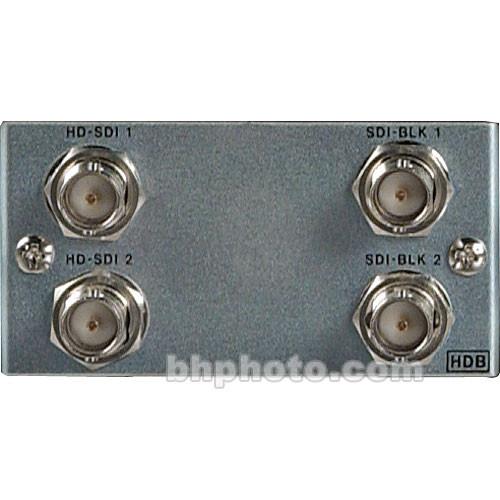

Product description The Leader LT-443D-HD is a HD-SDI signal generation module for the LT-443 Multiformat Signal Generator Main Frame. This HD-SDI module can generate 14 formats of HD-SDI with Logo and ID Character display. It features embedded audio, separate digital blackburst and test pattern generation. - HD-SDI
- 14 Formats of HD-SDI 1080i, 1080p, 1035i and 720p can be generated through the LT-443D main frame.
- Test Patterns
- Many Test Patterns can be Generated:
- Color Bars 100/75, Multiformat
- Flat Field 100/50%
- Line Sweep
- Multiburst
- Bowtie
- Ramp
- Shallow Ramp
- 10 Step Pulse and Bar
- Check Field
- Red Raster
- Cross and Dot
- Monoscope
- Embedded Audio
- 8 channels of embedded audio can be generated and passed via the SDI (BNC) ports. It features adjustable frequency and level.
- ID Character
- ID Characters up to 20 maximum can be developed and displayed.
- Digital Blackburst
- Two separate outputs of digital blackburst are the step up for this module.
- Module
- This module can be installed or removed to accommodate the user's current applications.
In the Box Leader LT-443D-HDB HD-SDI Module - for LT-443, 2 Outputs, Many Signal Formats, HDTV/SD/NTSC/PAL, 2 Digital Blackburst, ID Display, BNC 2 Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Leader LT-443D-HDB HD-SDI Module - for LT-443, 2 Outputs, Many Signal Formats, HDTV SD NTSC PAL, 2 Digital Blackburst, ID Display, BNC in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLeader LT443D-HDB Specs | Output | SD/HD-SDI x2, 14 Formats, SMPTE 240M, SMPTE 274M, SMPTE 296M, on BNC connectors
Digital Blackburst x2, HDTV/SD, on BNC connectors | | Control | Main Frame LT-443D- Video Format
- Test Patterns
- Timing Adjustments
- ID Character
- Embedded Audio Functions
- Blackburst Selection
|
Rating70% users recommend this product to others. And what about you?
