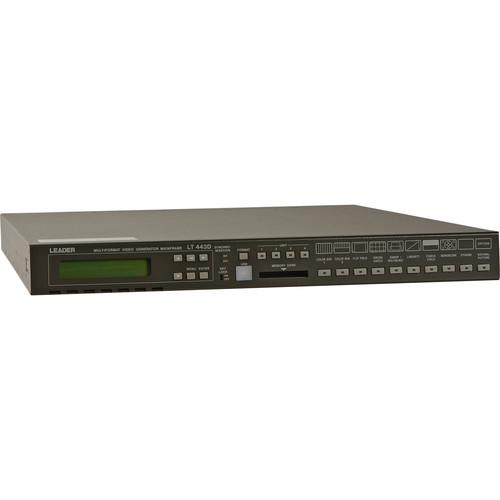

Product description The Leader LT-443D is a test signal generator mainframe; featuring the ability to accept modules supporting multiple signals, patterns and output formats both digital and analog. Nine different modules can be selected by the user; four slots can be occupied at the same time. - Multi-Format
- Composite, Y/C and Component signals are offered for standard video with the addition of RGB and audio tone. SDI and HD-SDI modules can also be installed.
- Memory
- A compact flash I card can be purchased and used to store set-up parameters, logos and natural picture data.
- Genlock
- Although this device can be a very solid reference for studio applications, it also can sync to another reference and slave to that signal.
- Modular Plug and Play
- Any optional Leader output module is automatically recognized and activated.
- External Interface
- Ethernet connection is used for transmission active status and remote control. A USB 1.1 connection is offered for PC connection.
In the Box Leader LT-443D Multiformat Test Signal Generator Main Frame - Accepts and Controls Plug-In Generator Modules, Compact Flash Memory, Ethernet, USB, Rackmountable BNC Cable Spare Fuse Power Cord 2 Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Leader LT-443D Multiformat Test Signal Generator Main Frame - Accepts and Controls Plug-In Generator Modules, Compact Flash Memory, Ethernet, USB, Rackmountable in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLeader LT443D Specs | Output | Compact Flash Slot, memory addition for main frame
Plug and Play Slots x4, multipin slots accessed from rear panel | | Input | Ethernet, 10/100 Base T, Transmission Status and Remote Control
USB, USB 1.1, Feature Support | | Television System | All Television Systems can be Utilized via modules | | Control | Front Panel Push Buttons:
Cross Hatch
Convergence
Window
Checker
Staircase 5 and 10 Step
Demodulation
Color Bars
8 Color Rasters
Multiburst
Video Sweep
Genlock
TriggerMode Switching:
White, Red, Green, Blue, Burst, Sync, Luma, Chroma, InvertMenu Controls:
Next
Cursor (Two Buttons)
Preview
Menu
Enter | | Power Source | 100 to 240 VAC @ 50/60 Hz | | Dimensions (WxDxH) | 16.75 x 22 x 1.75"
42.6 x 56 x 4.45cm | | Weight | 15.4 lbs
7 kg |
