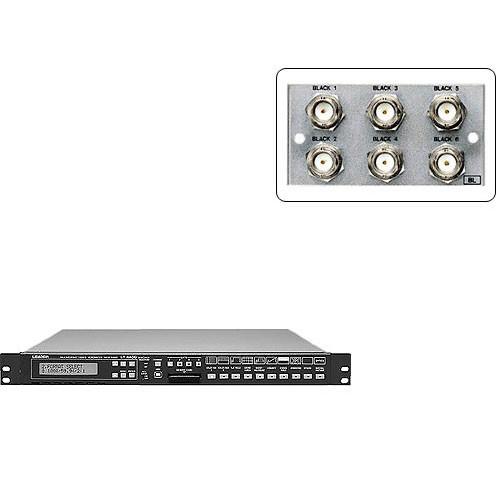

Product description The Leader LT-443DBL Analog Black Module produces 14 formats of HDTV analog tri-level sync, 525P/625p and log sync and NTSC/PAL black burst signals. It fits into the LT-443D Main Frame deriving power and control for signal generation. - 3 Independent Systems
- Each system has 2 outputs to provide the selected sync signal for specific applications. Therefore, this unit can provide three separate sync signals simultaneously.
- ID Pulse
- This device outputs a black signal with a 10 field ID pulse conforming to SMPTE 318M for timing multi-format facilities.
In the Box Leader LT-443DBL Analog Black Module for LT-443D - Sync and Black Burst, 3 Channels, 6 Outputs, HDTV/525p/625p/NTSC/PAL 2 Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Leader LT-443DBL Analog Black Module for LT-443D - Sync and Black Burst, 3 Channels, 6 Outputs, HDTV 525p 625p NTSC PAL in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLeader LT443D-BL Specs | Output | Black Burst or Sync x6, 3 Independent Generators 2 Outputs Each, Various Black and Sync Signals, on BNC connectors | | Television System | HDTV SMPTE 240M/274M/296M
525p
625p
NTSC
PAL | | Control | Main Frame LT-443D:
Sync Type
Output Selection | | Power Source | Power Derived from LT-443D | | Dimensions (WxDxH) | 3.1 x 1.6 x 14.6"
7.9 x 4.1 x 37.1cm | | Weight | 0.6 lbs
280 grams |
