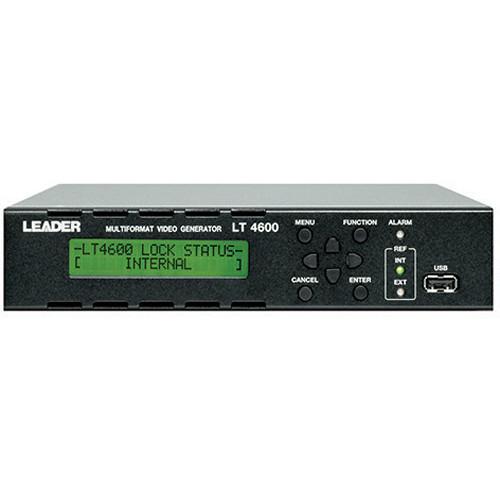

User Manual for Leader LT4600 Multi Format Video Generator with Lip Sync Click to enlarge the picture
Contents of the user manual for the Leader LT4600 Multi Format Video Generator
- Product category: Video & Audio Signal Generators Leader
- Brand: Leader
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Leader Video & Audio Signal Generators
|
User manual for the Leader LT4600 Multi Format Video Generator contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Leader product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Leader user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Leader product will considerably shorten its lifespan!
|
Product description The LT4600 Multi Format Video Generator with Lip Sync from Leader is a 1RU half-rack sized multiformat video generator applicable to 3G-SDI, HD-SDI, and SD-SDI systems. The LT4600 features color bar, SDI check field test pattern, ID characters, logo mark in QVGA size, safety area marker, embedded audio, genlock model for external reference synchronization, and three independent analog black signal systems. The Lip Sync function is a key feature of this video generator. - Accepts 3G-SDI, Dual Link, HD-SDI, and SD-SDI systems.
- SDI outputs can be used independently from each other.
- Lip Sync Function included as standard.
- The ID characters can be superimposed at any arbitrary position on the screen.
- A logo mark (up to 320 pixels by 240 lines) in QVGA size can be superimposed at any arbitrary position on the screen. Logo is converted from bitmap to four-grade monochrome data.
- 90% and 80% safety area markers can be superimposed on the screen.
- A 4:3 aspect ratio marker can also be superimposed in 3G-SDI or HD-SDI formats.
- Simple motion picture mode is provided to scroll the pattern.
- The 32 channels of embedded audio signals (link A and link B - each 4 channels by 4 groups) for 3G-SDI (level B), and the 16 channels of embedded audio signals (4 channels by 4 groups) can be superimposed. The frequency and level can be respectively set for each channel.
- The instrument can be locked to NTSC/PAL black burst or HDTV tri-level sync signal.
- In case of genlock input errors, a Stay-In function is available.
- Three independent analog black signal outputs are provided. The black burst signal with the same format as the SDI output, or HDTV tri-level sync signal with the same format of clock frequency can be selected for variable timing.
- A 48 kHz word clock output and a 48 kHz AES/EBU output are provided to synchronize the audio signal.
- Supports SNMP protocol to easily construct a network system.
- USB slot on the front panel to save and update user data settings.
In the Box Leader LT4600 Multi Format Video Generator with Lip Sync SPU40-105 12V AC Adapter Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Leader LT4600 Multi Format Video Generator with Lip Sync in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLeader LT4600 Specs | | | SDI Video Rates | 3G-SDI: 2.970 Gbps or 2.970/1.001 Gbps
HD-SDI, HD-Dual Link: 1.485 Gbps or 1.485/1.001 Gbps
SD-SDI: 270 Mbps | | Voltage Output | 800 m, V p-p ±10% | | Overshoot | <10% | | Rise & Fall | 3G-SDI: ≤135 ps (20 to 80%)
HD-SDI, HD-Dual Link: ≤270 ps (20 to 80%)
SD-SDI: 0.4 to 1.5 ns (20 to 80%) | | DC Offset | 0 ± 0.5 VDC | | Output Impedance | 75 ohms | | Return Loss | ≥15 dB (5 MHz to 1.485 GHz)
≥10 dB (1.485 to 2.970 GHz) | | Formats | YCBCR 4:2:2, YCBCR 4:4:4, RGB 4:4:4 | | Compliant Standards | Video:
3G-SDI: SMPTE ST 424, SMPTE ST 425, SMPTE ST 372
HD-SDI, HD-Dual Link: SMPTE ST 274, SMPTE ST 296, SMPTE ST 292
SD-SDI: ITU-R BT 601, ITU-R BT 656, SMPTE ST 125, SMPTE ST 259
Embedded Audio:
3G-SDI, HD-SDI, HD-Dual Link: SMPTE ST 299
SD-SDI: SMPTE ST 272
Payload ID: SMPTE ST 352 | | Adjustments | Timing Adjustment Unit:
V: Lines
H: Clocks (148.5 MHz, 148.5 / 1.001 MHz, 74.25 MHz, 74.25 / 1.001 MHz, 27 MHz) | | Test Patterns | 3G-SDI, HD-SDI:
100% color bars, 75% color bars, check field, multiformat color bar (ARIB STD-B28, pattern 2 area can be set to 100% white, 75% white, or +I)
SD-SDI 525i / 59.94:
100% color bar, 75% color bar, SMPTE color bar, check field
SD-SDI 625i / 50:
100% color bar, EBU color bar, BBC color bar, check field | | Switching | Automatically switches between available patterns (except for check field)
Switch Time: 1 to 255 sec | | On/Off Control | Channel On/Off
Function: Each of the Y/G, Cb/B, and Cr/R components can be turned on and off for each channel independently
On: Outputs the specified Y/G, Cb/B, or Cr/R signal
Off:
Y/G: 040 h / 000 h
Cb/B: 200 h / 000 h
Cr/R: 200 h / 000 h Not available when the check field pattern is selected. Black pattern can be output by turning off all channels and all embedded audio signals. | | Image Overlay | Display Precedence: ID characters, logo mark, safety area markers, test pattern (display order cannot be changed)
Simultaneous Display: ID characters, logo mark, safety area markers, and test pattern can be displayed simultaneously | | Genlock Sync | Compliant Standards:
NTSC Black Burst Signal: SMPTE RP 154, SMPTE ST 170, SMPTE ST 318
PAL Black Burst Signal: EBU N14, ITU-R BT.470-6
HD Tri-Level Sync Signal: SMPTE ST 274, SMPTE ST 296
Level:
NTSC Black Burst Signal: -286 mV
PAL Black Burst Signal -300 mV
HD Tri-Level Sync Signal ±300 mV
Input:
BNC, 75 ohms loop through | | World Clock | Output Frequency: 48 kHz
Output Amplitude: 5 V CMOS compatible (when not terminated) | | Analog Output | Compliant Standards:
NTSC Black Burst Signal: SMPTE RP 154, SMPTE ST 170, SMPTE ST 318
PAL Black Burst Signal: EBU N14, ITU-R BT.470-6
HD Tri-Level Sync Signal: SMPTE ST 274, SMPTE ST 296
Output Signal: 6 (3 signals x 2 outputs)
Impedance: 75 ohms | | | | Embedded Audio | 3G-A, HD, SD: 16 channels (4 channels x 4 groups)
3G-B: 32 channels (link A, link B, 4 channels each × 4 groups)
Embedded channels can be turned on or off at the group level | | Sampling Frequency | 48 kHz (synced with the video signal) | | Resolution | 20 bits, 24 bits Limitations for SD-SDI (525i / 59.94): For the 16 channel output, the resolution is set to 20 bits. Up to three groups (12 channels) can be set to output of 24 bits. | | Pre-Emphasis | OFF, 50/15, CCITT (only the CS bit is switched) | | Frequency | SILENCE, 400 Hz, 800 Hz, 1 kHz | | Level | -60 to 0 dBFS (1 dBFS steps) | | Lip Sync | Supported Formats: 3G, HD, HD (DL), SD Not available when the check field pattern is selected. Safety area markers, ID characters, and logo mark cannot be overlaid. | | AES/EBU Audio Output | Compliant Standards: ANSI S4.40 (AES3-1992), AES11-1997, SMPTE ST 276, AES-3id-2001
Output Impedance: 75 ohms unbalanced
Output Amplitude: 1 V p-p ± 0.1 V | | | | Outputs | 2 x BNC, SDI outputs
2 x BNC, analog black output
1 x BNC, world clock output
1 x BNC, AES/EBU digital audio output (2 channel pair) | | External Interface | Ethernet: 10BASE-T / 100BASE-TX auto switching
USB
Type: USB 2.0
Connector: USB type A | | LCD | 20 characters x 2 lines
Backlight: On, Off | | Operating Temperature | 32 to 104°F (0 to 40°C)
Optimal: 50 to 95°F (10 to 35°C) | | Humidity | 85% RH or less (no condensation) | | Power Requirements | Voltage: 12 VDC (10 to 18 VDC)
Maximum Power Consumption: 25 W | | AC Adapter | Input: 100 to 240 VAC, 50/60 Hz, 1 A
Output: 12 VDC, 3.33 A max. | | Dimensions | 8.4 x 1.7 x 15.8" (213 x 44 x 400 mm) | | Weight | 6.2 lb (2.8 kg) |
