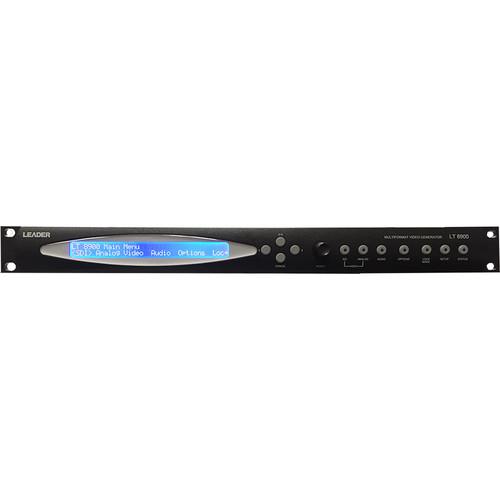

Product description The LT8900-PKG01 Video Sync Generator Package is a bundle that includes the LT8900 Video Sync Generator, an SD/HD-SDI Video Test Pattern software option, and an Audio Test Tones software option. The video test pattern software adds composite analog, SD, and HD patterns, while the audio test tones add analog and AES test tones. - LT8900 Multi-Format Video Sync Generator The LT8900 Multi-Format Video Sync Generator from Leader is a video sync generator that can be activated via software, ensuring that the units are easily upgradable either locally or from a remote location. The LT8900 features SD and HD, plus 3G, GPS solutions, and PTP (Precision Time Protocol), as defined by the IEEE1588 standard.
All HD and tri-level sync formats are accommodated either within the base unit or by fitting the appropriate option board. HD test patterns are available in all of the recognized 1.485 Gb/s standards or, with the optional 3G output board, in any of the extended 2.970 Gb/s formats.
The generator can use black burst or tri-level sync as reference signals. Utilizing the optional GPS Time Reference provides a stable and robust method for accurately locking multiple SPGs and also for governing the unit's LTC, VITC and NTP/PTP outputs. Accurate GPS referencing is managed by the internal receiver module, or by locking to an external source of 1pps and NMEA serial data, guaranteeing the synchronization of all video, audio, PC-based devices and system clocks. The browse-able vector application allows remote configuration and monitoring of all system parameters, in addition to managing software and feature upgrades.
For enhanced security, redundant LT8900 units may be deployed together with the compatible LT8910 changeover unit. This fail-safe, modular product monitors the integrity of both main and reserve reference signals to effect an automatic switch to the reserve unit. Optional boards for detection of tri-level sync, LTC, AES and SDI may also be fitted. - An extensive and evolving library of reference and test signals, including full field test
- 525/625/SD/HD/3G simultaneous operation with independent timing control for all outputs to simplify system integration
- Operation as master generator or locked to GPS, NTP, 10 MHz or video black/burst
- Multiple independent audio generators for AES, embedded SD/HD and analog
- 3G-SDI option for 1080/60p, 1080/59.94p, and 1080/50p formats
- NTP server, client and SNMP support
- Intelligent changeover (LT 8910) for redundant main and reserve operation
- Test pattern and logo import functions
- SD/HD SDI Test Pattern Software Option for LT8900 Video Sync Generator The SD/HD SDI Test Pattern from Leader is a software option that provides video test patterns in SD and HD SDI video formats for the LT8900 Video Sync Generator.
- Audio Test Tones Software Option for LT8900 Video Sync Generator The Audio Test Tones from Leader is a software option that generates audio test tones for the LT8900 Video Sync Generator.
In the Box Bundle Items LT8900 Multi-Format Video Sync Generator ryssdbzbdevxtycqdvfdvrvwzabdqqdzey SD/HD SDI Test Pattern Software Option for LT8900 Video Sync Generator Audio Test Tones Software Option for LT8900 Video Sync Generator Table of Contents
|
Upload User Manual
Have you got an user manual for the Leader LT8900-PKG01 Video Sync Generator Package in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - LT8900 Multi-Format Video Sync Generator
| Inputs | 1 x BNC, PPS GPS receiver antenna (option board 1)
2 x BNC, loop genlock
1 x BNC, 5/10 MHz reference | | Outputs | 1 x BNC, GPS receiver (option board 1)
1 x BNC, AES 1 unbalanced
1 x BNC, AES 2 unbalanced
1 x BNC, clock (10/27 MHz, AES word)
5 x BNC, analog test / black burst
4 x BNC, SDI test signals (option board 2)
4 x BNC, tri-level sync (option board 3)
3 x BNC, SD/HD SDI video | | Control | 1 x RJ45, Ethernet
1 x 25-pin sub-D female, analog audio remotes
1 x 9-pin sub-D female, AES 1 & 2 outputs
1 x 9-pin sub-D female, LTC 1 & 2 outputs | | Power | 2 x AC main, input | | TV Standards | 525 / 625 / SD / HD / 3G, simultaneously | | Accuracy | SPG <±0.5 Hz (0.1 ppm) | | Temperature Stability | 0.1 ppm | | Warm-Up Time | 10 min at 77°F (25°C) | | Genlock Adjustments | Offset: ±4 field in 1 ns steps
Phase: 0 - 360° in 0.1° steps | | Black Burst | Test Signal Adjustment: ±4 field in 1 ns clock steps | | Sample Rate | AES 3: 32, 44.1, 48, 96 kHz selectable | | Tone | Frequency: 25 Hz - 20 kHz in 25 Hz steps
Amplitude: 0 dB to -40 dB in 1 dB steps | | Operating Temperature | 32 to 122°F (0 to 50°C) | | Humidity | 95% RH, non-condensing | | Power | 90 - 260 VAC, 45/63 Hz, 75 VA | | Compliance | Emissions: EN55103-1 environment E2
Radiated: EN55103-2 environment E2
Safety: EN60950 | | Dimensions | 19.0 x 1.7 x 15.7" (48.3 x 4.4 x 40.0 cm) | | Weight | 9.9 lb (4.5 kg)
11.5 lb (5.2 kg) fully equipped, approx | - SD/HD SDI Test Pattern Software Option for LT8900 Video Sync Generator
| Compatibility | LT8900 Video Sync Generator | - Audio Test Tones Software Option for LT8900 Video Sync Generator
| Compatibility | LT8900 Video Sync Generator |
