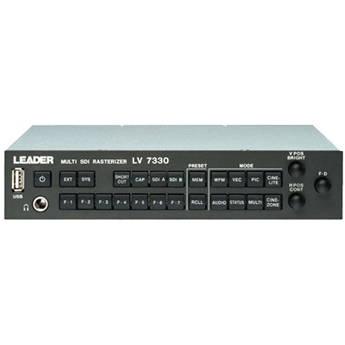

User Manual for Leader LV 7330 Multi SDI Rasterizer Click to enlarge the picture
Contents of the user manual for the Leader LV 7330 Multi SDI Rasterizer
- Product category: Waveform Monitors & Scopes Leader
- Brand: Leader
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Leader Waveform Monitors & Scopes
|
User manual for the Leader LV 7330 Multi SDI Rasterizer contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Leader product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Leader user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Leader product will considerably shorten its lifespan!
|
Product description The LV 7330 Multi SDI Rasterizer from Leader is a lightweight SDI rasterizer that is designed to combine quality performance and an attractive price point. When connected to an XGA monitor, it can display the picture of an HD-SDI or SD-SDI signal in addition to video signal waveforms, vectors, audio data, and data analyses of the signal. This model comes equipped with CINELITE II, a tool that can be used for luminance data analysis. - SDI I/O
- The LV 7330 has two SDI input connectors that can be used for both HD-SDI and SD-SDI input. It also has an SDI output connector that you can use to send a reclocked SDI signal.
- DVI Output
- The various LV 7330 displays are transferred through a DVI-I connector to an XGA (1024 x 768) display. The LV 7330 also uses a squeeze method to support aspect ratios of 16:9 (1366 x 768) and 15:9 (1280 x 768).
- CINELITE II
- The LV 7330 comes standard-equipped with CINELITE II (CINELITE and CINEZONE), which is a video signal luminance information analysis tool. With CINELITE, you can use the cursor to select any 3 points and display their f-stop numbers, percentage values, and level values. You can choose to analyze a single pixel or a small area by setting the size of the measured area to 1 pixel or to the average value for 9 or 81 pixels. With CINEZONE, you can display the luminance levels in the picture using different colors. This allows you to quickly determine the overall luminance distribution in the picture, and it makes it easy to spot overexposure, underexposure, and different luminance levels in dark areas.
- Picture Display
- The LV 7330 has a wide assortment of SDI signal picture display features including zoom, various safety markers, and brightness, contrast, and chroma adjustment. The LV 7330 also supports CEA/EIA-608 closed captioning and superimposition.
- Video Signal Waveform Display
- The LV 7330 uses fully digital waveform display processing to achieve high precision and quality. From video signal waveform display gain expansion, sweep expansion, and cursor measurement to pseudo-composite and RGB displays, the LV 7330 has all of the features that people look for in a waveform monitor. The LV 7330 is equipped with an external sync signal input and it can display video signal waveforms based on a tri-level sync signal or an NTSC or PAL black burst signal.
- Vector Display
- The LV 7330 can display component chrominance signal vectors. The amplitude can be manually zoomed, or set to a fixed magnification value such as five. The IQ axes, which are useful for vector observation, can be turned on and off.
- 5-Bar Display
- The LV 7330 can display the peak levels of the Y, R, G, B and pseudo-composite signals. This feature is useful for monitoring gamut errors.
- Audio Display
- The LV 7330 can extract the audio signal embedded in an SDI signal and display level meters, Lissajous curves, and surround sound images for up to eight channels. The LV 7330 also supports external digital audio input, for which it can display a two-channel level meter and Lissajous curves. The level meter supports loudness metering and is useful for managing the volume level experienced by the listener. The resolution of SD-SDI audio quantization is up to 20 bits.
- Stereo Headphone Output
- The LV 7330 can extract the audio signal embedded in an SDI signal. You can select two channels from the extracted audio and transmit them in stereo through the headphone output connector.
- Status Display
- The status display has a number of advanced features, including SDI signal error detection and analysis features.
- Time Code Display
- The LV 7330 can decode SMPTE RP-188 time codes (LTC or VITC) and display them. These codes can be used as timestamps in the event log.
- Screen Capture
- The display can be captured. Captured displays can be viewed or superimposed over an input signal. Captured displays can be saved in internal memory (RAM) or USB memory or sent to a PC through an Ethernet connection as bitmap data.
- Presets Settings
- The LV 7330 can remember up to 30 frequently used setting configurations. The configurations can be recalled easily from the front panel or using commands sent through the Ethernet or remote connector.
- Remote Connector
- You can recall presets by sending commands through the remote connector. Also, a tally light can be displayed on the screen.
- Ethernet Connector
- From a PC connected to the LV 7330 through the Ethernet connector, you can recall presets, execute panel operations, transfer files, and monitor errors.
- Last Memory
- The LV 7330 backs up the current settings so that you can use the same settings that you were using before immediately after powering it up.
- Power Supply
- The LV 7330 has an XLR DC input connector and runs on a 12VDC power supply.
In the Box Leader LV 7330 Multi SDI Rasterizer Rasterizer Instruction Manual 15-Pin D-Sub Connector 15-Pin D-Sub Connector Cover Ferrite Core Two-Year Warranty Against Defects in Material & Workmanship Table of Contents
|
Upload User Manual
Have you got an user manual for the Leader LV 7330 Multi SDI Rasterizer in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLeader LV 7330 Specs | Inputs | SDI INPUT:
Input Connector: 2 BNC connectors (A/B switching)
Input Impedance: 75 Ohms
Input Return Loss:15 dB for 5 MHz to the serial clock frequency
Maximum Input Voltage: >2V (DC + peak AC)
External Reference Input*
Input Signal: Tri-level sync or NTSC/PAL black burst signal
Input Connector: 1 pair of BNC connectors loop-through
* If the video signal waveform or phase difference is displayed using an external sync signal as reference, the waveform phase one clock before or after an SDI signal is inserted or the power is turned on is indefinite. AES/EBU INPUT:
Input Connector: 1 BNC connector
Supported Formats: IEC 60958
Sampling Frequency: 48 kHz | | Outputs | SDI OUTPUT:
Output Connector: 1 BNC connector, reclocks and transmits the selected SDI input signal
Output Impedance: 75 Ohms
Output Voltage: 800mVp-p, >10 % HEADPHONE OUTPUT:
Output Signal: The LV 7330 extracts and transmits the audio signal embedded in an SDI signal.(Must be synchronized to the video signal.)
Output Connector: One 6.3mm (1/4") stereo jack
Volume Adjustment: Configured in the menu
Impedance: 32 Ohms (16 to 600 Ohms) | | Control | USB CONNECTOR:
Function: Used to save screen captures, event logs, preset data, and data dumps
Specifications: USB 2.0
Media: Only USB memory devices are supported. REMOTE CONNECTOR:
Function: Used to recall presets, display a tally light, and switch input channels (A/B)
Control Signal: TTL level (active-low logic)
Control Connector: 15-pin D-sub (female) | | Power | Voltage: 10 to 18VDC
Power Consumption: 18W maximum | | Dimensions (HxWxD) | 1.73 x 8.46 x 9.84" (44 x 215 x 250mm) | | Weight | 2.87 lbs (1.3kg) | | | | Package Weight | 5.3 lb | | Box Dimensions (LxWxH) | 15.4 x 13.2 x 5.5" |
