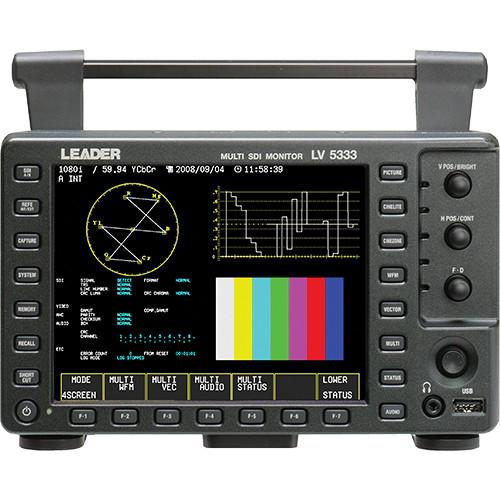

Product description For judging exposure and color on set and in the studio, the Leader LV5333 3G/HD/SD-SDI Portable Waveform Monitor is equipped with accurate video signal waveform and vectorscope displays. The monitor's SDI inputs can accept 3G, HD, and SD-SDI signals.The 6.5" TFT LCD screen can display scopes and video images in high quality. Additionally, the CINELITE II software is included with the LV5333 to provide exposure metering. The LV5333 also offers an embedded audio signal display, allowing level-meter measurements ensuring a strong signal that doesn't distort. Note: An AC adapter is not included. The following model is required: Leader AC Adapter for LV5330/LV5333 (MFR# SPU41A-105). - Supports 3G-SDI, HD-SDI, and SD-SDI signals
- 6.5" TFT LCD XGA display (1024 x 768) for waveform and picture representations
- Includes CINELITE II and CINELITE Advanced
- Includes Histogram, User Gamma Display, Gamut, and Level Error functions
- Line Selector—selects any line of the video signal to be displayed and provides waveform, vectorscope, and 5-bar representations of the selected line
- Cable Length, EXT Phase, and Field Frequency Deviation Display
- Detects EIA608 and EIA708 closed captioning
- Supports up to 16 channels of embedded audio signals
- Includes an AES/EBU output connector for two audio channels
- Extracts embedded audio signals and sends two user-selectable audio channels to the headphone jack
- Audio shortcut button located on the front panel
- Includes "Screen Capture" to capture the displayed image and save it to the internal memory (RAM) or to a USB memory device
- The internal memory holds up to 30 presets allowing quick access to favorite instrument setups
- Instrument can be remote controlled from a PC over an Ethernet network
- Can be mounted on a tripod for on-camera fitting
In the Box Leader LV5333 6.5" 3G/HD/SD-SDI Portable Waveform Monitor Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Leader LV5333 6.5" 3G HD SD-SDI Portable Waveform Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLeader LV5333 Specs | Rear Panel Connectors | 1 x BNC, Ext Ref
1 x BNC, Digital audio output
1 x 15-pin, Remote connector
1 x 4-pin XLR, DC in
2 x BNC, SDI in
1 x BNC, SDI out
1 x RJ-45, Ethernet | | SDI Standards | 3G-SDI
HD-SDI
SD-SDI | | | | Operating Temperature | 32 to 104°F / 0 to 40°C
Optimal: 50 to 86°F / 10 to 30°C | | Operating Humidity | 85% RH (no condensation) | | Elevation | Up to 6561' / 2000 m | | Overvoltage Category | II | | Pollution Degree | 2 | | Voltage | 10 to 18 VDC | | Power Consumption | 28 W max. | | Dimensions | 8.5 x 5.0 x 2.5" / 21.5 x 12.8 x 6.3 cm | | Weight | 3.3 lb / 1.5 kg | | | | Package Weight | 6.35 lb | | Box Dimensions (LxWxH) | 14.7 x 14.7 x 11.2" |
