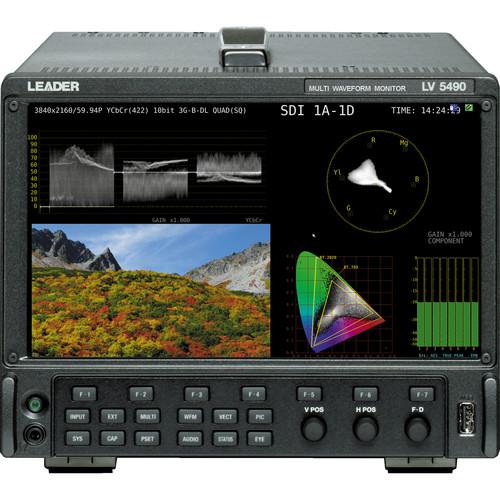

User Manual for Leader LV5490 Quad Multi Format 4K 3G-SDI Waveform Monitor Click to enlarge the picture
Contents of the user manual for the Leader LV5490 Quad Multi Format 4K
- Product category: Waveform Monitors & Scopes Leader
- Brand: Leader
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Leader Waveform Monitors & Scopes
|
User manual for the Leader LV5490 Quad Multi Format 4K contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Leader product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Leader user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Leader product will considerably shorten its lifespan!
|
Product description The Leader LV5490 Quad Multi Format 4K 3G-SDI Waveform Monitor allows you to display up to four DCI or UHD 4K signals simultaneously with waveform applied. It features eight 3G/HD/SD SDI channels, four dedicated as inputs with cable length measurement capability, and four configurable between inputs and outputs. You can display up to four 4K signals by dual-link 3G-SDI input, and up to two via quad-link 3G-SDI input. The display is 9" and features a 1920 x 1080 resolution, IPS wide viewing angle, and LED backlight. A screen capture feature will allow you to capture and store images for later viewing and also save them as bitmap files on USB memory sticks for review on a PC.
Other connections consist of External Reference loop-through I/O, SDI and DVI monitoring outputs, RS-422 and RS-485 RJ-45 jacks, and a 15-pin remote input. You can also install optional digital audio SDI I/O and an RJ-45 Ethernet jack. Digital audio output will let you de-embed and output the input audio as well as display Lissajous, surround sound, and meter displays. Other options include Dolby decode, chromaticity diagram, and eye pattern and jitter measurement. - Key Features
-
- Eight 3G/HD/SD SDI channels (4 dedicated inputs with cable length measurement; 4 configurable as inputs or outputs)
- Supports DCI 4K (4096 x 2160) and UHD 4K (3840 x 2160) formats
- Displays up to four 4K signals via dual link 3G-SDI input, and up to two 4K signals via quad link 3G-SDI
- Display two sets of HD-SDI dual link signals simultaneously
- Built-In 9" 1920 x 1080 XGA IPS LED backlit display
- Adjustable color temperature
- Quadrant (square division) and 2-sample interleave processing picture display
- HD-SDI and DVI monitoring
- 4K pattern generator function (75%-100% color bars, ramp, and SDI re-clocked output)
- Waveform, vector, and picture can be displayed individually or in combination
- Custom user-definable layout
- SDI signal data analysis function allows for cable length measurement, CRC error, embedded audio error, event log, data dump, timing display, and more
- 16 channels of audio display per one SDI signal
- Frame capture
- Screen capture to internal or optional USB memory
- External remote connector
- Supports USB mouse control
- Digital audio option: de-embeds SDI audio and displays Lissajous, surround sound, and meter displays
- Chromaticity diagram option: follows the ITU-R BT.2020 standard
- Eye pattern and jitter measurement options
- RJ-45 connector option
In the Box Leader LV5490 Quad Multi Format 4K 3G-SDI Waveform Monitor Power Supply 2-Year Limited Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Leader LV5490 Quad Multi Format 4K 3G-SDI Waveform Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLeader LV5490 Specs | Display | XGA IPS LED backlit display: 9" (23 cm) | | Display Resolution | 1920 x 1080 | | Connections | 4x 3G/HD/SD SDI dedicated inputs
4x 3G/HD/SD SDI configurable between input and output
2x EXT REF loop through
1x 3G/HD/SD SDI monitor output
1x DVI-D monitor output
2x RS-422/485 on RJ-45
1x 15-pin remote input
1x USB
1x Headphone jack | | Supported Resolution | Up to 4K 4096 x 2160 or 3840 x 2160 | | Dimensions | 8.8 x 7.4 x 14.2" (22 x 19 x 36 cm) | | Weight | 10.4 lb (4.7 kg) | | | | Box Dimensions (LxWxH) | 24.0 x 15.0 x 14.0" |
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 34 owners. Add your rating and experience with the product.
