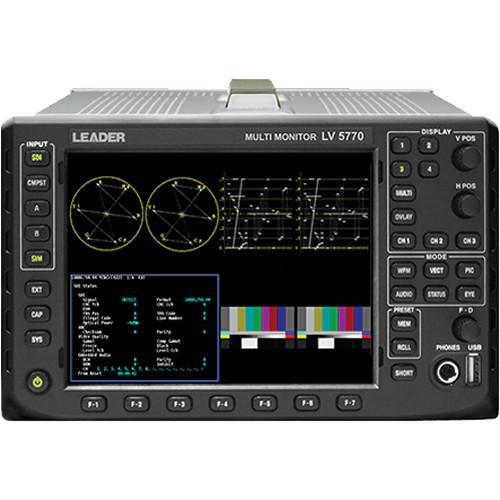

Product description The LV5770A-E Waveform Monitor from Leader accepts two 3G/HD/SD-SDI sources and provides picture, waveform, vector, CINELITE II, 5-bar, and status displays individually and in various screen combinations. Optional digital and analog audio I/O provide built-in de-embedding and digital-to-analog audio conversion. The waveform monitor also features loudness, lip sync, and surround monitoring. - Key Features
-
- Supports 3G-SDI, HD-SDI, and SD-SDI signals
- Built-in XGA Display (1024 x 768) for crisp waveforms and picture representations
- Eye pattern and jitter measurement for evaluating the condition of SDI feeds
- Screen Capture feature allows you to capture the entire display as still-image data
- Autonomous monitoring and error detection
- ANC data analysis; settable error levels with monitoring; alarms and error logs with timecode
- Platform can monitor and display two sources at the same time in two or four split screen displays
- DVI-D rasterized output mirrors built-in screen
- HDMI program output of the selected source is provided
- Accepts and displays on-picture and data for closed caption
- Active Format Description (AFD)
- 3D Assist functionality for 3D video signal monitoring
- Gamma look-up tables
- USB connector allows for the use of a flash drive for storing captured screens, presets, and software/firmware updates
- Ethernet connectivity allows for remote control over the web; supports TELNET, FTP, HTTP, and SNMP
- Universal AC power supply allows for worldwide use
In the Box Leader LV5770A-E Waveform Monitor for 3G/HD/SD-SDI Signals with Eye/Jitter Pattern Option Power Cord Cover/Inlet Stopper 2 x Rackmount ANSI Screw 15-Pin D-Sub Connector and Cover 37-Pin D-Sub Connector and Cover Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Leader LV5770A-E Waveform Monitor for 3G HD SD-SDI Signals with Eye Jitter Pattern Option in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLeader LV5770A-E Specs | Rear Panel Connectors | 1 x Analog audio
1 x Remote
4 x Digital audio AES/EBU inputs
4 x Digital audio AES/EBU outputs
1 x RJ45, Ethernet
1 x DVI-D XGA output
2 x Composite inputs
1 x Composite output
1 x HDMI output
2 x SDI inputs
1 x Reclocked loop-through and switched output
1 x Power
1 x Ext Ref loop-through input | | SDI Standards | 3G-SDI
HD-SDI
SD-SDI | | Bit Rate | 3G-SDI: 2.970 Gb/s or 2.970/1.001 Gb/s
HD-SDI: 1.485 Gb/s or 1.485/1.001 Gb/s
SD-SDI: 270 Mb/s | | Voltage | 90 to 250 VAC, 50/60 Hz | | Power Consumption | 120 W | | Operating Temperature | 32 to 104°F / 0 to 40°C
Recommended: 50 to 86°F / 10 to 30°C | | Operating Humidity | 85% RH | | Operating Environment | Indoors | | Elevation | Up to 6562' / 2000 m | | Pollution Degree | 2 | | Dimensions | 8.5 x 5.3 x 17.1" / 21.5 x 13.3 x 43.5 cm excluding protrusions | | Weight | 8.8 lb / 4 kg | | | | Package Weight | 11.95 lb | | Box Dimensions (LxWxH) | 22.0 x 11.9 x 11.1" |
