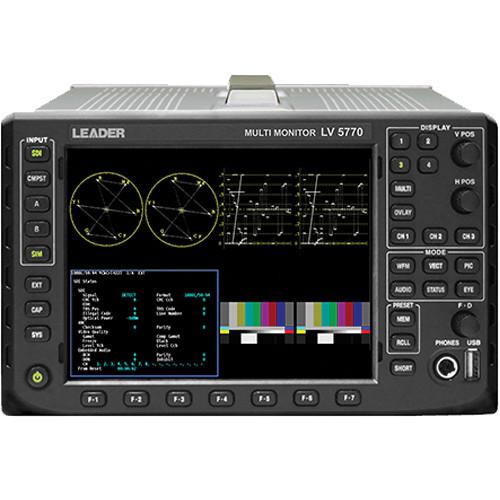

User Manual for Leader LV5770A Waveform Monitor for 3G HD SD-SDI Signals Click to enlarge the picture
Contents of the user manual for the Leader LV5770A Waveform Monitor for 3G
- Product category: Waveform Monitors & Scopes Leader
- Brand: Leader
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Leader Waveform Monitors & Scopes
|
User manual for the Leader LV5770A Waveform Monitor for 3G contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Leader product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Leader user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Leader product will considerably shorten its lifespan!
|
Product description The LV5770A Waveform Monitor from Leader accepts two 3G/HD/SD-SDI sources and provides picture, waveform, vector, CINELITE II, 5-bar, and status displays individually and in various screen combinations. Optional digital and analog audio I/O provide built-in de-embedding and digital-to-analog audio conversion. The waveform monitor also features loudness, lip sync, and surround monitoring. - Key Features
-
- Supports 3G-SDI, HD-SDI, and SD-SDI signals
- Built-in XGA Display (1024 x 768) for crisp waveforms and picture representations
- Screen Capture feature allows you to capture the entire display as still-image data
- Autonomous monitoring and error detection
- ANC data analysis; settable error levels with monitoring; alarms and error logs with timecode
- Platform can monitor and display two sources at the same time in two or four split screen displays
- DVI-D rasterized output mirrors built-in screen
- HDMI program output of the selected source is provided
- Accepts and displays on-picture and data for closed caption
- Active Format Description (AFD)
- 3D Assist functionality for 3D video signal monitoring
- Gamma look-up tables
- USB connector allows for the use of a flash drive for storing captured screens, presets, and software/firmware updates
- Ethernet connectivity allows for remote control over the web; supports TELNET, FTP, HTTP, and SNMP
- Universal AC power supply allows for worldwide use
In the Box Leader LV5770A Waveform Monitor for 3G/HD/SD-SDI Signals Power Cord Cover/Inlet Stopper 2 x Rackmount ANSI Screw 15-Pin D-Sub Connector and Cover 37-Pin D-Sub Connector and Cover Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Leader LV5770A Waveform Monitor for 3G HD SD-SDI Signals in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLeader LV5770A Specs | Rear Panel Connectors | 1 x Analog audio
1 x Remote
4 x Digital audio AES/EBU inputs
4 x Digital audio AES/EBU outputs
1 x RJ45, Ethernet
1 x DVI-D XGA output
2 x Composite inputs
1 x Composite output
1 x HDMI output
2 x SDI inputs
1 x Reclocked loop-through and switched output
1 x Power
1 x Ext Ref loop-through input | | SDI Standards | 3G-SDI
HD-SDI
SD-SDI | | Bit Rate | 3G-SDI: 2.970 Gb/s or 2.970/1.001 Gb/s
HD-SDI: 1.485 Gb/s or 1.485/1.001 Gb/s
SD-SDI: 270 Mb/s | | Voltage | 90 to 250 VAC, 50/60 Hz | | Power Consumption | 120 W | | Operating Temperature | 32 to 104°F / 0 to 40°C
Recommended: 50 to 86°F / 10 to 30°C | | Operating Humidity | 85% RH | | Operating Environment | Indoors | | Elevation | Up to 6562' / 2000 m | | Pollution Degree | 2 | | Dimensions | 8.5 x 5.3 x 17.1" / 21.5 x 13.3 x 43.5 cm excluding protrusions | | Weight | 8.8 lb / 4 kg | | | | Package Weight | 11.1 lb | | Box Dimensions (LxWxH) | 22.0 x 12.0 x 11.2" |
