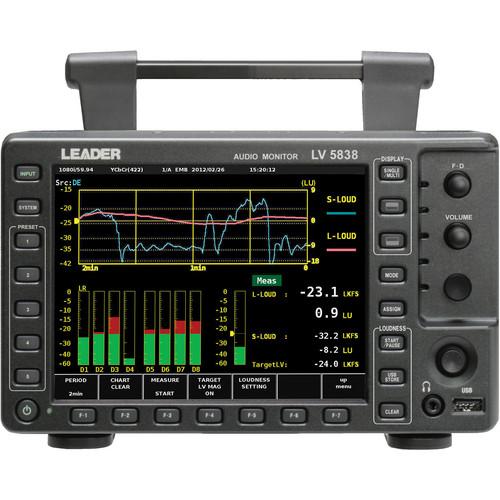

User Manual for Leader LV5838 Audio Monitor for Audio Console and Master Monitoring Click to enlarge the picture
Contents of the user manual for the Leader LV5838 Audio Monitor for Audio
- Product category: Waveform Monitors & Scopes Leader
- Brand: Leader
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Leader Waveform Monitors & Scopes
|
User manual for the Leader LV5838 Audio Monitor for Audio contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Leader product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Leader user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Leader product will considerably shorten its lifespan!
|
Product description The Leader LV5838 Audio Monitor for Audio Console and Master Monitoring measures audio signals that are embedded in 3G, HD, SD-SDI, and AES/EBU signals. It can display loudness measurements, level meters, Lissajous curves, surround sound fields, and audio status independently or in combination. All errors and events can be logged with local time information or time code information that is embedded in video signals. Logs can be stored in external storage media. - Equipped with 8 Connectors (16 channels) of AES/EBU Signal Inputs
- The monitor is equipped with 8 BNC connectors (16 channels).
- Support for LPCM, DOLBY-E, DOLBY-DIGITAL, and DOLBY-DIGITAL Plus
- LPCM audio is supported as standard. Dolby-E, Dolby-Digital, and Dolby-Digital Plus can be supported with a Dolby module (sold separately).
- Headphone Output
- A 3.5 mm mini jack is available.
- Support for Various Types of Scales
- The monitor supports dBFS, Nordic, BBC, and DIN level meter scales. The level scale for loudness measurements supports both absolute values and relative values in reference to a target level.
- Wide Variety of Measurement Features
-
- Audio level meter and peak hold meter capable of showing measurements for up to 16 channels simultaneously
- Lissajous display capable of displaying Lissajous curves and correlation meters of any 2 channels
- Surround display capable of displaying Lissajous curves and surround sound fields of adjacent channels
- Status display capable of showing measurements for 16 channels simultaneously
- Loudness measurement in 2 measurement modes of the 3 available measurement modes: monaural, stereo, and 5.1 channel
- Chart display capable of showing the change in the short-term loudness values and long-term loudness values over time
- Logging of long-term loudness values with local time and time code information
- Channel status analysis display
- User bit display
- Metadata analysis display for Dolby-E, Dolby-Digital, and Dolby-Digital Plus with a Dolby module (sold separately)
- Synchronous measurement of audio signals with black burst, tri-level sync, or CW signals received through the EXT REF connector
- Amplitude measurement of signals received through AES/EBU connectors
- Loudness Measurement On/Off Control from the External Control Connector
- Signals can be applied to the external control connector to start or stop loudness measurements, as well as to clear measurement results.
In the Box Leader LV5838 Audio Monitor for Audio Console and Master Monitoring Limited 2-Year Warranty Table of Contents
|
