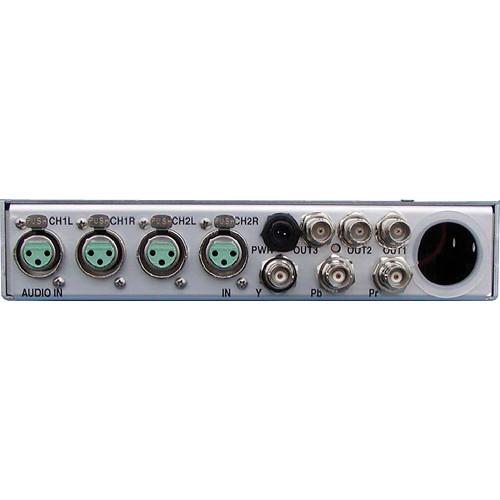

Product description The Leader LV7330-AD A/D Converter & Audio Embedder is a 1RU instrument that provides analog audio and video feeds to the LV7330 HD/SD-SDI rasterizer. It supports SD signals such as 525i 29.97 and 625i 25 and HD signals such as 720p component 50/59.94/60 and 1080i component 50/59.94/60 as well as up to 4 analog audio input channels. The LV7330-AD automatically detects the video input format and embeds the corresponding audio inputs in the SD/HD-SDI outputs. It is ideal for adding analog input capabilities to any SD/HD-SDI audio/video instrument or converting analog cameras, tape decks or any professional video equipment with analog outputs to digital HD or SD-SDI. - Provides analog video and analog audio feeds to the LV7330 HD/SD-SDI rasterizer
- Supports SD signals including 525i 29.97 and 625i 25 and HD signals including 720p component 50/59.94/60 and 1080i component 50/59.94/60
- Supports up to 4 analog audio input channels
- Automatically detects the video input format and embeds the corresponding audio inputs in the SD/HD-SDI outputs
- Ideal for adding analog input capabilities to any SD/HD-SDI audio/video instrument or converting analog cameras, tape decks, or any professional video equipment with analog outputs to digital HD or SD-SDI
In the Box Leader LV7330-AD A/D Converter & Audio Embedder 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Leader LV7330-AD A D Converter & Audio Embedder in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLeader LV7330 Specs | Video Inputs | SD component, composite, or Y/C input
HD analog component video input | | Audio Inputs | 4 channel XLR balanced | | Video/Audio Outputs | 3x SDI/HD-SDI w/embedded audio outputs | | Audio Bitrates | 12 bit video, 24 bit audio A/Ds | | Switching | External dip switch configuration | | Power | 5-18VDC | | Dimensions (WxH) | 9.5 x 1.8" (241 x 44mm) - half rack wide by 1 RU high |
