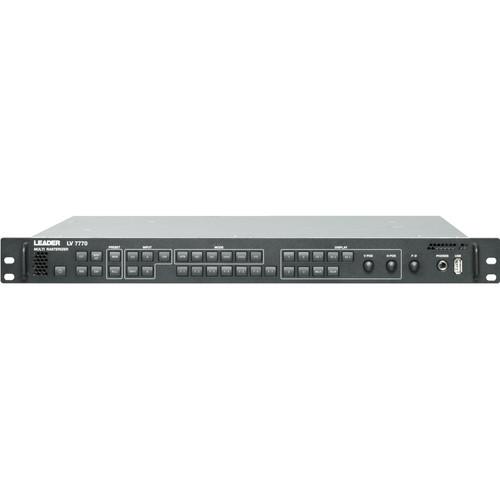

User Manual for Leader LV7770E Multi SDI Rasterizer with Eye Pattern & Jitter Measurement Board Click to enlarge the picture
Contents of the user manual for the Leader LV7770E Multi SDI Rasterizer with
- Product category: Waveform Monitors & Scopes Leader
- Brand: Leader
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Leader Waveform Monitors & Scopes
|
User manual for the Leader LV7770E Multi SDI Rasterizer with contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Leader product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Leader user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Leader product will considerably shorten its lifespan!
|
Product description The Leader LV7770E Multi SDI Rasterizer with Eye Pattern & Jitter Measurement Board is a 1RU instrument for tight-space applications. Use the LV7770E Rasterizer with a built-in screen for maximum system design flexibility without loss of operations continuity. The Rasterizer includes 8 channel AES / EBU inputs / outputs (menu-selectable) and de-embeds AES/EBU from the SDI feed allowing you to analyze the audio content and to output AES / EBU to the next stage if desired. - Accepts two 3G, Dual Link, or SD / HD-SDI sources that can be displayed simultaneously or individually
- Picture, Waveform, Vector, Audio, CINELITE II, CINELITE Advanced, 5-Bar, and status displays
- Platform can monitor and display two sources at the same time in 2 or 4 split screen displays
- 3D Assist D isplay available by applying the video signal for the left-eye to channel A and the one for the right-eye to channel B
- DVI-I rasterized output displays to external LCD monitor in XGA resolution
- Standard DVI-D Computer Monitor Rasterizer Output emulates built-in screen display
- HDMI program output of the selected source is provided
- Picture-only output can send the selected SDI input source to an external HDMI monitor
- Screen Capture, Frame Capture, and Error Capture features available
- Supports options including Physical Layer Testing with Eye Pattern, Digital & Analog Audio, and Composite Inputs
- Accepts 2 composite inputs and provides Switched Monitor Output of the selected composite source
- As standard, digital audio supports Loudness, Lip Sync and A/V Delay Measurements, in addition to providing Lissajous and Bar Graph displays
- Dolby option (sold separately) for Dolby E or Dolby Digital signals compressed in embedded audio or digital audio signals
- Data Analysis, Settable Error Levels with Monitoring, Alarms, and Error Logs with Time Code
- USB connector allows the use of a flash drive for storing captured screens, presets and software / firmware updates
- Ethernet connectivity allows for remote control over the web
- Supports TELNET, FTP, HTTP, and SNMP
- Can also be controlled through the LV7770-01 Remote Controller (sold separately)
- Universal AC power supply allows for worldwide use
- Remote connector provides remote control of preset selections
- Provides 8 channels of Analog Audio I/O
- External Reference Loop-through input accepts Standard Tri-Level Sync and Black Burst
In the Box Leader LV7770E Multi SDI Rasterizer with Eye Pattern & Jitter Measurement Board Limited 2-Year Warranty on Parts & Labor Table of Contents
|
Upload User Manual
Have you got an user manual for the Leader LV7770E Multi SDI Rasterizer with Eye Pattern & Jitter Measurement Board in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLeader LV7770E Specs | Connectors | 8-channels of digital audio AES / EBU inputs / outputs
Remote connector
Ethernet
XGA, HDMI, and SDI outputs
Analog audio
Composite Input
External reference loop-through input | | Power Supply | Universal: 90 to 250 VAC, 50 to 60 Hz | | Dimensions (W x H x D) | 19.0 x 1.8 x 17.8" (482.6 x 45.7 x 452.1 mm) | | Weight | Approximately 11 lb (5 kg) |
