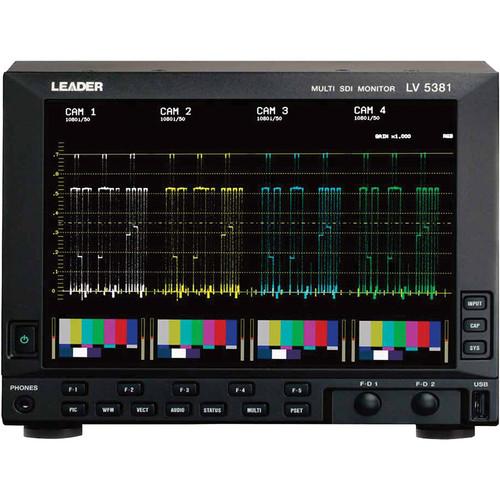

Product description The Leader Multi SDI Monitor, with a built-in 8.4” TFT-LCD, is a waveform monitor supporting resolutions of up to 1024 x 768, and capable of displaying up to 4 SDI input signals simultaneously. It is optimized for level adjustment of outputs from multiple cameras, and features a level meter display for embedded audio, an error display for indicating the transmission errors, and a 5-bar display that displays video signal peak levels using 5 bars.
XGA display offers high color reproducibility that makes the monitor useful for picture monitoring. The Multi SDI Monitor features video signal waveform display, vector display, picture display, audio level meter display, transmission error detection, and gamut error detection. It can display up to 4 input SDI signals on top of each other or in side by side configuration, and is suitable for adjusting the gain and black balance values of multiple cameras.
CINEZONE feature checks the luminance distribution of the picture, while the CINELITE feature enables you to adjust the gain of multiple cameras by managing different levels of specific points on the picture display. The Multi SDI Monitor can store up to 30 front panel presets. In addition, all the panel keys come with LEDs, thus enabling you to view the keys in dark.
The video signal waveform display allows you to view the converted Y CB CR signal on a single screen, and the screen can be divided in to 4 areas with each area displaying a different display. Images can be saved directly on to the USB thereby enabling you to view the data on PC. A tri-level sync signal or an NTSC or PAL black burst signal serves as an external sync signal, and can be used as a reference signal for displaying video signal waveforms.
Embedded audio of an SDI signal can be delivered in stereo via the headphone output jacks. The Multi SDI Monitor stores the panel settings in to the memory, and allows in assigning IDs to input channels. - Waveform monitor with a built-in 8.4" TFT-LCD - capable of displaying up to 4 SDI input signals simultaneously
- Optimized for level adjustment of outputs from multiple cameras
- Features a level meter display for embedded audio, an error display for indicating the transmission errors, and a 5-bar display that displays video signal peak levels
- XGA display - offers high color reproducibility (useful for picture monitoring)
- Features video signal waveform display, vector display, picture display, audio level meter display, 5-bar display, transmission error detection, and gamut error detection
- Displays up to 4 input SDI signals on top of each other or in side by side configuration that enables in adjusting the gain and black balance of the cameras
- CINEZONE feature - checks the luminance distribution of the picture
- CINELITE feature - enables you to adjust the gain of multiple cameras by managing different levels of specific points on the picture display
- Can store up to 30 front panel presets
- Panel keys come with LEDs - enable you to view the keys in dark
- Video signal waveform display - allows you to view the converted Y CB CR signal on a single screen
- Screen can be divided in to 4 areas with each area displaying a different display
- Input Y CB CR signal - can be converted in to an RGB or pseudo-composite signal and can be viewed on the video signal waveform display
- Images can be saved directly on to the USB - enabling you to view the data on PC
- Tri-level sync signal or an NTSC or PAL black burst signal serve as an external sync signal and can used as a reference signal for displaying video signal waveforms
- Embedded audio of an SDI signal can be delivered in stereo via the headphone output jacks
- Stores the panel settings in to the memory, and allows in assigning IDs to input channels
- Allows in adjusting color temperature specification, brightness, contrast, and aperture
In the Box Leader Multi SDI Monitor AC Adaptor Instruction Manual 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Leader Multi SDI Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLeader LV5381 Specs | | | Compliant Standards | SMPTE - 299 M (HD-SDI) SMPTE - 272 M (SD-SDI) | | Quantization | 24 bits | | Clock Generation | Generated from the video clock | | Synchronization | All audio channels must be synchronized to the video clock | | | | SDI Input | Input connectors - 4 BNC connectors (channels A, B, C, and D) | | SDI Output | Output connectors - 2 BNC connectors | | Output Signal | SDI signal selected from channel A or B is reclocked and generated SDI signal selected from channel C or D is reclocked and generated | | Output Impedance | 75 ohms | | Output Voltage | 800 mVp-p ± 10% | | Input/Output Return Loss | ≥ 15 dB for 5 MHz to the serial clock frequency | | | | Input Signal | Tri-level sync or NTSC/PAL black burst signal | | Input Connectors | 2 BNC connectors | | Input Impedance | 15 k ohms passive loop-through | | Input Return Loss | ≥ 30 dB for 50 kHz to 30 MHz into 75 ohms | | Maximum Input Voltage | ±5 V (DC + peak AC) | | | | Output Signal | Extracts and transmits the audio signal embedded in an SDI signal | | Output Channels | Specified AES/EBU pair | | Sampling Frequency | Only 48 kHz is supported | | Output Connector | 1 stereo miniature jack | | Volume Control | Configured from the menu | | Power Output | 50 mW maximum (with 16 ohms load resistance) | | | | USB Port | USB 2.0 | | Clip Splitting | Only supports USB memory devices | | | | LCD type | 8.4" color TFT | | Display Format | XGA | | Resolution | 1024 x 768 | | Backlight/Brightness | 32 levels | | Auto Shutoff | Time to turn off the LCD can be set | | | | Screen Capture | Captures the screen to an image file (only one screen capture is stored in internal memory) | | Clip Splitting | Internal memory (RAM) and USB memory | | Data Output | Screen captures can be saved as bitmap files to USB memory | | Data Inputs | Data saved to USB memory can be loaded and displayed on the LV 5381 | | Preset Mode | Comprehensive preset, display mode preset | | | | Simultaneous Input Mode Display Format | Mixed, tiled, aligned | | Display Mode | Overlay, parade | | Overlay | Overlays component signals | | Parade | Displays component signals side by side | | Blanking Period | H and V blanking periods can be displayed or hidden | | RGB Conversion | Converts a Y,CB,CR signal into an RGB signal and displays the result | | Pseudo-composite Display | Artificially converts a component signal into a composite signal | | Channel Assignment | Displayed in GBR or RGB order (selectable when RGB conversion is enabled) | | Line Select | Displays the selected line | | Gain | x1, x5 Variable gain - x0.2 to x2.0 | | Filter | Flat, low pass | | | | Amplitude Accuracy | ±0.5% | | HD-SDI Input | Y signal - ±0.5% for 1 to 30 MHz CBCR signal - ±0.5% for 0.5 to 15 MHz Low-pass attenuation - ≥ 20 dB (at 20 MHz) | | SD-SDI Input | Y signal - ±0.5% for 1 to 5.75 MHz CBCR signal - ±0.5% for 0.5 to 2.75 MHz Low-pass attenuation - ≥ 20 dB (at 3.8 MHz) | | Scale | Type - % scale, V scale, decimal scale, hexadecimal scale | | Display Colors | 7 colors | | Thumbnail Display | Picture, audio level meter | | | | Simultaneous Input Mode Display Format | Mixed, tiled | | Blanking Interval | Masked | | Pseudo-composite Display | Artificially converts a component signal into a composite signal | | Line Select | Displays the selected line | | Gain | x1, x5, IQ-MAG Variable gain - x0.2 to x2.0 | | Amplitude Accuracy | ±0.5 % | | Scale | Type - ITU-R BT.601, ITU-R BT.709, AUTO | | Setting the Color Bar Saturation | 75%, 100% | | Display Colors | 7 colors | | Thumbnail Display | Picture, audio level meter | | | | Simultaneous Input Mode Display Format | Tiled only | | Bar Display | Displays the peak levels of Y, R, G, B and composite | | Channel Assignment | RGB, GBR | | Scale | mV, % | | Error Level | Based on the gamut error, composite gamut error, and luminance error thresholds | | | | Simultaneous Input Mode Display Format | Mixed, tiled | | Quantization | 8 bits | | Color Temperature | 6500° K (6226.85° C), 9300 K (9026.85° C) | | Image Quality Adjustment | Brightness, contrast, chroma gain, RGB gain, RGB bias, aperture | | Display Sizes | Fit, full frame, real, 4:3 full screen | | Color | R, G, B can be turned off separately, Chroma off | | Frame Rate | The frame rate is converted and displayed using the internal sync signal | | Aspect Display Marker | HD-SDI - 4:3, 13:9, 14:9, 2.39:1 SD-SDI - 13:9, 14:9, 16:9 | | Line Select | Marks the selected line | | Gamut Error Display | Displays gamut error locations over the picture | | Thumbnail Display | Video signal waveform, audio level meter | | | | Function | Used to count the video, audio, and gamut errors | | Video Error Display | Counts CRC (HD-SDI) and EDH (SD-SDI) errors | | Audio Error Display | Counts embedded audio BCH (HD-SDI) and channel status bit CRC errors | | Gamut Error Display | Upper limit - 90.8 to 109.4% Lower limit - -7.2 to 6.1% | | Composite Gamut Error | Upper limit - 90.0 to 135% Lower limit - -40.0 to 20.0% | | Error Count | Up to 999,999 errors can be counted separately for video, audio, and gamut | | Count Period | One count per field | | Current Time Display | The time based on the internal clock | | Elapsed Time Display | The elapsed time since the error count was cleared | | | | Input Information Display | Input channel, ID, OFF | | Time Code | LTC, VITC, OFF | | Format Display | The format can be displayed when an SDI signal is detected | | | | Key LEDs | All the keys are dimly back-lit, and the selected key is lit more brightly | | | | Operating Temperature Range | 32 - 104° F (0 - 40° C) | | Power Requirements | 10 to 18 VDC, 46 W maximum | | Dimensions (W x H x D) | 8.5 x 6.88 x 3.38" (215 x 176 x 111 mm) | | Weight | 4.85 lb (2.2 kg) | | | | Box Dimensions (LxWxH) | 16.0 x 16.0 x 13.0" |
