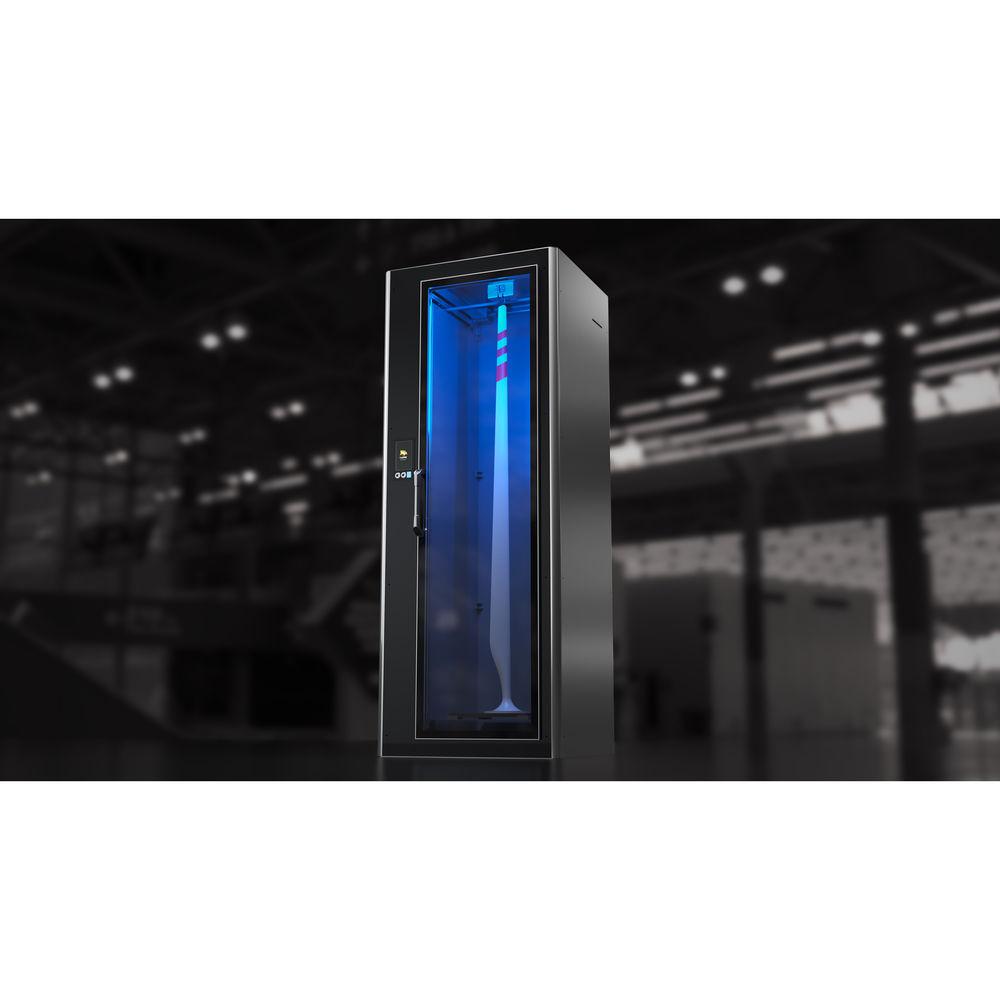

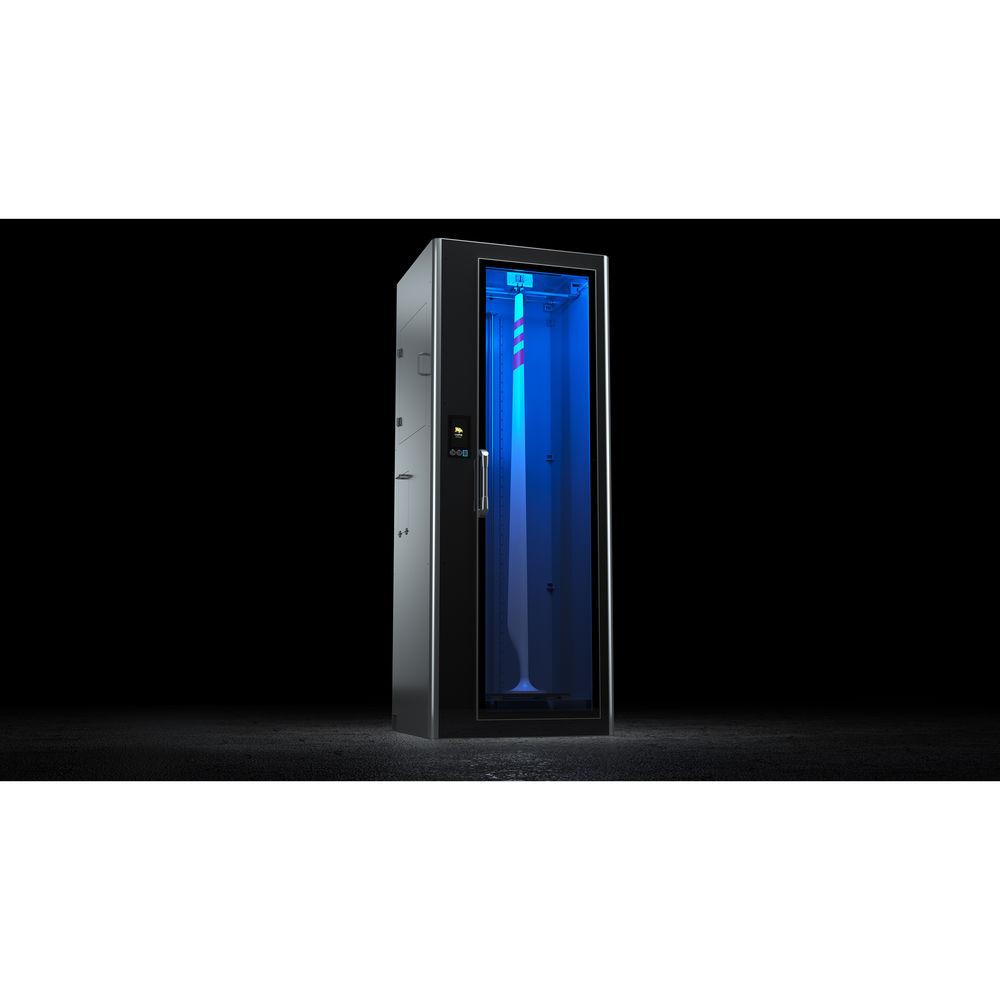

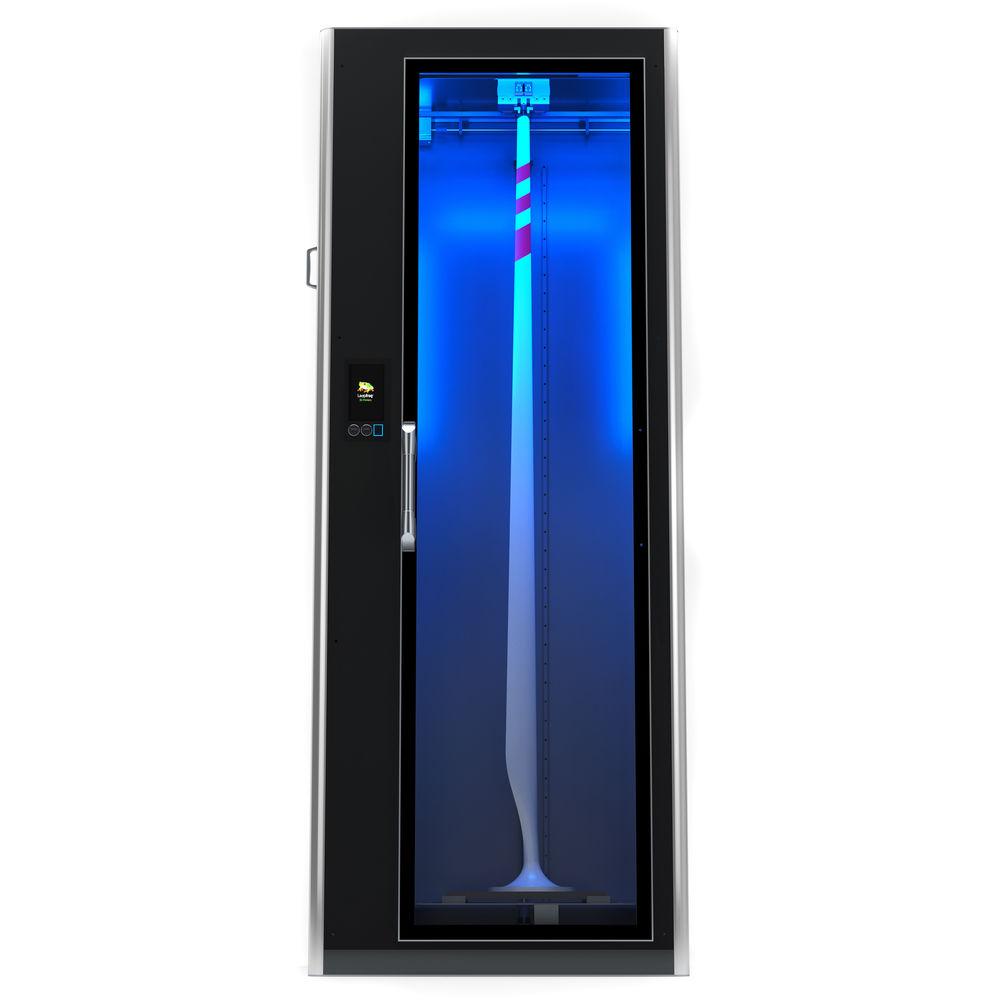

User Manual for Leapfrog XceL 3D Printer Click to enlarge the picture
Contents of the user manual for the Leapfrog XceL 3D Printer
- Product category: 3D Printers Leapfrog
- Brand: Leapfrog
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Leapfrog 3D Printers
 |
User manual for the Leapfrog XceL 3D Printer contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Leapfrog product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Leapfrog user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Leapfrog product will considerably shorten its lifespan!
|
Product description With a build volume of up to 610L, the XceL 3D Printer from Leapfrog can create life-size prints with high levels of precision. Designed for prototyping and production purposes, it features a single extruder nozzle, although a second optional extruder is available if a dual extrusion system is needed. When equipped with one extruder, the XceL can create objects with a build volume of up to 21.2 x 20.5 x 91.3". With two extruders, its build slightly decreases to 20.1 x 20.5 x 91.3". However, using two extruders allows for the use of two colors or types of filament in one print.
Leapfrog has fitted the XceL with a 1mm nozzle, which will print layer resolutions from 100 to 600 microns. However, when fitted with an optional 0.35mm nozzle, it can print down to 10 microns. Printing is done using 1.75mm PLA filaments, such as Leapfrog Maxx Essentials and Maxx Pro. The XceL is equipped with a closed print chamber, a heated granite composite bed with PerfectLevel automatic Z-axis leveling, an automatic loading function with filament detection, and a color LCD touchscreen. Users may print their compatible .gcode files via Ethernet and Wi-Fi connectivity. Included is a power cord, and protection is provided by a limited 1-year warranty. General Features - Smart 3D Printed Objects
- The patented PerfectLevel auto calibration system will save you time and money by efficiently calibrating the printer bed before each use. This way you can rely on your printer to be ready when necessary to create smart 3D printed objects. The XceL is also equipped with an auto-loading filament function with filament detection, which lets it know when to stop printing, allowing the filament to be swapped out as needed. Overall system control is executed using an integrated touch screen.
- 3D Printer Software
- Leapfrog has developed software to help improve the workflow of 3D printing on the XceL. The interface is user-friendly, as the software can be accessed via Wi-Fi on your phone, tablet, and Windows system. This means that you can upload your print to the XceL and start printing without leaving your seat.
With this software, you can monitor your 3D printed object and see in one glance how much filament remains, determine how much time is left, and pause or resume your print via Wi-Fi. Accessing g.code from one machine and moving it to another can all be done via any device with Wi-Fi and a browser.
The XceL is one of the largest industrial grade 3D printer models available on the market. With a large build volume of 610L and big 3D printed objects, the software has to run smoothly so that the results are as expected. - Large Build Volume
- The XceL is a large 3D printer with a build volume of up to 610L. When combined with its size, other features such as its 10-micron layer resolution, closed environment, and dual extruders present unique printing opportunities. However, as print sizes increase, so do print times, and Leapfrog has increased the filament flow of the Xcel. While a standard printer would have a flow of around 6mm3/s, the XceL has a flow of up to 45mm3/s.
In order to print so big, the XceL uses PLA filament and the Leapfrog software. As an industrial-grade printer, the Leapfrog XceL can be used for both prototyping and production and can withstand long working hours. - Closed Environment
- The XceL is a dual extrusion 3D printer with a closed environment. The design includes a sliding door that easily gives you access to your prints. A closed environment helps you get much higher quality in your prints by having a constant temperature during the entire process. Since print times do increase with larger prints, having a closed environment is important for consistency.
- Updates
- Automated updates for the XceL are available via the Internet. Connect the printer to your network and the latest version of the software will be downloaded and installed in a matter of minutes.
In the Box Leapfrog XceL 3D Printer Power Cord Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Leapfrog XceL 3D Printer in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLeapfrog XceL 3D Printer Specs | | | Build Volume | 21.2 x 20.5 x 91.3" / 53.8 x 52.07 x 231.9 cm (1 Extruder)
20.1 x 20.5 x 91.3" / 51.1 x 52.07 x 231.9 cm (2 Extruders) | | Number of Extruders | 2 | | Layer Resolution | XY Axis: 10 to 600 micron / 0.01 to 0.6 mm | | Supported Extruder Nozzle Diameter | 350 micron / 0.35 mm
1200 micron / 1.2 mm | | Extruder Nozzle Temperature | 527°F / 275°C | | Positioning Precision | XY Axis: 18 micron / 0.018 mm
Z Axis: 10 micron / 0.01 mm | | Filament Compatibility | 1.75 mm Diameter:
PLA | | | | Build Area Type | Enclosed | | Build Plate Features | Auto Leveling, Heated | | Build Plate Temperature | 176°F / 80°C | | Build Plate Composition | Granite Composite | | Filament Spool Storage | Internal | | 3D Scanner | No | | Monitoring Camera | Yes | | | | Wired Connections | 1 x RJ45 | | Wi-Fi | Yes | | Media Card Slots | None | | | | Supported Operating Systems | Windows (Version Unspecified) | | Supported 3D File Types | .gcode | | | | AC Input Power | 190 to 264 VAC, 50 / 60 Hz | | Dimensions (W x H x D) | 41 x 109 x 37" / 1041.4 x 2768.6 x 939.8 mm | | Weight | 441 lb / 200 kg | | Warranty Length | Limited 1-Year Warranty |
