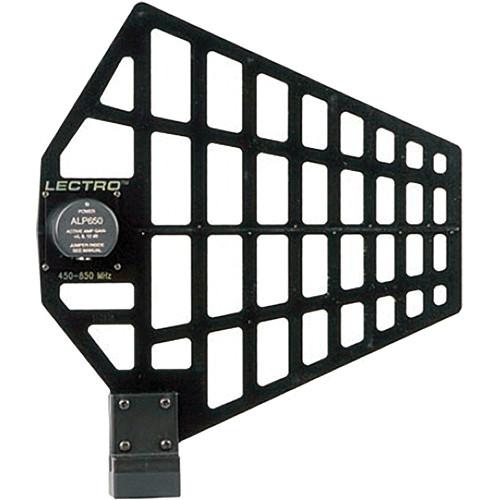

Product description The Lectrosonics ALP650L LPDA Shark Fin Antenna is designed for fixed installation indoors or out. The antenna provides enhanced reception at long distances and covers a frequency range of 450 to 850MHz for complete compatibility with all Lectrosonics wireless microphone and IFB systems.The ALP650L features an internal amplifier, which boosts antenna reception for enhanced results and range. The versatile mounting base accommodates tripod, pro-tripod and microphone stand mounting. The antenna is designed with 1/8" fiberglass for enhanced durability and light weight. The ALP650 requires external phantom power because of its internal amplifier. Phantom power may be provided with the Lectrosonics BiasT, UMC16B multi-coupler or Venue receiver. - Skeletal Frame
- The skeletal design greatly reduces wind loading during outdoor use.
- Internal Amplifier
- The versatile mounting base accommodates tripod, pro-tripod and microphone stand mounting.
- Enhanced Radio Frequency Range
- The antenna provides enhanced reception at long distances and covers a frequency range of 450 to 850MHz for complete compatibility with all Lectrosonics wireless microphone and IFB systems.
- Versatile Mounting
- The versatile mounting base accommodates tripod, pro-tripod and microphone stand mounting.
- Rugged Construction
- The antenna is designed with 1/8" fiberglass for enhanced durability and light weight.
In the Box Lectrosonics ALP650L LPDA Shark Fin Style Antenna with Internal RF Amplifier 3/8-16 Stud 1 Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Lectrosonics ALP650L LPDA Shark Fin Style Antenna with Internal RF Amplifier in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLectrosonics ALP650L/E Specs | Gain | +12dB with 0dB attenuator
+8dB with 4dB attenuator+5dB with 7dB attenuator | | Range | 450 to 850MHz | | Spectral Passband | 470.000 - 700.000MHz | | Third Order Intercept Point (3 OIP) | +27 dBm @ input (+41 dBm output) | | Connector | 50 Ohm BNC | | Power Requirements | 8V to 16V DC at the input jack (phantom power)
auto reset poly fuse protection circuit; constant power switching supply
• 8V DC (125 to 145 mA) • 12V DC (83 to 106 mA)
• 14.4V DC (69 to 89 mA) • 16V DC (60 to 80 mA) | | Weight | 12 oz (340.19g) | | Dimensions (HxDxW) | 12 x 10.5 x 1.5" (30.48 x 26.67 x 3.8cm) | | | | Package Weight | 0.9 lb | | Box Dimensions (LxWxH) | 11.7 x 10.4 x 0.6" |
