User Manual for Lectrosonics D4R - Digital 4-Channel Wireless Receiver Click to enlarge the picture
Contents of the user manual for the Lectrosonics D4R - Digital 4-Channel Wireless
- Product category: Wireless Receivers Lectrosonics
- Brand: Lectrosonics
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Lectrosonics Wireless Receivers
|
User manual for the Lectrosonics D4R - Digital 4-Channel Wireless contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Lectrosonics product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Lectrosonics user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Lectrosonics product will considerably shorten its lifespan!
|

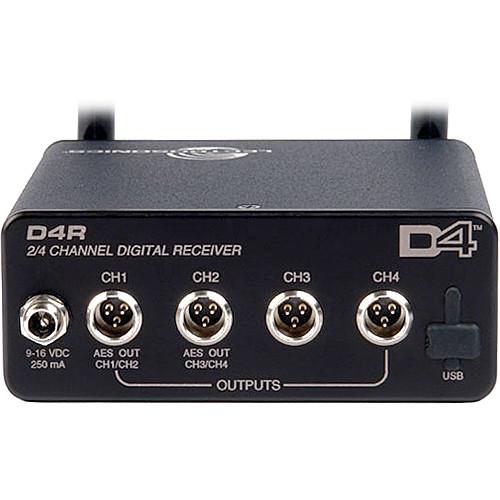

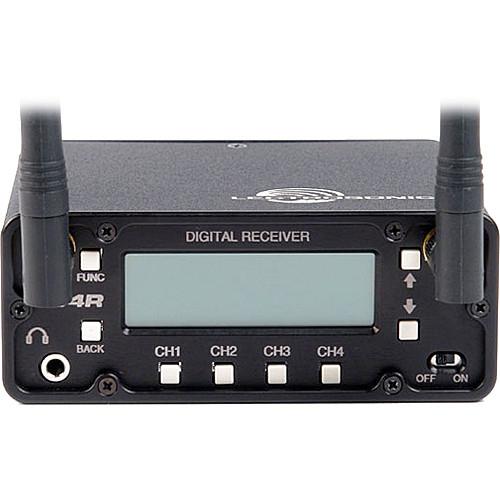

Product description The D4R from Lectrosonics is a 4-channel wireless receiver that operates on the DTV-free frequencies of 902-928 MHz. When used with a Lectrosonics D4T transmitter, the D4R receives either 2 or 4 channels of analog or digital audio. It gets power from an external source, such as a battery distribution system that would be used in a field production bag. The D4R is an extremely compact wireless solution that provides premium broadcast-quality audio and first-rate reliability. - DTV-free unlicensed ISM band 902-928 MHz
- Digital or analog outputs
- Channel pairing for stereo monitoring
In the Box Lectrosonics D4R - Digital 4-Channel Wireless Receiver 2 x Lectrosonics 21422 Center Fed, Half Wave Antennas Lectrosonics 21747 Right Angle, Unterminated, Locking 6-Foot Power Plug One Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Lectrosonics D4R - Digital 4-Channel Wireless Receiver in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLectrosonics D4R Specs Frequencies | 902 - 928 MHz Center Frequencies: 907.776, 912.387, 916.992, 923.904 | Audio Outputs | 4 x Line-Level Balanced TA3M Mini-XLR Outputs 1 x 3.5mm Headphone Output | Digital Connections | 2 x AES/EBU on Balanced TA3M Mini-XLR Outputs 1 x 4-Pin USB Port (for firmware updates) | Sampling Rate | 48 kHz, 24-bit | Latency | Digital In/Digital Out: Less than 1 mS Analog In/Analog Out: | Selectable Channels | 4 Digital 2 Digital, 2 Analog 4 Analog | Power Output | 200 mW | Dynamic Range | > 104 dB A-weighted | THD & Noise | < 0.05% (1 kHz @ -10 dBFS) | Frequency Response | 20 Hz - 20 kHz, +/- 0.5 dB | Power Requirements | 9 - 16 VDC | Power Consumption | 250 mA | Dimensions | 4 x 4 x 1.5" (101.6 x 101.6 x 38.1 mm) | Weight | 12.2 oz (346 g) | | Package Weight | 1.85 lb | Box Dimensions (LxWxH) | 13.3 x 5.4 x 3.4" |
