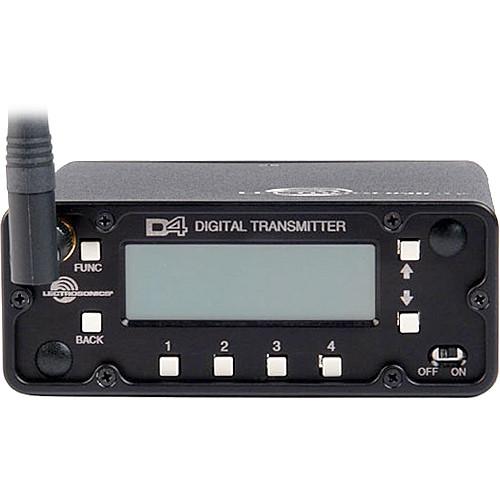

The D4T from Lectrosonics is a 4-channel wireless transmitter that operates on the DTV-free frequencies of 902-928 MHz. When used with a Lectrosonics D4R receiver, the D4T transmits either 2 or 4 channels of analog or digital audio. It gets power from an external source, such as a battery distribution system that would be used in a field production bag. The D4T is an extremely compact wireless solution that provides premium broadcast-quality audio and first-rate reliability.
  • DTV-free unlicensed ISM band 902-928 MHz
  • Digital or analog inputs
  • 24-bit, 48 kHz audio
  • 4 channel operation
  • Extended operating range
  • Channel pairing for stereo monitoring
  • Powered by 9 to 16 VDC
In the Box Lectrosonics D4T - Digital 4-Channel Wireless Transmitter
  • Lectrosonics 21422 Center Fed, Half Wave Antenna
  • Lectrosonics 21747 Right Angle, Unterminated, Locking 6-Foot Power Plug
  • One Year Warranty
  • Table of Contents




    Upload User Manual

    Have you got an user manual for the Lectrosonics D4T - Digital 4-Channel Wireless Transmitter in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:





    OR

    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: PDF)

    0%


    Technical parameters

    Lectrosonics D4 Specs

    Frequencies 902 - 928 MHz Center Frequencies:
    907.776, 912.387, 916.992, 923.904

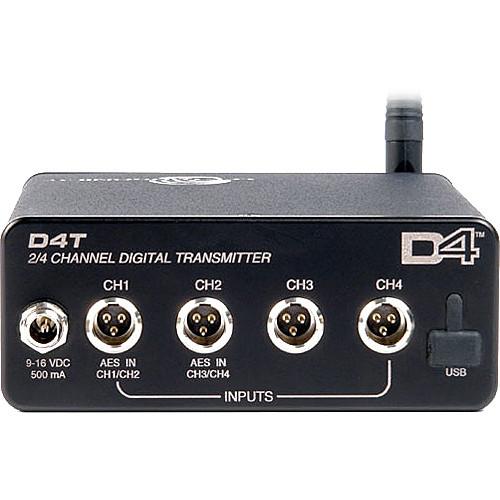

    Audio Inputs 4 x Line-Level Balanced TA3M Mini-XLR Inputs
    Simulated Transformer Balanced Inputs
    Clip Level Adjustable +0 to +20 dBu (or AES/EBU digital standard)
    Digital Connections 2 x AES/EBU on Balanced TA3M Mini-XLR Inputs
    1 x 4-Pin USB Port (for firmware updates)
    Sampling Rate 48 kHz, 24-bit
    Latency Digital In/Digital Out:
    Less than 1 mS Analog In/Analog Out:
    Selectable Channels 4 Digital
    2 Digital, 2 Analog
    4 Analog
    Power Output 200 mW
    Dynamic Range > 104 dB A-weighted
    THD & Noise < 0.05% (1 kHz @ -10 dBFS)
    Frequency Response 20 Hz - 20 kHz, +/- 0.5 dB
    Power Requirements 9 - 16 VDC
    Power Consumption 500 mA
    Dimensions 4 x 4 x 1.5" (101.6 x 101.6 x 38.1 mm)
    Weight 12 oz (339 g)
    Package Weight 2.0 lb
    Box Dimensions (LxWxH) 13.4 x 5.3 x 3.5"
