User Manual for Lectrosonics DCHT Wireless Digital Camera Hop Transmitter Click to enlarge the picture
Contents of the user manual for the Lectrosonics DCHT Wireless Digital Camera Hop
- Product category: Wireless Transmitters Lectrosonics
- Brand: Lectrosonics
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Lectrosonics Wireless Transmitters
 |
User manual for the Lectrosonics DCHT Wireless Digital Camera Hop contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Lectrosonics product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Lectrosonics user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Lectrosonics product will considerably shorten its lifespan!
|
Product description Hop to it with the New Lectrosonics Digital Camera Hop Transmitter Read More raqeesxteqczyyyvscxrydxzzccbas Designed for broadcast, film, and television production, the Lectrosonics DCHT is a wireless digital camera hop transmitter offering a reliable wireless connection between a bag- or cart-based audio system and cameras/recorders. This UHF transmitter tunes in coarse or fine increments from 470.1 to 607.95 MHz, and utilizes 256-bit encryption for secure signal transmission. With three selectable levels of RF power (10, 25, or 50mW) and a DSP-controlled input limiter, the DCHT delivers strong, clear, distortion-free audio. Also contributing to its solid sonic performance is its preamplifier, which accommodates lavalier/dynamic mics or line-level inputs, and provides up to 51 dB of gain in 1 dB steps. The TA6M input jack accepts two channels of analog mic-/line-level signal or a stereo AES3 digital feed via an array of cable adapters (available separately). The DCHT boasts up to five hours of battery life via two AA batteries (available separately) safely held in place by a latching aluminum battery door. External DC powering is possible through the LTBATELIM adapter (available separately). The DCHT's rugged housing is constructed from solid machined aluminum coated in an ultra-hard electroless nickel finish. A detachable wire belt clip allows the DCHT to be easily affixed for versatile positioning. - Tunes in coarse or fine steps across entire UHF frequency range from 470.1 to 607.95 MHz
- 256-bit encryption (AES 256-CTR) for applications with high-level security
- Selectable RF power at 10, 25, or 50mW

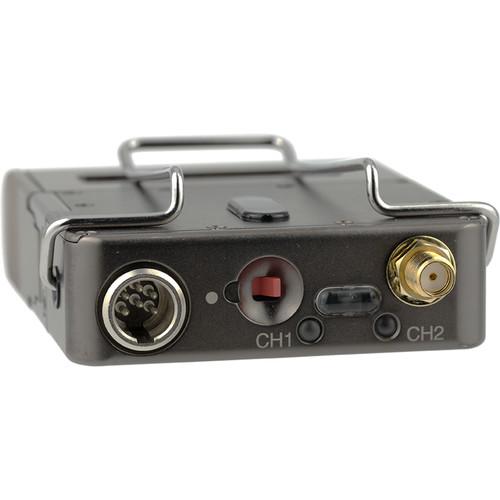

- TA6M jack accepts two mic- or line-level analog signals, or a 2-channel AES3 digital feed via a variety of adapter cables (available separately)
- Analog inputs can be linked for identical gain when used with a stereo source, or operate independently with individual settings
- Input gain is adjustable over a 51 dB range in 1 dB steps to allow an exact match to the input signal level, maximizing the dynamic range and signal-to-noise ratio
- Accommodates lavalier microphones, dynamic microphones, or line-level signals
- Side-panel USB port for easy firmware updates
- Compatible with Duet M2R receiver
- Third-generation digital architecture with high-efficiency digital circuitry yields extended operating time on two AA batteries (available separately)
- May be powered via an external DC power supply using the Lectrosonics LTBATELIM adapter (available separately), which replaces the battery door and provides a locking coaxial connector
- Programmable switch can be configured as a mute switch, a power on/off switch, or be bypassed
- Red/green LEDs provide audio level indications from -20 dB to the onset of limiting for each channel
- Solid machined aluminum housing finished with a dark, ultra-hard, electroless nickel finish
- Secure stainless spring-wire belt clip is easily removed and attached without tools (alternative spring-loaded belt clip available separately)
- Machined aluminum battery door is hinged to the housing, and latches securely to prevent accidental opening even if the DCHT is dropped

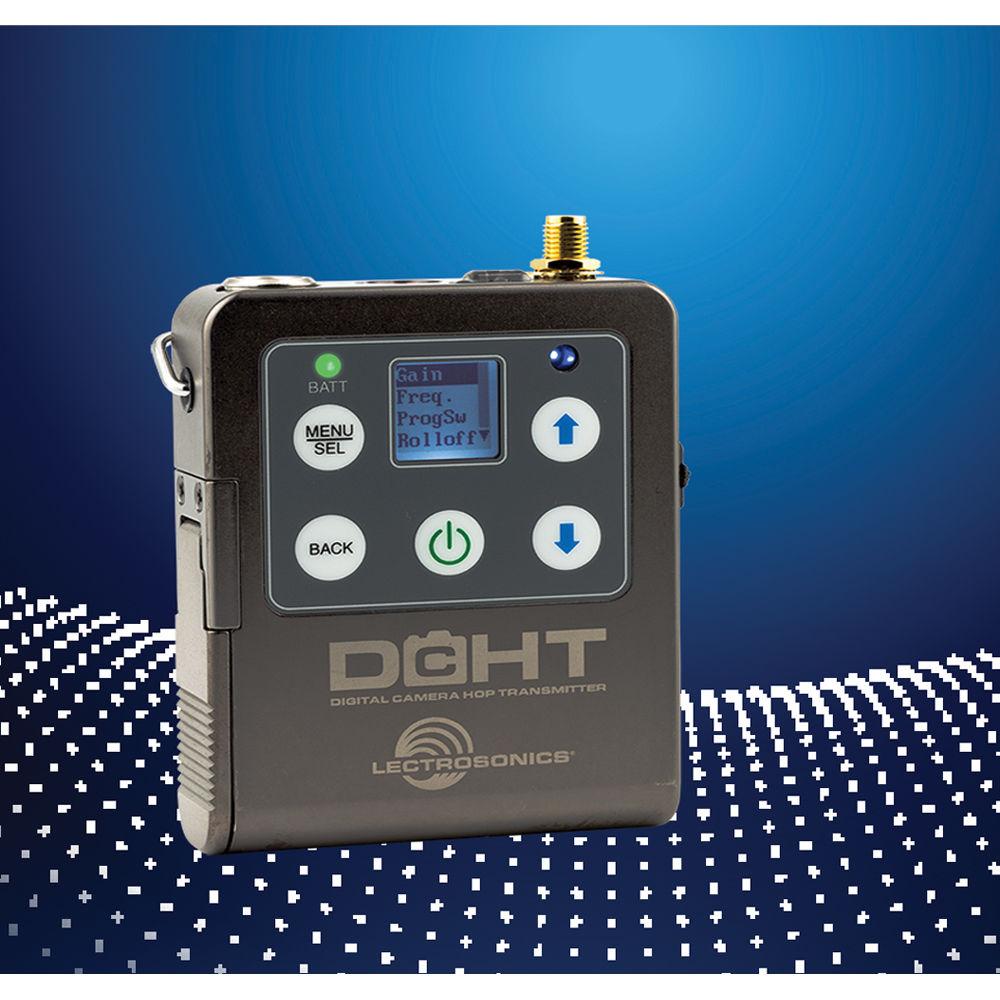

- Set up and adjustments are easily accessible through a backlit LCD, membrane switches, and an intuitive menu structure
In the Box Lectrosonics DCHT Wireless Digital Camera Hop Transmitter Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Lectrosonics DCHT Wireless Digital Camera Hop Transmitter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLectrosonics DCHT Specs | Operating Frequencies | UHF: 470.1 to 607.95 MHz | | Frequency Selection Steps | 25 kHz | | RF Power Output | 10, 25, or 50 mW (Selectable) | | Compatibility Modes | DCH (Digital Camera Hop) and Duet (IEM) | | Encryption | AES 256-CTR | | Frequency Stability |
