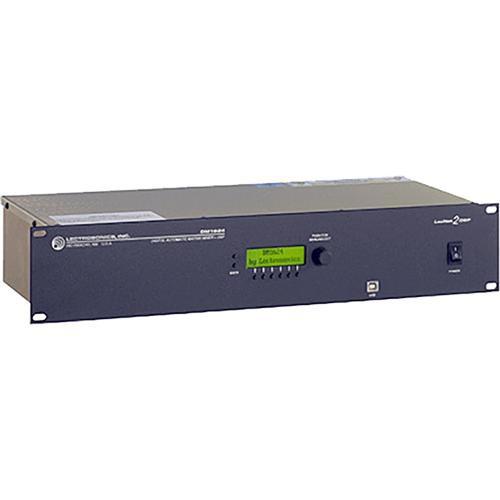

User Manual for Lectrosonics DM1624 - Digital Matrix Processor with Fan Click to enlarge the picture
Contents of the user manual for the Lectrosonics DM1624 - Digital Matrix Processor
- Product category: Install Sound Mixers Lectrosonics
- Brand: Lectrosonics
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Lectrosonics Install Sound Mixers
|
User manual for the Lectrosonics DM1624 - Digital Matrix Processor contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Lectrosonics product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Lectrosonics user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Lectrosonics product will considerably shorten its lifespan!
|
Product description The DM1624 from Lectrosonics is a digital audio processor, that shares many of the DSP functions common in the marketplace, but with a very comprehensive routing system that allows any input to be patched to any single or multiple outputs simultaneously. Primary applications include sound reinforcement, boardroom conferencing, houses of worship, courtrooms and hotels. Any place which requires the use of multiple microphones and loudspeakers. The unit provides 16 microphone/line inputs, 24 line outputs (8 switchable to microphone output) with each input possessing a fixed sequence of multiple DSP filters, ADFE (automatic digital feedback eliminator), a compressor and a digital delay. During the routing stage (the matrix mixer), gain can be adjusted and then each output provides a digital delay, multiple DSP filters and a compressor/limiter. Modules have extensive editing parameters, and can be switched in or out of the signal path as required. The DM1624 features an algorithm to help with the performance of multiple microphone sources. Each microphone input can be assigned to a different mode that will govern how that microphone behaves in respect to other open sources. Attenuation of various sources is done in an intelligent and seamless manner, eliminating gating and its detrimental effects. Further, since the processing happens on the output, each input can function differently at each destination. The unit can be programmed from the front-panel or via Windows software and a RS232 or USB equipped computer. Remote hardware control is also possible once the initial set-up is complete. Multiple units can be interfaced for greater system resources. Finally, all functions are available on all inputs and outputs without impacting DSP resources. Latency is minimal, even in multiple unit situations. - Digital matrix processor with 16 microphone/line inputs, 24 line outputs (8 switchable to microphone output)
- 16 x 24 with gain adjustable from -69dB to +20dB
- Microphone outputs can be used for connecting to a recording device
- Proportional gain auto mixing algorithm with "AutoSkew," a process that eliminates artifacts such as comb filtering and abrupt gating that occur with conventional automatic mixing schemes
- Auto mixing operates at the output of the matrix, with each input channel being able to participate differently in each output mix
- Each output has its own NOM (Number of Open Microphones) mixing bus
- 6 filter stages plus compressor, ADFE (Automatic Digital Feedback Elimination) and delay on each input
- 9 filter stages plus compressor, limiter and delay on each output
- 128 macros available for storing up to 64 commands per macro
- USB and RS-232 interfaces for setup and control
- Digital I/O ports for "daisy chaining" and to connect other LecNet 2 devices
- AMX and CRESTRON compatible
In the Box Lectrosonics DM1624 - Digital Matrix Processor with Fan AC Power Cable Software CD-ROM One (1) Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Lectrosonics DM1624 - Digital Matrix Processor with Fan in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLectrosonics DM1624 Specs | Frequency Response | 20Hz to 20kHz, +/-1dB | | Dynamic Range | Input: 102dB, unweighted (20Hz to 20kHz)
Output: 105dB, unweighted (20Hz to 20kHz) | | Inputs | 5-pin Phoenix connectors | | Outputs | 5-pin Phoenix connectors | | Input Impedance | 2.5kΩ | | Output Impedance | 50Ω differential line level only | | Maximum Input Level | +20dBu @ 0dB gain | | Maximum Output Level | +20dBu | | Sample Rate | 48kHz | | Phantom Power | +15VDC | | Crosstalk | Not specified by manufacturer | | THD + N | 0.02%, nominal input level | | Dimensions (WxDxH) | 19 x 7.5 x 3.5" (483 x 191 x 89mm) | | Weight | 5.4 lb (2.44kg ) | | Specialties | Matrix mixing allows "mix-minus" routing to reduce acoustic feedback and eliminate echoes caused by speaker/microphone coupling in teleconferencing applications | | | | Package Weight | 13.0 lb | | Box Dimensions (LxWxH) | 25.0 x 15.0 x 7.0" |
