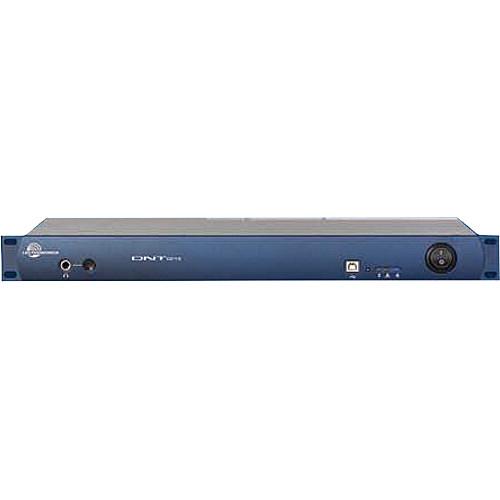

Product description The DNT0212 from Lectrosonics is a processor that subscribes to channels on a Dante network and delivers them to an internal digital matrix for automatic mixing and processing, and to Dante network transmit channels. In addition, two analog line level inputs are provided for use with local audio sources such as voice evacuation announcements.
The outputs of the matrix can be assigned to a Dante transmit channel, an analog output and/or routed back to an input to be further mixed and processed with another input channel or matrix mix. - Thirty-two inputs from Dante receive channels
- Two analog line level inputs
- Sixteen outputs to Dante transmit channels
- Eight line level analog outputs
- Four microphone/line level analog outputs
- Supports both switched and redundant modes in Dante operation
- Post-mixing signal processing on all inputs (analog and digital)
- Forty-eight independent automatic mixers with thirty-eight inputs per mixer and channel activity detectors
- Support for multi-level mixing - mixes can be looped back and used as mixer inputs
- Extensive signal processing including filters, delay and channel linking for dynamic processing (compressors, limiters)
- Gain smoothing to prevent transient noise during instantaneous level changes
- Four test signal generators available for system setup and testing
- Extensive macro command language
- Control interfaces via USB, RS-232, Ethernet and programmable logic I/O
- Rack mount or under table mount
In the Box Lectrosonics DNT0212 - Dante 2 In/12 Out Network Processor AC Power Cable Three (3) Year Limited Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Lectrosonics DNT0212 - Dante 2 In 12 Out Network Processor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLectrosonics DNT0212 Specs | Audio Inputs | (Balanced microphone/line level inputs with digitally programmable gain may be configured as unbalanced inputs)
Audio Input Channels
Digital: 32 Dante channels
Analog: 2 line level analog (for paging)
Gain: -20 dB to +20 dB
Impedance: 15kΩ differential, 3.75kΩ common
Maximum Analog Input Level: 20 dBu
Dynamic Range: 102 dB
THD + Noise: 0.01%
A-D Sampling Rate: 48 kHz, fixed | | Audio Outputs | Digital: 16 Dante transmit channels
Analog: 12 channels
Level: 0 dBu nominal
Impedance: <50Ω source to drive 600Ω minimum load
Channels 9~12 include 20 dB and 40 dB attenuators | | Dante Interface | Provides dual RJ-45 connectors on the rear panel and an Ethernet switch built into the processor
Supported Sampling Rate: 48 kHz
Data Rate LED: 100 Mbps/1 Gbps
Activity LED: Blinks when active
Modes of Operation
Switched mode using either connector
Redundant mode with primary and secondary networks using both connectors | | Network Connectivity | Dante interface and Ethernet control can be connected to the same network | | Filters | All filters have zero processing delay
EQ Stages: 4 per input channel | | Internal Signal Generator | Swept Sine
Modes: Single sweep, continuous sweep
Waveforms: Sawtooth (up or down), triangle
Sweep Rate: Linear, logarithmic
Parameters: Start freq, stop freq, level (dBu), sweep time (sec)
White Noise Parameter: Level (dBu)
Pink Noise Parameter: Level (dBu)
Tone (Sine Wave) Parameters: Level (dBu), frequency | | Filter Type | Low Pass
Butterworth 6, 12, 18, 24 dB/octave
Bessel 6, 12, 18, 24 dB/octave
Linkwitz-Riley 12, 24 dB/octave
Additional Parameters: Frequency (Hz)
High Pass
Butterworth 6, 12, 18, 24 dB/octave
Bessel 6, 12, 18, 24 dB/octave
Linkwitz-Riley 12, 24 dB/octave
Additional Parameters: Frequency (Hz)
Low Shelving
Butterworth 6, 12, 18, 24 dB/octave
Bessel 6, 12, 18, 24 dB/octave
Additional Parameters: Frequency (Hz), boost/cut (dB)
High Shelving
Butterworth 6, 12, 18, 24 dB/octave
Bessel 6, 12, 18, 24 dB/octave
Additional Parameters: Frequency (Hz), boost/cut (dB)
Peaking EQ Parametric
Parameters: Frequency (Hz), bandwidth (octave), boost/cut (dB) | | Compressor | Soft knee with RMS level detector eliminates need for separate attack and delay settings
0.1 ms increments
1 second maximum
Continuously adjustable ratio | | Power Requirements | 100~240 VAC, 50/60 Hz 20 W maximum consumption | | Dimensions (WxDxH) | 19 x 7.7 x 1.75" (483 x 196 x 44 mm) | | Weight | 5.3 lb (1.7 kg) | | | | Package Weight | 8.45 lb | | Box Dimensions (LxWxH) | 24.5 x 14.5 x 6.25" |
