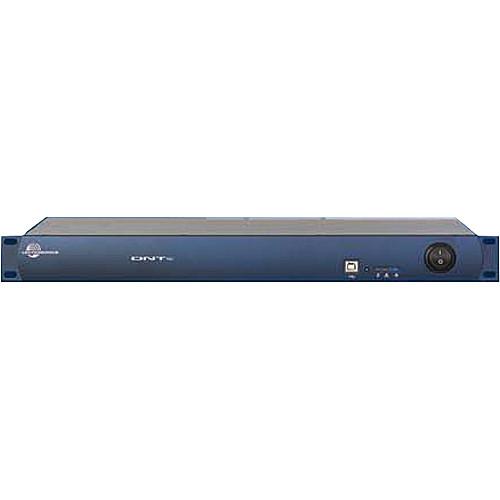

User Manual for Lectrosonics DNT16i - 16 Analog Input Dante Network Processor Click to enlarge the picture
Contents of the user manual for the Lectrosonics DNT16i - 16 Analog Input
- Product category: Networked Audio Systems Lectrosonics
- Brand: Lectrosonics
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Lectrosonics Networked Audio Systems
|
User manual for the Lectrosonics DNT16i - 16 Analog Input contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Lectrosonics product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Lectrosonics user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Lectrosonics product will considerably shorten its lifespan!
|
Product description The DNT16i from Lectrosonics is a processor that provides inputs into a Dante network from analog and digital signals. Each input provides extensive signal processing and routing to any one or all of forty-eight automatic mixers operating at the cross points of an internal digital matrix in the processor.
The outputs of the matrix can be assigned to a Dante transmit channel and/or routed back to an input to be further mixed with another input or matrix mix. - Sixteen microphone/line analog inputs with 48V phantom power and wide range gain control
- Sixteen Dante digital inputs
- Thirty-two Dante digital outputs
- Supports both switched and redundant modes in Dante operation
- Pre-mixing signal processing on all thirty-two inputs (analog and digital)
- Forty-eight independent automatic mixers with thirty-six inputs per mixer and channel activity detectors
- Support for multi-level mixing - mixes can be looped back and used as mixer inputs
- Extensive signal processing including filters, delay and channel linking for dynamic processing (compressors, limiters)
- Gain smoothing to prevent transient noise during instantaneous level changes
- Four test signal generators available for system setup and testing
- Extensive macro command language
- Control interfaces via USB, RS-232, Ethernet and programmable logic I/O
- Rack mount or under table mount
In the Box Lectrosonics DNT16i - 16 Analog Input Dante Network Processor AC Power Cable Three (3) Year Limited Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Lectrosonics DNT16i - 16 Analog Input Dante Network Processor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLectrosonics DNT16I Specs | Audio Inputs | (Balanced microphone/line level inputs with digitally programmable gain may be configured as unbalanced inputs)
Audio Input Channels
Analog: 16 mic/line level
Digital: 16 Dante channels
Gain
Analog: 0 dB to 56 dB, programmable in 8 dB steps (the analog gain is automatically set by selecting the input gain)
Digital (Dante): -70 dB to +20 dB
Performance
Impedance: 8kΩ differential mode, 2kΩ common mode
Maximum Analog Input Level: 20 dBu
Dynamic Range: 102 dB
EIN: -127 dBu (20 Hz to 20 kHz, unweighted)
THD + Noise: 0.01%
A-D Sampling Rate: 48 kHz, fixed | | Audio Outputs | Digital: 32 outputs delivered to the Dante network | | Dante Interface | Provides dual RJ-45 connectors on the rear panel and an Ethernet switch built into the processor
Supported Sampling Rate: 48 kHz
Data Rate LED: 100 Mbps/1 Gbps
Activity LED: Blinks when active
Modes of Operation
Switched mode using either connector
Redundant mode with primary and secondary networks using both connectors | | Network Connectivity | Dante interface and Ethernet control can be connected to the same network | | Filters | All filters have zero processing delay
Tone Control Stages: 4 per input channel
ADFE: 8 per input channel, configurable as static or dynamic | | Internal Signal Generator | Swept Sine
Modes: Single sweep, continuous sweep
Waveforms: Sawtooth (up or down), triangle
Sweep Rate: Linear, logarithmic
Parameters: Start freq, stop freq, level (dBu), sweep time (sec)
White Noise Parameter: Level (dBu)
Pink Noise Parameter: Level (dBu)
Tone (Sine Wave) Parameters: Level (dBu), frequency | | Filter Type | Low Pass
Butterworth 6, 12, 18, 24 dB/octave
Bessel 6, 12, 18, 24 dB/octave
Linkwitz-Riley 12, 24 dB/octave
Additional Parameters: Frequency (Hz)
High Pass
Butterworth 6, 12, 18, 24 dB/octave
Bessel 6, 12, 18, 24 dB/octave
Linkwitz-Riley 12, 24 dB/octave
Additional Parameters: Frequency (Hz)
Low Shelving
Butterworth 6, 12, 18, 24 dB/octave
Bessel 6, 12, 18, 24 dB/octave
Additional Parameters: Frequency (Hz), boost/cut (dB)
High Shelving
Butterworth 6, 12, 18, 24 dB/octave
Bessel 6, 12, 18, 24 dB/octave
Additional Parameters: Frequency (Hz), boost/cut (dB)
Peaking EQ Parametric
Parameters: Frequency (Hz), bandwidth (octave), boost/cut (dB) | | Compressor | Soft knee with RMS level detector eliminates need for separate attack and delay settings
0.1 ms increments
1 second maximum
Continuously adjustable ratio | | Power Requirements | 100~240 VAC, 50/60 Hz 20 W maximum consumption | | Dimensions (WxDxH) | 19 x 7.7 x 1.75" (483 x 196 x 44 mm) | | Weight | 5.3 lb (1.7 kg) | | | | Package Weight | 2.0 lb | | Box Dimensions (LxWxH) | 25.0 x 15.0 x 7.0" |
