User Manual for Lectrosonics DNT22 - Dante 2 In 2 Out Interface Click to enlarge the picture
Contents of the user manual for the Lectrosonics DNT22 - Dante 2 In
- Product category: Networked Audio Systems Lectrosonics
- Brand: Lectrosonics
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Lectrosonics Networked Audio Systems
|
User manual for the Lectrosonics DNT22 - Dante 2 In contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Lectrosonics product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Lectrosonics user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Lectrosonics product will considerably shorten its lifespan!
|

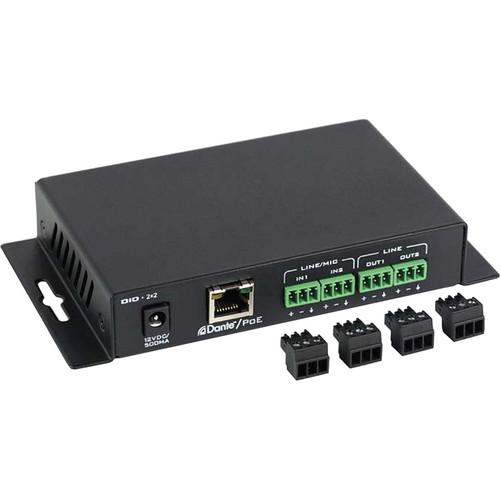

Product description The DNT22 from Lectrosonics is a two input, two output Dante-based interface, and a convenient way to add up to two channels of Dante audio to an existing Dante-based networked audio system. The unit's small form factor and PoE power capability make it easy to put Dante connectivity wherever it's needed without the need for costly and interference prone analog wiring. - Small form factor can be unobtrusively located near analog sources or sinks
- Dual power (DC or PoE) means the unit will work in systems with either standard or PoE Ethernet switches
- Three input gains accommodate common line levels, phantom power and dynamic microphones
- +24V Phantom power per channel - powers virtually all types of phantom powered microphones typically used in installed AV systems
- Two analog output gains to accommodate both consumer and pro line level requirements without overload
In the Box Lectrosonics DNT22 - Dante 2 In/2 Out Interface Three (3) Year Limited Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Lectrosonics DNT22 - Dante 2 In 2 Out Interface in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLectrosonics DNT22 Specs | Analog Input | Balanced and RF filtered 3-pin depluggable microphone/line | | Input Impedance | >1.8 kΩ @ any gain setting | | Maximum Input Level | +8 dBu @ 0.0 dB gain
-16 dBu @ +25 dB gain
-31 dBu @ +40 dB gain | | Input Gain | 0, +25, +40 dB, software selectable | | Analog Output | Balanced line level with automatic muting on loss of Dante signal | | Output Impedance | 200 Ω balanced, 100 Ω unbalanced | | Output Gain | 0.0 or +10 dB, software selectable | | Maximum Output Level | +12 dBu | | Noise | EIN: 115 dBu @ +40 dB gain
Output: <90 dBu @ 0.0 dB gain | | THD | <0.01% @ any gain, input signal 3 dB below maximum | | Phantom Power | +24V, software selectable | | Network Connection | Dante/PoE: 100 Base-T Dante Ethernet | | Compliance | PoE Class 0 802.3af PoE PD compliant | | Certification | FCC Part 15 Class A, CE | | Environmental | 32 to 104°F (0 to 40°C) | | Power Requirements | +12 VDC, 500 mA
DC power not required if used with a PoE Ethernet switch | | Dimensions (WxDxH) | 6.5 x 3.5 x 1.1" (165 x 89 x 28 mm) | | | | Package Weight | 1.2 lb | | Box Dimensions (LxWxH) | 9.8 x 5.2 x 1.9" |
