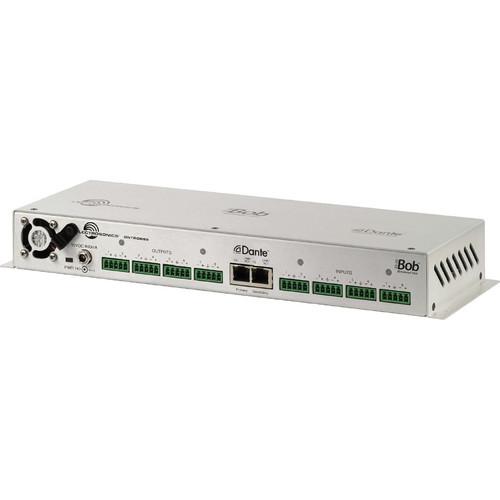

User Manual for Lectrosonics DNTBOB 88 - Dante Network Audio I O Interface Click to enlarge the picture
Contents of the user manual for the Lectrosonics DNTBOB 88 - Dante Network
- Product category: Networked Audio Systems Lectrosonics
- Brand: Lectrosonics
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Lectrosonics Networked Audio Systems
|
User manual for the Lectrosonics DNTBOB 88 - Dante Network contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Lectrosonics product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Lectrosonics user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Lectrosonics product will considerably shorten its lifespan!
|
Product description The DNTBOB 88 from Lectrasonics is a high quality, general purpose interface for transmitting and receiving line level analog audio signals via a Dante network. Analog inputs are converted to digital and appear on the network as transmit channels.
Audio on the analog outputs is available from other source that input to the transmit channels on the network. When connected to a network, each break out box will appear as a separate device in the Dante Controller software interface. - Eight balanced line level analog inputs
- Eight balanced line level analog outputs
- Dante primary and secondary ports
- Eight Dante network outputs
- Eight Dante network inputs
- Uses standard Ethernet hardware
- AVB (Audio Video Bridging) ready
In the Box Lectrosonics DNTBOB 88 - Dante Network Audio I/O Interface Three (3) Year Limited Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Lectrosonics DNTBOB 88 - Dante Network Audio I O Interface in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLectrosonics DNTBOB88 Specs | Sample Rates | 48 kHz | | Network Interface | Dante | | Analog Inputs | Type: Floating balanced
Level: 0.0 dBu, 20 dB headroom
Impedance: 15 kΩ (differential), 3.75 kΩ (common)
Connector: 4 x 5-pin Phoenix | | Analog Outputs | Type: Floating balanced
Level: 0.0 dBu, 20 dB headroom
Impedance: 50 kΩ
Connector: 4 x 5-pin Phoenix | | Latency | Analog In to Dante Network: 0.721 ms
Dante Network to Analog Out: Network latency + 0.521 ms | | THD + N | 0.02%, analog in to analog out | | Frequency Response | 20 Hz to 20 kHz, +/-0.1 dB | | Gain | 0.0 dB, +/-1.0 dB (input to output) | | Operating temperature | -36 to +90°F (-20 to +50°C) | | Power Requirements | 15 VDC, 800 mA | | Dimensions (WxDxH) | 13.4 x 4.6 x 1.7" (339.0 x 117.0 x 44.0 mm) | | Weight | 1.4 lb (0.6 kg) | | | | Package Weight | 3.9 lb | | Box Dimensions (LxWxH) | 14.0 x 10.6 x 6.2" |
