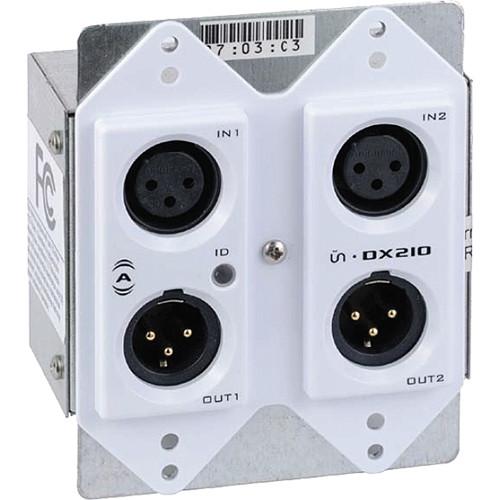

Product description The DNTWP Dante Audio Interface from Lectrasonics is a two input/two output wall box featuring two balanced microphone/line XLR inputs and two balanced XLR line outputs. All inputs and outputs can be used simultaneously and all audio channels are available separately.
The unit is designed to fit into most dual gang US junction boxes and is PoE enabled, so all connectivity (power and data) is provided by a single CAT-5 cable. The size and I/O density of the interface make it easy to put Dante connectivity wherever it's needed, eliminating costly and interference-prone analog wiring. - Two balanced XLR microphone/line inputs
- Two balanced XLR line outputs
- 802.3af compliant PoE powered to work with any compliant PoE network switch
- Three input gains accommodate common line levels, phantom power and dynamic microphones
- Input gains are adjustable via software on a per input basis
- +48V Phantom power per channel powers virtually all types of phantom powered microphones typically used in installed AV systems
- ID LED allows easy identification of which unDX2IO Attero Tech's Unify software is communicating with
In the Box Lectrosonics DNTWP Dante Audio Interface - Multi I/O Wall Box Three (3) Year Limited Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Lectrosonics DNTWP Dante Audio Interface - Multi I O Wall Box in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLectrosonics DNTWP Specs | Analog Inputs | 2 x 3-pin XLR, balanced and RF filtered | | Maximum Input Level | +8 dBu @ 0 dB gain
16 dBu @ +25 dB gain
31 dBu @ +40 dB gain | | Input Impedance | >1.8 kΩ at any gain setting | | Input Gain | 0.0 dB, +25 dB, +40 dB, software selectable | | EIN | 115 dBu (+40 dB gain) | | Analog Outputs | 2 x 3-pin XLR, balanced line level with automatic muting on loss of Dante signal | | Output Gain | 0.0 dB | | Output Noise | <90 dBu @ 0.0 dB gain | | Maximum Output Level | +12 dBu | | THD | 0.01% at any gain, input signal 3dB below maximum | | Phantom Power | +48V, software selectable | | PoE Class | Class 0 802.3af PoE PD compliant | | Certifications | FCC Part 15 Class A, CE (EN 60950 and EN 55022 Class A) | | Operating Temperature | 32~104°F (0~40°C) | | Dimensions (WxDxH) | 3.6 x 2.75 x 1.9" (91 x 70 x 48 mm) | | | | Package Weight | 1.05 lb | | Box Dimensions (LxWxH) | 5.9 x 5.9 x 3.9" |
